 DC SPUR GEARED MOTOR 86ZYT/118JB SPECS AND FEATURE: Motor Size: O.DGearbox Size:Sq.Reduction Ratio: 60 : 1Voltage: 90V DCRated Current:Rated Speed: 30RPMRated Torque: 25.5N.mOperation Mode S1

 Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 45mm; DC motor:45mmNominal voltage12V/24V DC or customizedGear ratio 1:3.71 ~1:369No load current0.22A; 0.30ANominal current1.0A; 1.50ANo load speed3000rpm; 4000rpmNominal speed2400rpm; 3200rpmPermissible load range1.0N.m ~ 10.0N.m for S1 duty cycleNominal power15W; 23WIP ratingup to IP68

Motor typeBrushless DC motorGearbox typePlanetary DiameterGearbox: 56mm; DC motor: 57mmNominal voltage12V/24V DC or customizedGear ratio 1:3.6~1: 326No load current200mA;400mANominal current1.2A;2.0ANo load speed2000rpm;3000rpmNominal speed1300rpm;2250rpmPermissible load range2N.m-30N.m for S1 duty cycleRated power10W;25W

DC RIGHT ANGLE GEARMOTOR 90ZY-180WJ TYPICAL SPECS.:· Voltage 12V ~ 48V DC or 110V ~ 400V AC· Motor Power 300W· Rated Torque 482N.m· Rated Speed 1.5RPM· Gearbox Ratio 729/1

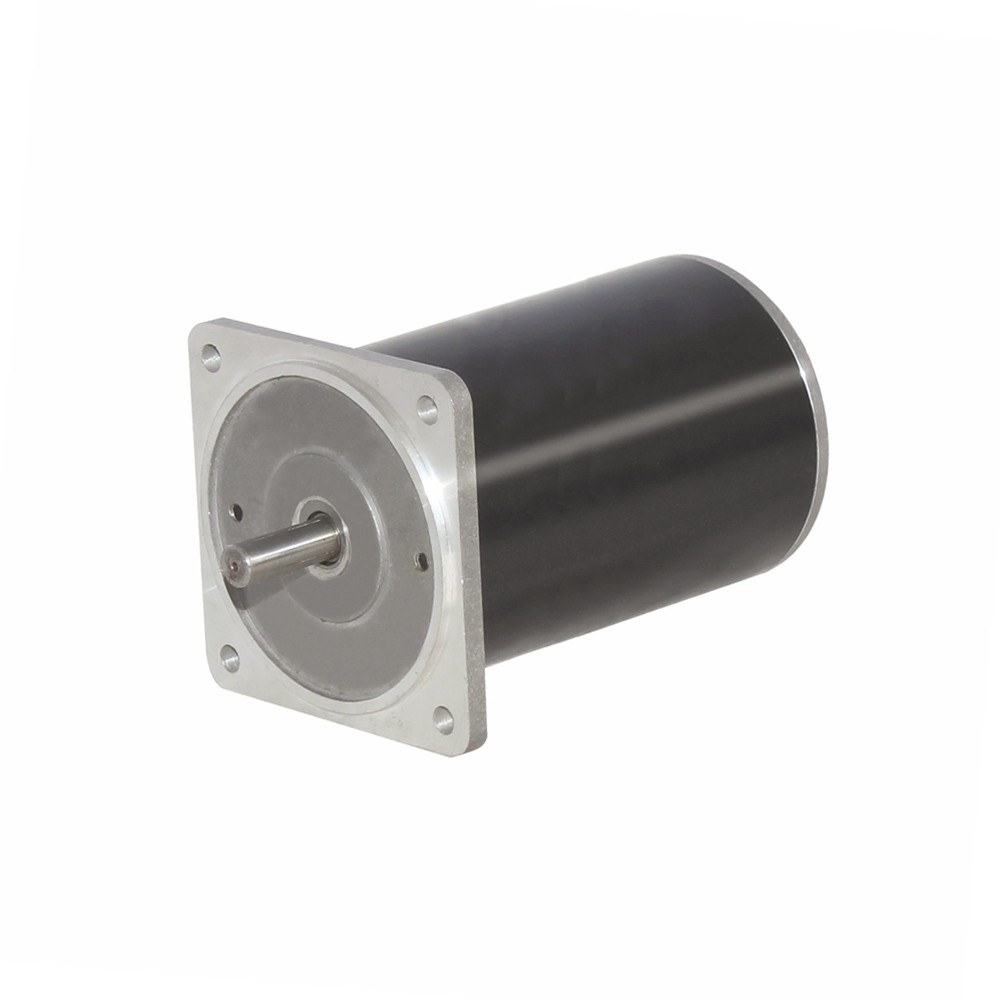

83ZY DC BRUSH MOTOR GENERAL SPECS.·  Motor OD: 82·  Voltage: 12V DC, 24V DC, 48V DC, 110V DC, 300V DC·  Power: 45W ~ 600W·  Output Speed: 750 ~ 9000RPM·  Without Gearbox·  Customized shaft & front cover available upon request83ZY DC BRUSH MOTOR TYPICAL SPECS.Model No.VoltageRated PowerRated SpeedRated TorqueRated CurrentNo Load SpeedLengthUnitsVWrpmmN.mArpmmm83ZY12-77127725003004.6300012583ZY12-18512185250072020.0300016583ZY12-45012450600072061.0710018083ZY24-25024250370066013.5440016083ZY36-47036470900050017.013000160

DC RIGHT ANGLE GEAR MOTOR 90ZY200-RV040i50 SPECS & FEATURE·  90mm OD / 200mm Body Length DC Brushed Motor·  NMRV Series Gearboxes·  Voltage 12 V DC·  Rated Torque 40N.m·  Rated Speed 30RPM·  Gear Ratio 50:1·  Operation Model S1·  Max. Efficiency 42%

Motor typeRare earth magnet DC motor Gearbox typePlanetary DiameterGearbox: 45mm; DC motor:45mmNominal voltage12V/24V DC or customizedGear ratio 1:3.71 ~1:369No load current0.18A; 0.25A; 0.30ANominal current0.5A; 1.20A; 2.0ANo load speed2000rpm; 3000rpm; 4000rpmNominal speed1600rpm; 2400rpm; 3200rpmPermissible load range1.0N.m ~ 10.0N.m for S1 duty cycleNominal power7W; 16W; 30WIP ratingup to IP68

Motor typeBrushless DC motorGearbox typePlanetary DiameterGearbox: 56mm; DC motor: 57mmNominal voltage12V/24V DC or customizedGear ratio 1:3.6~1: 76No load current400mA;450mANominal current2.8A;4.0ANo load speed2000rpm;3000rpmNominal speed1200rpm;2000rpmPermissible load range2N.m-30N.m for S1 duty cycleRated power40W;60W

84ZY DC BRUSH MOTOR TYPICAL SPECS.:· Voltage 48V DC· Rated Output Power 400W· Rated Output Speed 3400RPM· Rated Output Torque 1.20N.m· Other Performance, Custom Shaft & Front Cover Available Upon Request
