Brushless DC Tarp Gear Motors w/Chrome CoverBLDC Tarp Motors CANVAS-TOP TRUCK BRUSHLESS DC MOTORSDump Truck Tarp Motor / Canvas Engine ( Tipper Sheeting Motor, Dura-Torque Gearmotor ), fits most automatic tarps systems.TARP MOTOR 80ZWN-12/JW-7 SPECS AND FEATURE (GEAR RATIO 60:1):3 years warrantyHi-torque, direct drive 12VDC (or 24VDC) motor (output torque 600 in-lbs)60:1 gear ratio.60 RPM (+/-6RPM)Power 600W ( L=214.5mm ) or 900W ( L=218.5mm, Model 80ZWNS-12/JW-7 )Waterproof IP67Epoxy sealed gearbox maintains lubrication.3-1/8" x 3/4" extended output shaft fits wide range of tarp systems.Sealed drive shaft and encased bearing prevents contamination.Chrome/plastic cover and fasteners included.100% tested for quality control.BRUSHLESS DC TARP MOTOR 80ZWN-12/JW-7 SPECS AND FEATURE (GEAR RATIO 90:1):3 years warrantyHi-torque, direct drive 12VDC (or 24VDC) motor (output torque 800 in-lbs)90:1 gear ratio.40 RPM (+/-5RPM)Power 600W ( L=214.5mm ) or 900W ( L=218.5mm, Model 80ZWNS-12/JW-7 )Waterproof IP67Epoxy sealed gearbox maintains lubrication.3-1/8" x 3/4" extended output shaft fits wide range of tarp systems.Sealed drive shaft and encased bearing prevents contamination.Chrome/plastic cover and fasteners included.100% tested for quality control.Replaces Aero Power Plus, Donovan 1704878, 1800716, 1801965*, 1802061, 1802066, Roll-Rite #1030/1031, US Tarp #13732, 13957, 15275, 15938, 15364, 13655; Pulltarps 517-0906/517-0909; SHUR-CO 1703823; SuperWinch 90-33319/90-33295; Tarps and Beyond 1000XT/2000XT; Buyers Products 5543965/5541065, TSI Apache, Tomahawk, Enforcer.

Brushless and Brushed DC Parallel Shaft Gear Motor Brushless DC Spur Gear Motor / BL DC Gear MotorModel:  80ZWN47-2428/80CJB136.1K15 with inner hall sensorTechnical pecs.: Only motor:Voltage: 24V DCNo-load speed 2800rpmNo-load current 0,6ARated speed 2200rpmRated power 45WRated torque 0.194N.mGear motor:Gear ratio 1:136.1 Rated torque 19.2N.mRated speed 16.2rpmBack lash 0.5°Max. radial load 1500NMax. axial load 500NNoise @ no-load: 0.5m distance with 60dB. Optional components: speed controllers/encoder/brake/ cable connector CE, UKCA, Reach and RoHS approval Customized shaft & flange dimensions and technical specs. are available upon requested.

IP55 80ZY140-98JB12.308 HOLLOW SHAFT PARALLEL SHAFT GEAR MOTOR TYPICAL SPECS.:Voltage 120V DCRated 3.2N.m @ 1.4 Amps @ 180rpmWithout / With A Power-Off Brake / EncoderGearbox Ratio 12.308/1Protection Class IP55 Other Ratios Available Upon Request

1. Voltage: 12 ~ 60VDC2. Gear Ratio: 18:1, 36:13. DC Motor Available ( OD ): 60mm, 52mm, F45mm4. With 2 Hall Sensors5. Reach, CE, RoHS compliance6. Application: Table Lift, Furniture, Others7. Solid Shaft Available Upon Request DC RIGHT ANGLE GEAR MOTOR F45ZY-23JW SPECS AND FEATURE:·        Voltage 29V DC·        No-Load Speed 100rpm·        Max. Efficiency 38.3%·        Max. Efficiency Point 17.13Kg.cm@83rpm·        Stall Torque after Gearbox 100.79Kg.cm ( Stall Current 6.60A )·        Gear Ratio 36/1

Sweeper DC Spur Gear Motor, Floor cleaning machine DC Gear Motor, Floor scrubber DC Gear MotorDC  PARALLEL SHAFT GEARED MOTOR 114ZY-134JB SPECS AND FEATURE:Motor Size 114mm ODPower 200W ~ 1000W ( L=154mm ~ 230mm )Voltage 24V DC ( or 12V, 36V )Rated Speed 100 ~ 400RPMGear Ratio 10/1 Duty Cycle: Continuous

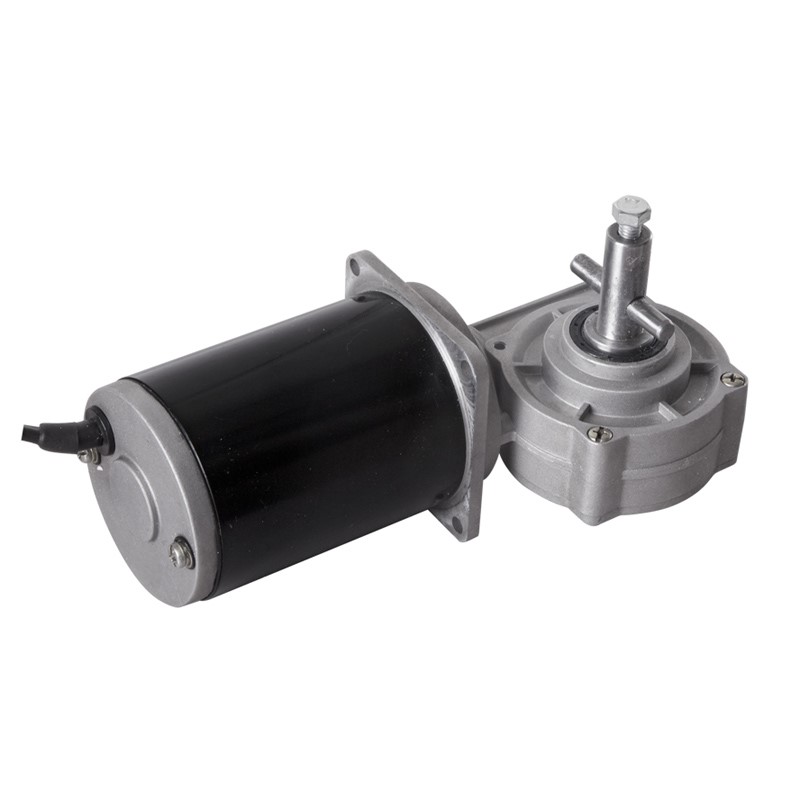

Motor typePermanent magnet DC MotorGearbox typeWorm/Right angleSizeDC motor:63mm,Gear motor:63mmNo-load Current0.32A;0.40ANominal voltage12V/24V or CustomizedGear ratio 1:10;1:15;1:30;1:50Nominal speed1550rpm;2500rpmPermissible load rangeUp to 8N.m for S1 duty cycleNominal power20W;30W

DC RIGHT ANGLE GEAR MOTOR 80ZY112-3644 SPECS AND FEATURE: Motor Size 80mm ODGearmotor Output Power 100W Voltage 36V DC ( or 12V, 24V )Rated Speed 100RPMRated Torque 9.55N.m Gear Ratio 35/1Duty Cycle: Continuous

Brushed DC In Line Gear Motor / Permanent Magnet DC Gearmotors / PMDC Gearmotors / DC Spur Gearmotors / Compact Size High Torque Parallel Shaft DC Gear MotorsModel: 40ZY-176JBVoltage: 12V DCRated Speed: 5rpmRated Torque: 68N.mGear Ratio: 912/1Operation Mode: S2

Motor typeNema 8 Hybrid Square Stepper MotorGearbox typePlanetary Phase2Step Angle1.8ºStep Angle Accuracy±5% (full step, no load)Gear ratio 1:3.71 ~1:369Permissible load range0.6N.m ~ 2N.m for S1 duty cycleTemperature Rise80℃ Max. (rated current, 2 phase on)Ambient Temperature-20℃ ~+50℃Insulation Resistance100MΩ Min., 500V DCDielectric Strength500V AC for one minuteIP ratingup to IP68

Motor typeMicro Brush commutated DC motor Gearbox typeSpurDiameterGearbox: 37mm; DC motor:33mmNominal voltage12V/24V DC or customizedGear ratio 1:18 ~1:3000No load current40mA; 20mANo load speed3000rpmNominal current100mA; 80mANominal speed2300rpmPermissible load rangeup to 0.60N.m for S1 duty cycleNominal power0.59WIP ratingup to IP68

Motor typeBrush commutated permanent magnet DC motorOptional gearbox typePlanetary/Spur/Worm/Right Angle Diameter38mmLength 63mmNominal voltage12V/24V DC or customizedNo load current160mA; 220mANo load speed3000rpm; 4000rpmNorminal current0.35A; 0.60ANominal speed2400rpm; 3200rpmNominal torque15mN.m; 20mN.m; Nominal power3.8W; 6.5WIP ratingup to IP68
