Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 56mm; DC motor: 60mmNominal voltage12V/24V DC or customizedGear ratio 1:3.6 ~1:234No load current0.25A; 0.35A; 0.50ANominal current1.80A; 2.20A; 6.0ANo load speed2000rpm; 3000rpm; 5000rpmNominal speed1600rpm; 2400rpm; 4000rpmPermissible load range2.0N.m ~ 30.0N.m for S1 duty cycleNominal power30W; 45W; 90WIP ratingup to IP68

Reduction ratio2241841843131121843131Length ( L )      mm29.529.529.525.725.725.729.525.725.7Voltage          VDC121212121212242424No-load speed  RPM10154015032245020120150Rated speed  RPM710.5281052253151484105Rated torque  kg.cm2026.449.38.58.64.0121.611.5Rated Current   A0.641.025.322.804.302.890.930.931.48

Motor typeBrush commutated DC motor Gearbox typeSpurSizeGearbox: 70mm; DC motor:60mmNominal voltage12V/24V DC or customizedGear ratio 1:3 ~1:150No load current0.30A; 0.40A; 0.25A; 0.35ANo load speed2000rpm; 3000rpmNominal current0.80A; 1.20A; 1.80A; 2.20ANominal speed1600rpm; 2400rpmPermissible load rangeup to 8.0N.m for S1 duty cycleNominal power8.0W; 17.0W; 30.0W; 45.0WIP ratingup to IP68

Motor typeBrushless DC motorGearbox typeSpurPole4Phase3DiameterGearbox: 37mm; DC motor: 36mmNominal voltage12V/24V DC or customizedGear ratio 1:6 ~1: 250No load current200mA;400mANominal current550mA;850mANo load speed4000rpmNominal speed3000rpmPermissible load range0.6N.m for S1 duty cycleDriverBuilt-in driverRated power4.7W;6.3W

Motor typeNema 23 Hybrid Square Stepper MotorGearbox typePlanetary Phase2Step Angle1.8º or 0.9º or 3.6ºStep Angle Accuracy±5% (full step, no load)Gear ratio 1:3.82 ~1:346Permissible load range9N.m ~ 30N.m for S1 duty cycleTemperature Rise80℃ Max. (rated current, 2 phase on)Ambient Temperature-20℃ ~+50℃Insulation Resistance100MΩ Min., 500V DCDielectric Strength500V AC for one minuteIP ratingup to IP68

Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 32mm; DC motor:31mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1:354No load current120mA; 150mANominal current660mA; 800mANo load speed5000rpm; 6000rpmNominal speed3500rpm; 3600rpmPermissible load range0.3N.m ~ 3.0N.m for S1 duty cycleNominal power5.5W; 8.3WIP ratingup to IP68

Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 56mm; DC motor: 63mmNominal voltage12V/24V DC or customizedGear ratio 1:3.6 ~1:168No load current0.50A; 0.80A; 1.20ANominal current4.60A; 6.0A; 9.0ANo load speed3000rpm; 3500rpm; 4000rpmNominal speed2500rpm; 2800rpm; 3200rpmPermissible load range2.0N.m ~ 30.0N.m for S1 duty cycleNominal power65W; 95W; 150WIP ratingup to IP68

Reduction ratio81.381.381.3179179179Length ( L )       mm414141242424Voltage             VDC122424121224No-load speed  RPM404060304040Rated speed  RPM282842212828Rated torque  kg.cm4.310.210.15.13.11.0Rated Current   A0.520.500.620.320.350.38

Motor typeBrush commutated DC motor Gearbox typeSpurSizeGearbox: 80mm; DC motor:71mmNominal voltage12V/24V DC or customizedGear ratio 1:3 ~1:150No load current0.40A; 0.50ANo load speed2000rpm; 3000rpmNominal current2.40A; 3.50ANominal speed1600rpm; 2400rpmPermissible load rangeup to 10.0N.m for S1 duty cycleNominal power33.0W; 59.0WIP ratingup to IP68

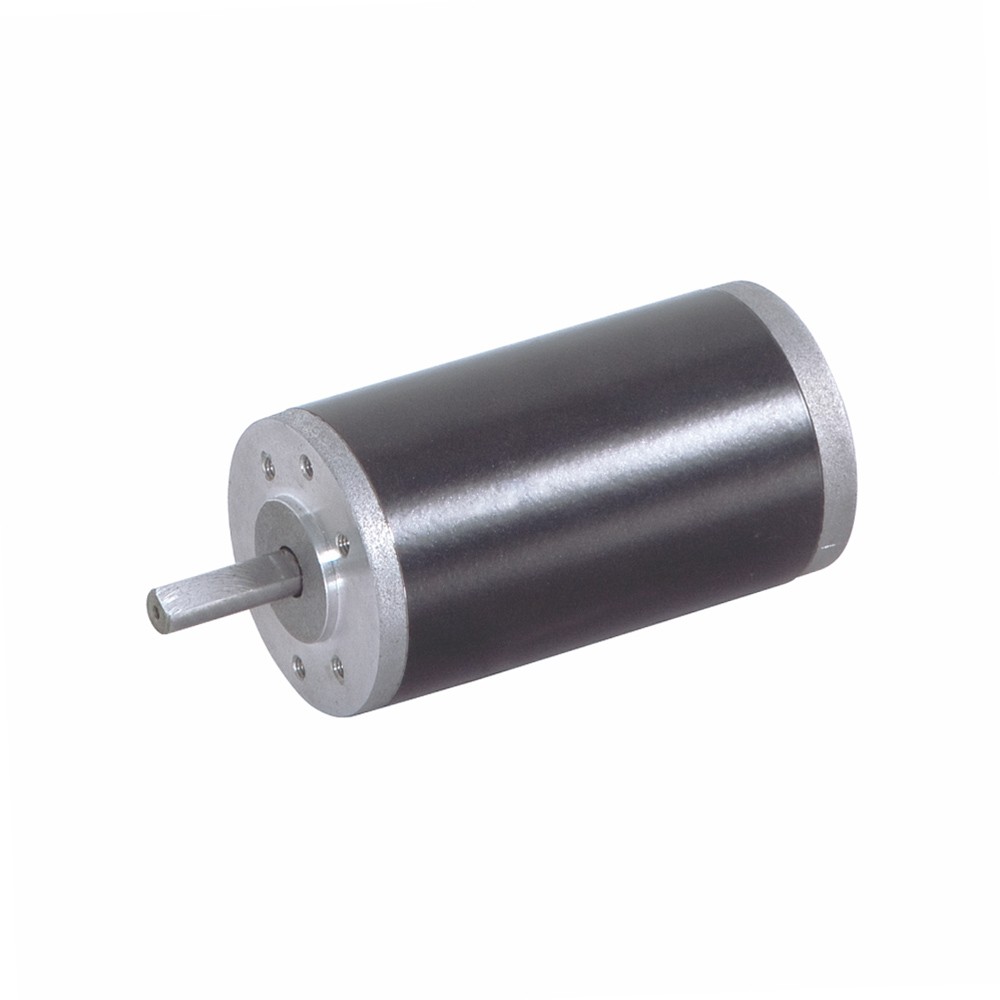

Motor typeBrush commutated permanent magnet DC motorOptional gearbox typePlanetary/Spur/Worm/Right Angle Diameter60mmLength 75mmNominal voltage12V/24V DC or customizedNo load current0.30A; 0.40A; 0.50A; No load speed2000rpm; 3000rpm;4000rpmNorminal current0.80A; 1.20A; 2.20ANominal speed1600rpm; 2400rpm; 3200rpmNominal torque50mN.m; 70mN.m; 90mN.m; Nominal power8W; 17W; 30WIP ratingup to IP68

Motor typeBrush commutated permanent magnet DC motorOptional gearbox typePlanetary/Spur/Worm/Right Angle Diameter60mmLength 95mmNominal voltage12V/24V DC or customizedNo load current0.40A; 0.50A; No load speed2000rpm; 3000rpmNorminal current1.80A; 3.0ANominal speed1600rpm; 2400rpmNominal torque150mN.m; 180mN.mNominal power25W; 40WIP ratingup to IP68

  L2=65MM   L2=156MM
