PLANETARY GEARHEAD CODE16JX, 22JX, 24JX, 28JX, 30JX, 32JX, 36JX, 40JX, 42JX, 45JX, 48JX, 52JX, 52JXM, 56JX, 60JX, 72JX, 80JXZ, 82JX, 82JXZ, 92JX, 110JX, 120JXGearhead Size: Outer diameter 16~ 120mm MOTOR TYPEBrushed DC Motors, AC Motors, Brushless DC Motors, Stepping Motors DC MOTORS / BRUSHED DC MOTORS / PMDC MOTORS / PERMANENT MAGNET DC MOTORSVoltage: 6V ~ 400V DCSpeed: 1,000rpm ~ 12,000rpmPower up to 3000WFrame Types (OD): 16ZY, 22ZY, 24ZY, 28ZY, 31ZY, 35ZY, 36ZY, 38ZY, 40ZY, 42ZY, 45ZY, 52ZY, 55ZY, 60ZY, 63ZY, 71ZY, 76ZY, 80ZY, 84ZY, 90ZY, 96ZY, 104ZY, 110ZYT, 118ZY, 130ZYT, 160ZYTOPTIONAL: ENCODER / BRAKE / CONNECTORIP CLASS: IP00, IP40, IP44, IP54, IP55, IP65, IP67 or IP68

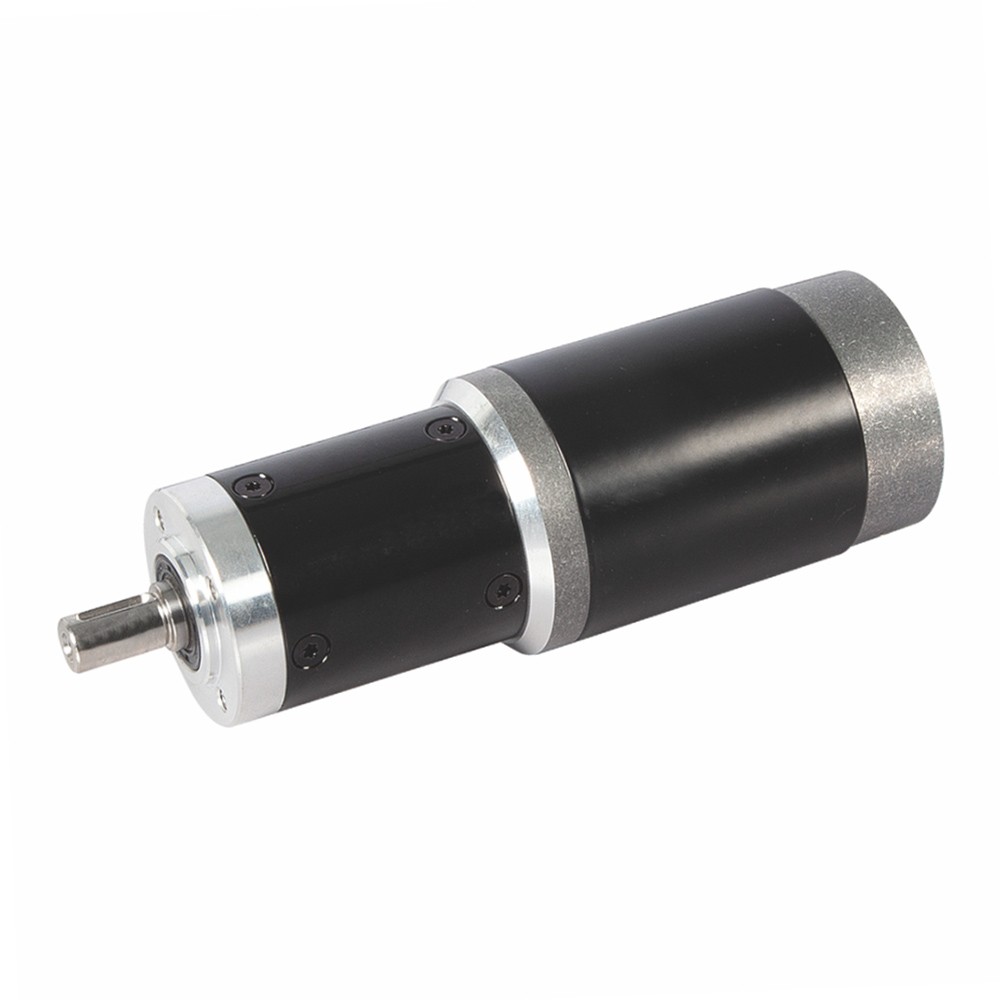

Motor   typeBrush   commutated DC motor Gearbox typePlanetary DiameterGearbox: 52mm; DC   motor:52mmNominal   voltage12V/24V DC or   customizedGear   ratio 1:4.5 ~1:312No load   current0.35A; 0.42ANominal   current1.50A; 2.0ANo load speed3000rpm; 4000rpmNominal speed2400rpm; 3200rpmPermissible   load range2.0N.m ~ 30.0N.m for   S1 duty cycleNominal power18W; 27WIP ratingup to IP68

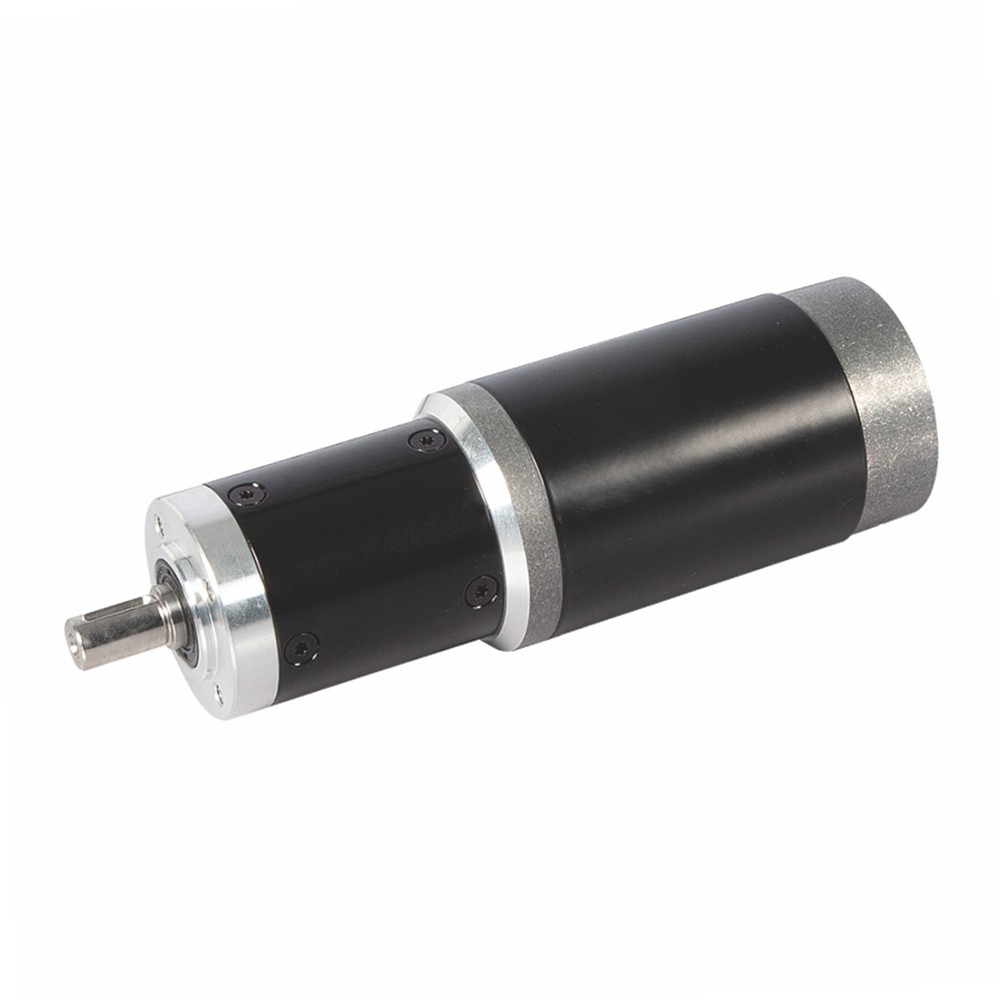

Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 52mm; DC motor:52mmNominal voltage12V/24V DC or customizedGear ratio 1:4.5 ~1:312No load current0.20A; 0.30A; 0.40ANominal current1.20A; 1.80A; 3.00ANo load speed2000rpm; 3000rpm; 4000rpmNominal speed1600rpm; 2400rpm; 3200rpmPermissible load range2.0N.m ~ 30.0N.m for S1 duty cycleNominal power15W; 25W; 40WIP ratingup to IP68

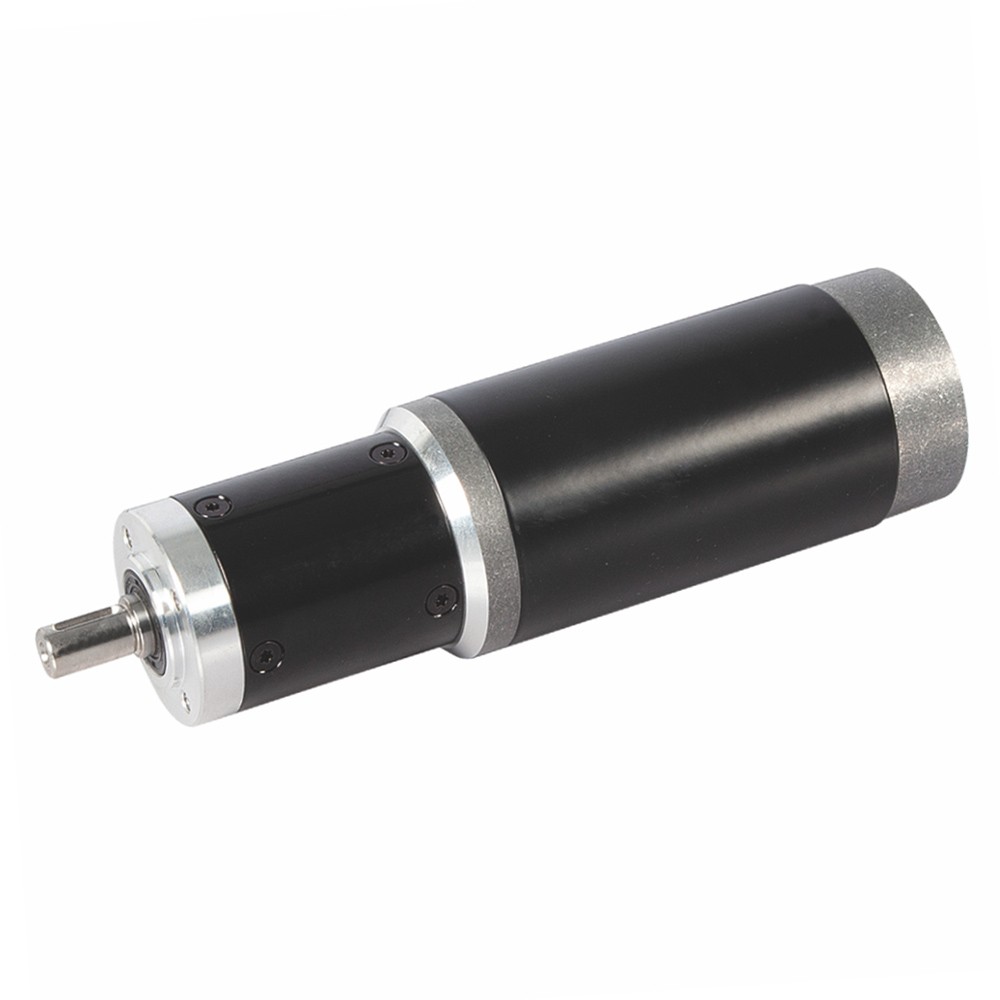

Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 52mm; DC motor: 52mmNominal voltage12V/24V DC or customizedGear ratio 1:4.5 ~1:162No load current0.40A; 0.60A; 0.80ANominal current2.0A; 3.50A; 4.50ANo load speed2000rpm; 3000rpm; 4000rpmNominal speed1600rpm; 2400rpm; 3200rpmPermissible load range2.0N.m ~ 30.0N.m for S1 duty cycleNominal power30W; 50W; 80WIP ratingup to IP68

Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 52mm; DC motor: 52mmNominal voltage12V/24V DC or customizedGear ratio 1:3.6 ~1:135No load current0.40A; 0.60A; 0.80ANominal current2.0A; 3.50A; 4.50ANo load speed2000rpm; 3000rpm; 4000rpmNominal speed1600rpm; 2400rpm; 3200rpmPermissible load range2.0N.m ~ 30.0N.m for S1 duty cycleNominal power30W; 50W; 80WIP ratingup to IP68

Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 56mm; DC motor: 60mmNominal voltage12V/24V DC or customizedGear ratio 1:3.6 ~1:326No load current0.30A; 0.40A; 0.50ANominal current0.8A; 1.20A; 2.20ANo load speed2000rpm; 3000rpm; 4000rpmNominal speed1600rpm; 2400rpm; 3200rpmPermissible load range2.0N.m ~ 30.0N.m for S1 duty cycleNominal power8W; 17W; 30WIP ratingup to IP68

Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 56mm; DC motor: 60mmNominal voltage12V/24V DC or customizedGear ratio 1:3.6 ~1:234No load current0.40A; 0.50ANominal current1.80A; 3.0ANo load speed2000rpm; 3000rpmNominal speed1600rpm; 2400rpmPermissible load range2.0N.m ~ 30.0N.m for S1 duty cycleNominal power25W; 40WIP ratingup to IP68

Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 56mm; DC motor: 60mmNominal voltage12V/24V DC or customizedGear ratio 1:3.6 ~1:234No load current0.25A; 0.35A; 0.50ANominal current1.80A; 2.20A; 6.0ANo load speed2000rpm; 3000rpm; 5000rpmNominal speed1600rpm; 2400rpm; 4000rpmPermissible load range2.0N.m ~ 30.0N.m for S1 duty cycleNominal power30W; 45W; 90WIP ratingup to IP68

Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 56mm; DC motor: 63mmNominal voltage12V/24V DC or customizedGear ratio 1:3.6 ~1:168No load current0.50A; 0.80A; 1.20ANominal current4.60A; 6.0A; 9.0ANo load speed3000rpm; 3500rpm; 4000rpmNominal speed2500rpm; 2800rpm; 3200rpmPermissible load range2.0N.m ~ 30.0N.m for S1 duty cycleNominal power65W; 95W; 150WIP ratingup to IP68

Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 56mm; DC motor: 80mmNominal voltage12V/24V DC or customizedGear ratio 1:3.6 ~1:76No load current0.80A; 1.10ANominal current7.50A; 9.50ANo load speed3000rpm; 3500rpmNominal speed2400rpm; 2900rpmPermissible load range2.0N.m ~ 30.0N.m for S1 duty cycleNominal power120W; 150WIP ratingup to IP68

Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 72mm; DC motor: 71mmNominal voltage12V/24V DC or customizedGear ratio 1:4 ~1:308No load current0.40A; 0.50ANominal current2.40A; 3.50ANo load speed2000rpm; 3000rpmNominal speed1600rpm; 2600rpmPermissible load rangeup to 85N.m for S1 duty cycleNominal power33W; 59WIP ratingup to IP68

Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 82mm; DC motor: 80mmNominal voltage12V/24V DC or customizedGear ratio 1:4 ~1:329No load current0.30A; 0.50ANominal current3.50A; 7.50ANo load speed2000rpm; 3000rpmNominal speed1700rpm; 2600rpmPermissible load rangeup to 120N.m for S1 duty cycleNominal power57W; 120WIP ratingup to IP68
