Wheelchair DC Motor

BRUSHED DC MOTORThe bruhsed DC motors fit most Electric Wheelchairs & Power WheelchairsTHE BRUSHED DC MOTORS SPECS AND FEATURE: ·  Motor Size: ·  Power: 100W, 150W, 200W, 250W, 300W, 350W, 400W, 450W·  2 Poles, 4 Poles·  12V DC ~ 36V DC·  Speed 800 ~ 5000rpm·  Operation Mode S1·  Without/with Brake

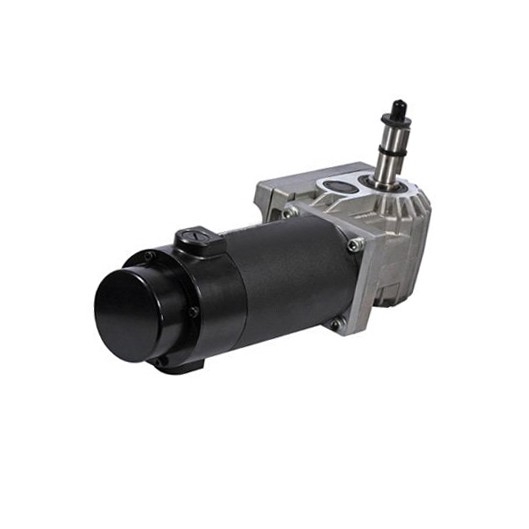

Wheelchair Gear Motor

DC RIGHT ANGLE GEAR MOTORDC Right Angle Gear Motor fits most electric wheelchairs & power wheel chairsGEARMOTOR SPECS AND FEATURE: No Load Speed 130+/-5RPMNo Load Current 4.89+/-5% ARating Torque 6.78N.mRating Power 145WRating Current 9+/-5% AMax Effic. 70%

Wheelchair Geared Motor

           Specification:Nominal Voltage24VMotor Output Power350WNo Load CurrentReduction Ratio32 : 1Motor Speed3800±100BrakeDC24V,,2NMMotor Efficiency≥78%Motor Outer DiameterAxial Play0.1~On Load Torque23.5N.MMax Torque Output60N.m  Noise≤62 dBNet Weight7.2kgPacking Carton Size44X35X23mm ( 2PCS/1PAIR)Weight Capacity 150kg

Wheelchair Gear Motor



80ZY163-24/115WJ Wheelchair Motor

ELECTRIC WHEELCHAIR GEAR MOTOR 80ZY163-24/115WJ TYPICAL SPECS.:· Voltage 24V DC· Rated Current 25A· Motor Power 276W· Rated Torque 22N.m· Rated Speed 120RPM· Gearbox Ratio 32 : 1

Stairlift Motor 90ZY165CD-118WJ

STAIRLIFT DC RIGHT ANGLE GEAR MOTOR 90ZY165CD-118WJ SPECS AND FEATURE:· Voltage 24V DC· Rated Speed 20rpm· Rated Torque 60N.m· Gear Ratio 120/1· Custom specifications available upon requestSTAIR LIFT DC GEAR MOTORSTAIR CHAIR GEAR MOTORSTAIRLIFT GEAR MOTORSTAIR LIFT MOTORCustom stair lift motors, gear motors and custom stair lift motor assemblies.
