63ZY105-2420/52JXM176G IP66 DC Planetary Gear Motor for Solar Tracking System

Low Speed IP66 DC Planetary Gear Motor for Solar Tracking SystemGeneral technical specs.:Voltage: 24V DC or customizedOptional IP Rating: IP54, IP55, IP65, IP66 or customer's needsRated torque up to 35N.m for continuous runningMax. torque up to 150N.mCertificates: ISO9001, CCC, CE, EAC, UKCA, RoHS; ReachCustomized shaft & flange dimensions and technical specifications are available upon requested.One Typical Model:63ZY105-2420/52JXM176G12J30Gear Motor:Voltage: 24V DCGear Ratio: 176:1Rated Speed: 9rpmRated Torque: 25N.mRated Current: within 2.5AIP Rating: IP66Operation Temp.: -40℃ ~ 70℃

Brushed DC Motor/Planetary Motor

Special Motors for Solar Tracking System, Solar TrackerGearbox Frame: 56JX, 60JX, 72JX, 80JXZ, 82JXZ, 92JXZ, 110JX, 120JXReduction Ratio: 3.6 ~ 2000:1Rated Torque: 15N.m~ 1000N.mProtection level: IP54, IP55, IP65, IP67, IP68

56JX300K/60ZY105 + Encoder

 APPLICATIONS·  Solar Tracking Motor, Solar Tracker Motor etc.MOTOR SPECS & FEATURE·  Motor Type: Brushed DC Motor·  Motor Size: 60mm, 63mm, 70mm, 76mm, 80mm·  Voltage: 6 ~ 300V DC·  Ambient Temperature: - 40 ~ + 70 Degr. ·  IP 44, IP54, IP55 or IP65·  With/without Planetary Gearhead·  With/without Encoder

Planetary Geared Stepping Motor

APPLICATIONS·  Solar Tracking Motor, Solar Tracker Motor etc.MOTOR SPECS & FEATURE·  Motor Model: 36JX30K-FL42STH                        42JX100K-FL42STH                        56JX200K-FL57STH·  Voltage: 1.9V ~ 12V DC·  Step Angle: 1.8°·  Reduction Ratio: 3.7 : 1 ~ 720 : 1·  With/without Encoder

80ZY115-2413/110JX467G2558

DC Geared Motors for Solar Tracking System / Solar Tracking Motors/Solar Automatic Tracker Motors / Tubular GearmotorsSOLAR TRACKER GEAR MOTOR 80ZY115-2413/110JX467G2558 SPECS & FEATURE   Voltage 24V DC  No-Load Current 1A  Rated Current 3A  No-Load Speed 2.8rpm  Rated Speed 2.2rpm  Rated Torque 145N.m  Max. Torque 250N.m  With 2 channel 2ppr Encoder  Gear Ratio 467/1

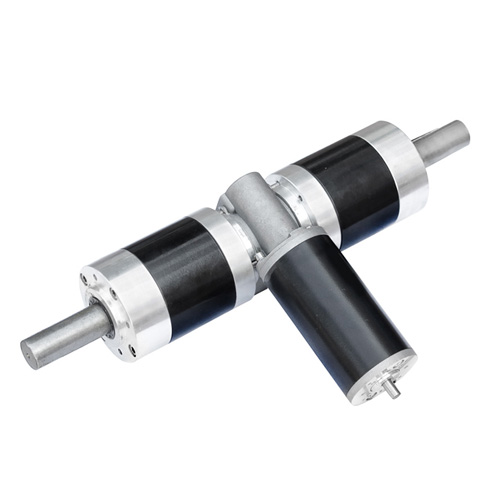

63ZY/63JW/82JX Solar Tracker Motor

APPLICATIONS·  Solar Tracking Motor, Solar Tracker Motor etc.MOTOR SPECS & FEATURE·  Motor Type: Brushed DC Motor·  Motor Size: 63mm·  Voltage: 60VDC, 110VDC·  Rated Speed 3.4rpm·  Rated Torque each output shaft 60N.m·  Ambient Temperature: - 40 ~ + 70 Degr. ·  With Two Planetary Gearboxes and One Worm Gearbox·  Without Encoder·  IP54

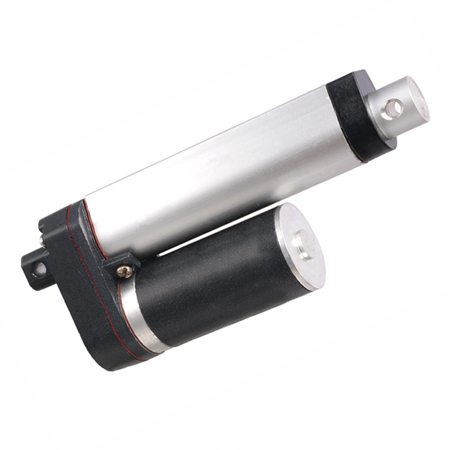

38ZY DC Linear Actuator

DC LINEAR ACTUATOR 38ZY SPECS & FEATURE· Voltage 12, 24, 36, 48V DC· Load Capacity / Max. Speed: 750N/7mm/s, 500N/10mm/s, 250N/23mm/s, 125N/42mm/s· Standard Stroke 50 ~ 700mm ( Option Upon Request )· Duty Cycle 10%, Max. 2 min ON/18 min OFF· Operation Temperature 0 ~ 40 Degr.
