Products

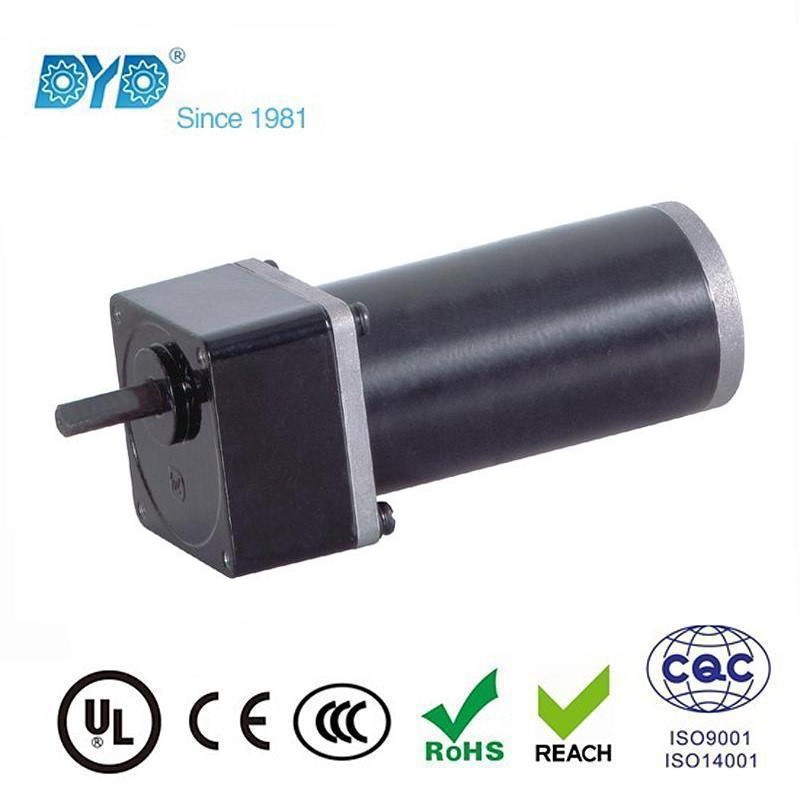

Brushless and Brushed DC Parallel Shaft Gear Motor Brushless DC Spur Gear Motor / BL DC Gear MotorModel:  80ZWN47-2428/80CJB136.1K15 with inner hall sensorTechnical pecs.: Only motor:Voltage: 24V DCNo-load speed 2800rpmNo-load current 0,6ARated speed 2200rpmRated power 45WRated torque 0.194N.mGear motor:Gear ratio 1:136.1 Rated torque 19.2N.mRated speed 16.2rpmBack lash 0.5°Max. radial load 1500NMax. axial load 500NNoise @ no-load: 0.5m distance with 60dB. Optional components: speed controllers/encoder/brake/ cable connector CE, UKCA, Reach and RoHS approval Customized shaft & flange dimensions and technical specs. are available upon requested.

IP55 80ZY140-98JB12.308 HOLLOW SHAFT PARALLEL SHAFT GEAR MOTOR TYPICAL SPECS.:Voltage 120V DCRated 3.2N.m @ 1.4 Amps @ 180rpmWithout / With A Power-Off Brake / EncoderGearbox Ratio 12.308/1Protection Class IP55 Other Ratios Available Upon Request

Sweeper DC Spur Gear Motor, Floor cleaning machine DC Gear Motor, Floor scrubber DC Gear MotorDC  PARALLEL SHAFT GEARED MOTOR 114ZY-134JB SPECS AND FEATURE:Motor Size 114mm ODPower 200W ~ 1000W ( L=154mm ~ 230mm )Voltage 24V DC ( or 12V, 36V )Rated Speed 100 ~ 400RPMGear Ratio 10/1 Duty Cycle: Continuous

Brushed DC In Line Gear Motor / Permanent Magnet DC Gearmotors / PMDC Gearmotors / DC Spur Gearmotors / Compact Size High Torque Parallel Shaft DC Gear MotorsModel: 40ZY-176JBVoltage: 12V DCRated Speed: 5rpmRated Torque: 68N.mGear Ratio: 912/1Operation Mode: S2

Motor typeBrush commutated DC motor Gearbox typeSpurSizeGearbox: 60mm; DC motor45mmNominal voltage12V/24V DC or customizedGear ratio 1:3 ~1:200No load current0.20A; 0.25ANo load speed2000rpm; 3000rpmNominal current0.50A; 0.80ANominal speed1600rpm; 2400rpmPermissible load rangeup to 10.0N.m for S1 duty cycleNominal power5.0W; 10.0WIP ratingup to IP68

Motor typeBrush commutated DC motorGearbox typeSpur/Parallel ShaftDiameterGearbox: 80mm; DC motor: 80mmNominal voltage12V/24V DC or customizedGear ratio1:5 ~1:200No load current0.50A; 1.0ANominal current6.0A; 12.0ANo load speed2000rpm; 3000rpmNominal speed1700rpm; 2600rpmPermissible load rangeup to 60.0N.m for S1 duty cycleNominal power110.0W; 205.0WIP ratingup to IP67

Motor typeBrush commutated DC motorGearbox typeSpur/Parallel ShaftDiameterGearbox: 80mm; DC motor: 80mmNominal voltage12V/24V DC or customizedGear ratio1:5 ~1:200No load current0.30A; 0.50ANominal current3.5A; 7.5ANo load speed2000rpm; 3000rpmNominal speed1700rpm; 2600rpmPermissible load rangeup to 60.0N.m for S1 duty cycleNominal power57.0W; 120.0WIP ratingup to IP67

Motor typeBrush commutated DC motorGearbox typeSpur/Parallel ShaftDiameterGearbox: 60mm; DC motor: 52mmNominal voltage12V/24V DC or customizedGear ratio1:5 ~1:200No load current0.60A; 0.80ANominal current4.0A; 5.2ANo load speed3000rpm; 4000rpmNominal speed2400rpm; 3200rpmPermissible load rangeup to 15.0N.m for S1 duty cycleNominal power50.0W; 75.0WIP ratingup to IP67

Motor typeBrush commutated DC motorGearbox typeSpur/Parallel ShaftDiameterGearbox: 60mm; DC motor: 52mmNominal voltage12V/24V DC or customizedGear ratio1:5 ~1:200No load current0.20A; 0.30ANominal current1.20A; 1.80ANo load speed2000rpm; 3000rpmNominal speed1600rpm; 2400rpmPermissible load rangeup to 15.0N.m for S1 duty cycleNominal power15.0W; 25.0WIP ratingup to IP67

Motor typeBrush commutated DC motor Gearbox typeSpurSizeGearbox: 60mm; DC motor45mmNominal voltage12V/24V DC or customizedGear ratio 1:3 ~1:200No load current0.20A; 0.25ANo load speed2000rpm; 3000rpmNominal current0.55A; 0.85ANominal speed1500rpm; 2500rpmPermissible load rangeup to 5.0N.m for S1 duty cycleNominal power6.0W; 10.0WIP ratingup to IP68

Motor typeBrush commutated DC motorGearbox typeSpur/Parallel ShaftDiameterGearbox: 60mm; DC motor: 52mmNominal voltage12V/24V DC or customizedGear ratio1:3.6 ~1:120No load current0.35A; 0.42ANominal current1.6A; 2.2ANo load speed3000rpm; 4000rpmNominal speed2400rpm; 3200rpmPermissible load rangeup to 5.0N.m for S1 duty cycleNominal power18.0W; 27.0WIP ratingup to IP68

Motor typeBrush commutated DC motor Gearbox typeSpurSizeGearbox: 60mm; DC motor 45mmNominal voltage12V/24V DC or customizedGear ratio 1:3 ~1:200No load current0.25A; 0.28ANo load speed3000rpm; 4000rpmNominal current0.90A; 1.20ANominal speed2500rpm; 3400rpmPermissible load rangeup to 5.0N.m for S1 duty cycleNominal power14.0W; 18.0WIP ratingup to IP68
