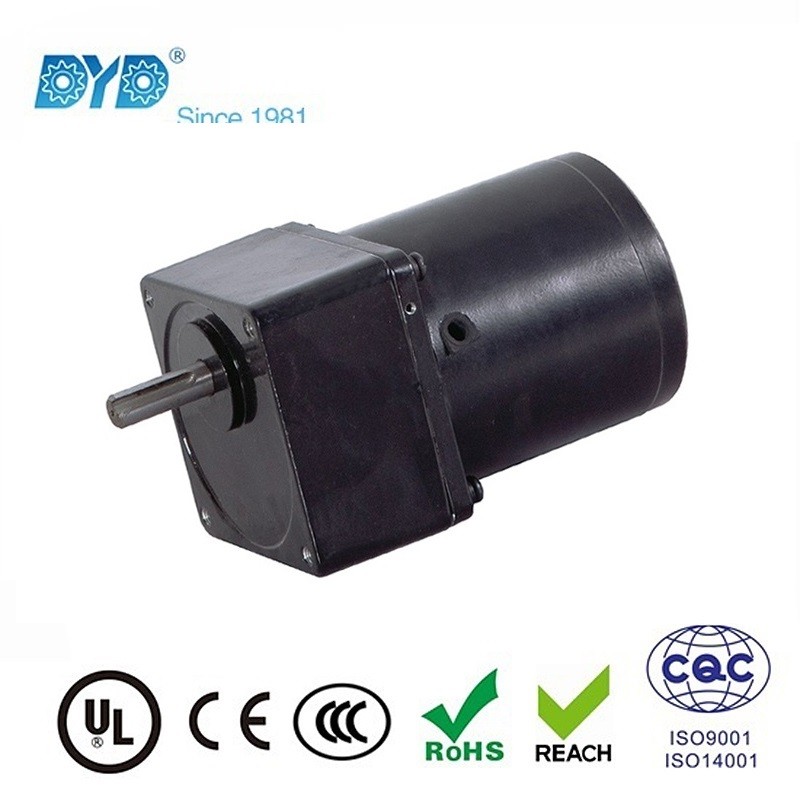

AC Motor 60 Series

AC Motor 60 Series (2IK6W,2RI6W) Our standard AC induction gear motors and reversible gear motors includes 4, 6, 10, 15, 20, 25, 30, 40, 60, 90, 120, 140, 180 and 200 Watt motors which can be integrated with 3:1 through 180:1 ratio gear heads (22 different ratios). There are mainly four type: Fixed Speed Motors,Variable Speed Motors, Electromagnetic Brake Motors and Torque Motors. Most of them are directly interchangeable with those made by Oriental Motor, Panasonic Motor、SPG Motor and Bison Gears. These high quality/low cost motors with CE & UL approval shall be your one-stop source for your motion needs.       Type Poles Power Voltage Frequency Current Starting Torque Rated Speed Rated Torque Capacitor 60JB Gearbox (W) (VAC) (Hz) (A) (mN.m) (oz.in) (rpm) (mN.m) (oz.in) (uF) Ratio YY60-4 4 4 Single-Phase 110 50/60 0.2 40 0.4 1250/1550 30.6 0.3 3/250 3~180 YY60-4 4 4 Single-Phase 220 50/60 0.1 40 0.4 1250/1550 30.6 0.3 0.8/450 3~180 YY60-6 4 6 Single-Phase 110 50/60 0.24 70 0.6 1250/1550 46 0.4 3/250 3~180 YY60-6 4 6 Single-Phase 220 50/60 0.12 70 0.6 1250/1550 46 0.4 0.8/450 3~180 YY60-10 4 10 Single-Phase 110 50/60 0.3 90 0.8 1250/1550 76.4 0.7 4/250 3~180 YY60-10 4 10 Single-Phase 220 50/60 0.15 90 0.8 1250/1550 76.4 0.7 1/450 3~180 YN60-4 4 4 Single-Phase 110 50/60 0.2 40 0.4 1250/1550 30.6 0.3 3/250 3~180 YN60-4 4 4 Single-Phase 220 50/60 0.1 40 0.4 1250/1550 30.6 0.3 0.8/450 3~180 YN60-6 4 6 Single-Phase 110 50/60 0.24 70 0.6 1250/1550 46 0.4 3/250 3~180 YN60-6 4 6 Single-Phase 220 50/60 0.12 70 0.6 1250/1550 46 0.4 0.8/450 3~180 YN60-10 4 10 Single-Phase 110 50/60 0.3 90 0.8 1250/1550 76.4 0.7 4/250 3~180 YN60-10 4 10 Single-Phase 220 50/60 0.15 90 0.8 1250/1550 76.4 0.7 1/450 3~180

AC Motor 70 Series

AC Motor 70 Series (3IK15W,3RK15W) Our standard AC induction gear motors and reversible gear motors includes 4, 6, 10, 15, 20, 25, 30, 40, 60, 90, 120, 140, 180 and 200 Watt motors which can be integrated with 3:1 through 180:1 ratio gear heads (22 different ratios). There are mainly four type: Fixed Speed Motors,Variable Speed Motors, Electromagnetic Brake Motors and Torque Motors. Most of them are directly interchangeable with those made by Oriental Motor, Panasonic Motor、SPG Motor and Bison Gears. These high quality/low cost motors with CE & UL approval shall be your one-stop source for your motion needs.       Type Poles Power Voltage Frequecny Current Starting Torque Rated Speed Rated Torque Capacitor 70JB Gearbox (W) (VAC) (Hz) (A) (mN.m) (oz.in) (rpm) (mN.m) (oz.in) (uF) Ratio YY70-10 4 10 Single-Phase 110 50 0.35 64.7 0.6 1250 73.5 0.7 4/250 3~180 YY70-10 4 10 Single-Phase 220 50 0.16 64.7 0.6 1250 73.5 0.7 1/450 3~180 YY70-15 4 15 Single-Phase 110 50 0.4 110 1.0 1250 115 1.0 6/250 3~180 YY70-15 4 15 Single-Phase 220 50 0.2 110 1.0 1250 115 1.0 1.5/450 3~180 YY70-20 4 20 Single-Phase 110 50 0.5 140 1.2 1250 160 1.4 7/250 3~180 YY70-20 4 20 Single-Phase 220 50 0.25 140 1.2 1250 160 1.4 1.8/450 3~180 YY70-25 4 25 Single-Phase 110 50 0.5 170 1.5 1250 200 1.8 8/250 3~180 YY70-25 4 25 Single-Phase 220 50 0.25 170 1.5 1250 200 1.8 2/450 3~180 YN70-10 4 10 Single-Phase 110 50 0.35 64.7 0.6 1250 73.5 0.7 4/250 3~180 YN70-10 4 10 Single-Phase 220 50 0.16 64.7 0.6 1250 73.5 0.7 1/450 3~180 YN70-15 4 15 Single-Phase 110 50 0.4 110 1.0 1250 115 1.0 6/250 3~180 YN70-15 4 15 Single-Phase 220 50 0.2 110 1.0 1250 115 1.0 1.5/450 3~180 YN70-20 4 20 Single-Phase 110 50 0.5 140 1.2 1200 160 1.4 7/250 3~180 YN70-20 4 20 Single-Phase 220 50 0.25 140 1.2 1200 160 1.4 1.8/450 3~180 YN70-25 4 25 Single-Phase 110 50 0.5 170 1.5 1200 200 1.8 8/250 3~180 YN70-25 4 25 Single-Phase 220 50 0.25 170 1.5 1200 200 1.8 2/450 3~180

AC Motor 90 Series

AC Motor 90 Series (5IK120W, 5RK120W)   Our standard AC induction gear motors and reversible gear motors includes 4, 6, 10, 15, 20, 25, 30, 40, 60, 90, 120, 140, 180 and 200 Watt motors which can be integrated with 3:1 through 180:1 ratio gear heads (22 different ratios). There are mainly four type: Fixed Speed Motors,Variable Speed Motors, Electromagnetic Brake Motors and Torque Motors. Most of them are directly interchangeable with those made by Oriental Motor, Panasonic Motor, SPG Motor and Bison Gears. These high quality/low cost motors with CE & UL approval shall be your one-stop source for your motion needs.                                                                                 Type Poles Power Voltage Freq. Current Starting Torque Rated Speed Rated Torque Capacitor 90JB Gearbox (W) (VAC) (Hz) (A) (mN.m) (oz.in) (rpm) (mN.m) (oz.in) (uF) Ratio YY90-40 4 40 Single-Phase 110 50/60 0.9 215 1.9 1300/1600 294 2.6 10/250 3~180 YY90-40 4 40 Single-Phase 220 50/60 0.45 215 1.9 1300/1600 294 2.6 2.5/250 3~180 YY90-60 4 60 Single-Phase 110 50/60 1.2 343 3.0 1300/1600 441 3.9 16/250 3~180 YY90-60 4 60 Single-Phase 220 50/60 0.6 343 3.0 1300/1600 441 3.9 4/250 3~180 YY90-90 4 90 Single-Phase 110 50/60 2 490 4.3 1300/1600 670 5.9 24/250 3~180 YY90-90 4 90 Single-Phase 220 50/60 2 490 4.3 1300/1600 670 5.9 6/250 3~180 YY90-120 4 120 Single-Phase 110 50/60 2.4 637 5.6 1300/1600 880 7.8 28/250 3~180 YY90-120 4 120 Single-Phase 220 50/60 2.4 637 5.6 1300/1600 880 7.8 7/250 3~180 YN90-40 4 40 Single-Phase 110 50/60 0.9 215 1.9 1300/1600 294 2.6 10/250 3~180 YN90-40 4 40 Single-Phase 220 50/60 0.45 215 1.9 1300/1600 294 2.6 2.5/250 3~180 YN90-60 4 60 Single-Phase 110 50/60 1.2 343 3.0 1300/1600 441 3.9 16/250 3~180 YN90-60 4 60 Single-Phase 220 50/60 0.6 343 3.0 1300/1600 441 3.9 4/250 3~180 YN90-90 4 90 Single-Phase 110 50/60 2 490 4.3 1300/1600 670 5.9 24/250 3~180 YN90-90 4 90 Single-Phase 220 50/60 2 490 4.3 1300/1600 670 5.9 6/250 3~180 YN90-120 4 120 Single-Phase 110 50/60 2.4 637 5.6 1300/1600 880 7.8 28/250 3~180 YN90-120 4 120 Single-Phase 220 50/60 2.4 637 5.6 1300/1600 880 7.8 7/250 3~180 Y90-40 4 40 Three-Phase 220 50/60 0.35 392 3.5 1300/1600 294 2.6 / 3~180 Y90-40 4 40 Three-Phase 380 50/60 0.2 392 3.5 1300/1600 294 2.6 / 3~180 Y90-60 4 60 Three-Phase 220 50/60 0.5 637 5.6 1300/1600 441 3.9 / 3~180 Y90-60 4 60 Three-Phase 380 50/60 0.3 637 5.6 1300/1600 441 3.9 / 3~180

AC Brake Motor

AC Brake Motor 70 ~ 90 Series These motors are directly coupled to an AC power-off activated electromagnetic brake. When the power source is turned off, the motor stops instantaneously and holds the load. Specifications conforming to typical international safety standards: CE and UL.Frame sizes from 70mm to 90mmOutput power from 10 W to 120 WOutput shaft type: Key, Round or D-cut Type P Power Voltage Freq. Current Starting Torque Speed Rated Torque Capacitor Gearbox (W) (VAC) (Hz) (A) (mN.m) (oz.in) (rpm) (mN.m) (oz.in) (uF) Ratio YY70-10D 4 10 Single-Phase 110 50 0.35 64.7 0.6 1250 73.5 0.7 4/250 70JB(3~180) YY70-10D 4 10 Single-Phase 220 50 0.16 64.7 0.6 1250 73.5 0.7 1/450 70JB(3~180) YY70-15D 4 15 Single-Phase 110 50 0.4 110 1.0 1250 115 1.0 6/250 70JB(3~180) YY70-15D 4 15 Single-Phase 220 50 0.2 110 1.0 1250 115 1.0 1.5/450 70JB(3~180) YY70-20D 4 20 Single-Phase 110 50 0.5 140 1.2 1250 160 1.4 7/250 70JB(3~180) YY70-20D 4 20 Single-Phase 220 50 0.25 140 1.2 1250 160 1.4 1.8/450 70JB(3~180) YY70-25D 4 25 Single-Phase 110 50 0.5 170 1.5 1250 200 1.8 8/250 70JB(3~180) YY70-25D 4 25 Single-Phase 220 50 0.25 170 1.5 1250 200 1.8 2/450 70JB(3~180) YN70-10D 4 10 Single-Phase 110 50 0.35 64.7 0.6 1250 73.5 0.7 4/250 70JB(3~180) YN70-10D 4 10 Single-Phase 220 50 0.16 64.7 0.6 1250 73.5 0.7 1/450 70JB(3~180) YN70-15D 4 15 Single-Phase 110 50 0.4 110 1.0 1250 115 1.0 6/250 70JB(3~180) YN70-15D 4 15 Single-Phase 220 50 0.2 110 1.0 1250 115 1.0 1.5/450 70JB(3~180) YN70-20D 4 20 Single-Phase 110 50 0.5 140 1.2 1200 160 1.4 7/250 70JB(3~180) YN70-20D 4 20 Single-Phase 220 50 0.25 140 1.2 1200 160 1.4 1.8/450 70JB(3~180) YN70-25D 4 25 Single-Phase 110 50 0.5 170 1.5 1200 200 1.8 8/250 70JB(3~180) YN70-25D 4 25 Single-Phase 220 50 0.25 170 1.5 1200 200 1.8 2/450 70JB(3~180) YN80-25D 4 25 Single-Phase 110 50 0.65 108 1.0 1250 194 1.7 7/250 80JB(3~180) YN80-25D 4 25 Single-Phase 220 50 0.35 108 1.0 1250 194 1.7 2/450 80JB(3~180) YY80-25D 4 25 Single-Phase 110 50 0.65 108 1.0 1250 194 1.7 6/250 80JB(3~180)
