Products

AC SPUR GEAR MOTOR YN60-10/65JB SPECS AND FEATURE: Voltage / Freq.  220V AC / 50HzOutput Power 12WMotor Speed 1250RPMRated Current 0.25AGear ratio 22/1

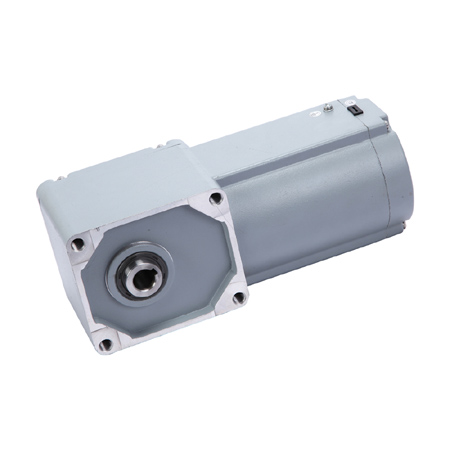

AC RIGHT ANGLE GEAR MOTOR YN70-25/63JW SPECS AND FEATURE: Voltage 110V ~ 440V ACMotor Power 25WMotor Rated Speed 1250rpm/50Hz, 1500rpm/60HzGear Ratio 10/1, 12.5/1, 30/1, 36/1, 50/1

Motor typeAC Single-Phase MotorGearbox typeWorm/Right angleDiameter AC motor:90mmNominal voltage115V,230VGear ratio 1:12.5;1:16;1:25;1:32;1:40;1:50Nominal speed26rpm;32rpm;40rpm;52rpm;81rpm;104rpmPermissible load rangeUp to 20.0N.m for S1 duty cycleNominal power40W;60W;90W

Motor typeAC Single-Phase MotorGearbox typeWormDiameterAC motor:90mmNominal voltage115V,230VGear ratio 1:125;1:160;1:250;1:320Nominal speed3.8rpm;4.8rpm;7.5rpm;9.6rpmPermissible load rangeUp to 30N.m for S1 duty cycleNominal power40W

Motor typeAC Three-Phase MotorGearbox typeWorm/Right angleDiameterAC motor:90mmNominal voltage230V,380V,400VGear ratio 1:125;1:160;1:250;1:320Nominal speed3.8rpm;4.8rpm;7.5rpm;9.6rpmPermissible load rangeUp to 20N.m for S1 duty cycleNominal power40W

Motor typeAC Three-Phase MotorGearbox typeWorm/Right angleDiameter AC motor:90mmNominal voltage230V,380V,400VGear ratio 1:12.5;1:16;1:25;1:32;1:40;1:50Nominal speed26rpm;32rpm;40rpm;52rpm;81rpm;104rpmPermissible load rangeUp to 20.0N.m for S1 duty cycleNominal power40W;60W;90W

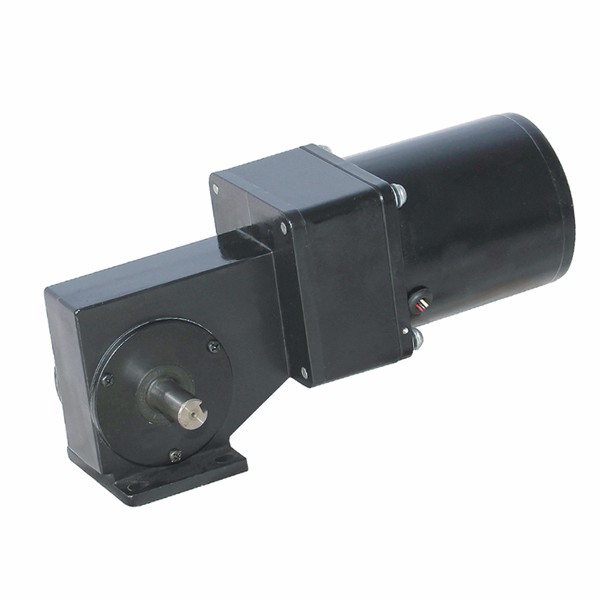

AC RIGHT ANGLE GEAR MOTOR SPECS AND FEATURE: 3 Mounting Form: F - Flange Mounting, H - Foot Mounting, R - Square Mounting Motor Power ( KW ): 0.2, 0.4, 0.75, 1.1, 1.5, 2.2, 3.0, 3.7Gear ratio: 5 10 15 20 25 30 40 50 60 80 100 120 160 200 240 300 360 480 600 750 Shaft Output: R -  Right, L - Left, T - Both SideHollow Shaft or Solid ShaftWith/Without BladeWith/Without Terminal BoxWith/Without Brake
