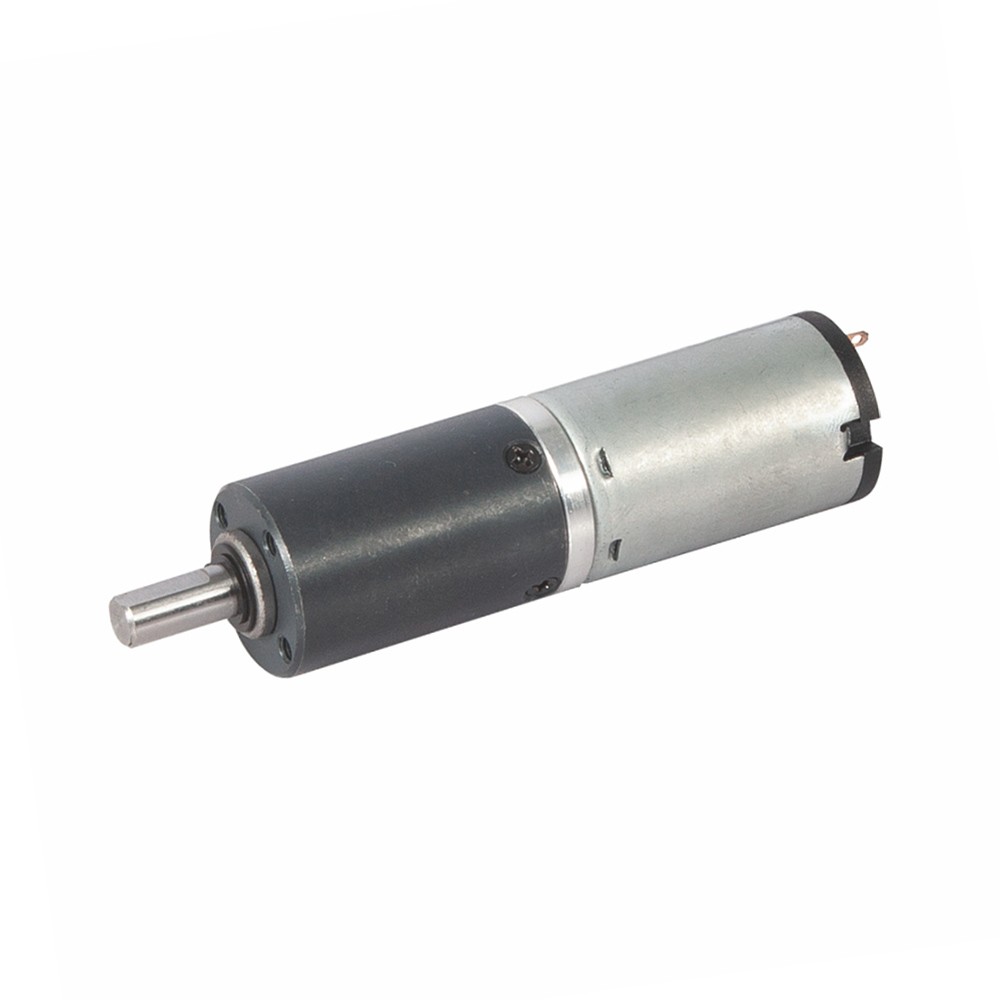

Motor typeBrush commutated DC motorGearbox typePlanetaryDiameterGearbox: 22mm; DC motor: 20mmNominal voltage12V/24V DC or customizedGear ratio1:4 ~1:256No load current200mA; 130mANominal current700mA; 350mANo load speed10000rpm; 11800rpmNominal speed8320rpm; 9600rpmPermissible load range0.01N.m ~ 1.0N.m for S1 duty cycleNominal power3.8W; 5.0WIP ratingup to IP68

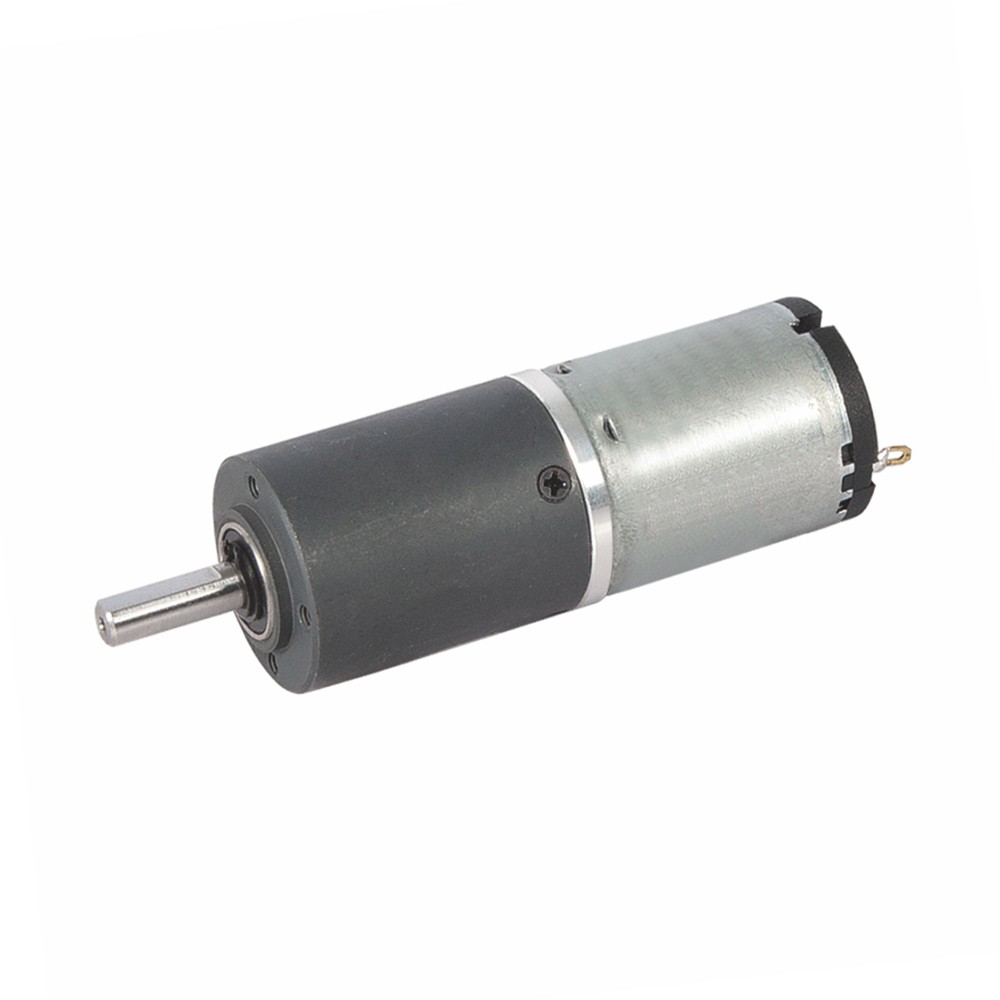

Motor typeBrush commutated DC motorGearbox typePlanetary DiameterGearbox: 22mm; DC motor:22mmNominal voltage12V/24V DC or customizedGear ratio 1:4 ~1:256No load current90mA; 110mANominal current280mA; 350mANo load speed6400rpm; 8100rpmNominal speed5450rpm; 6850rpmPermissible load range0.1N.m ~ 2.0N.m for S1 duty cycleNominal power2.5W; 4.8WIP ratingup to IP68

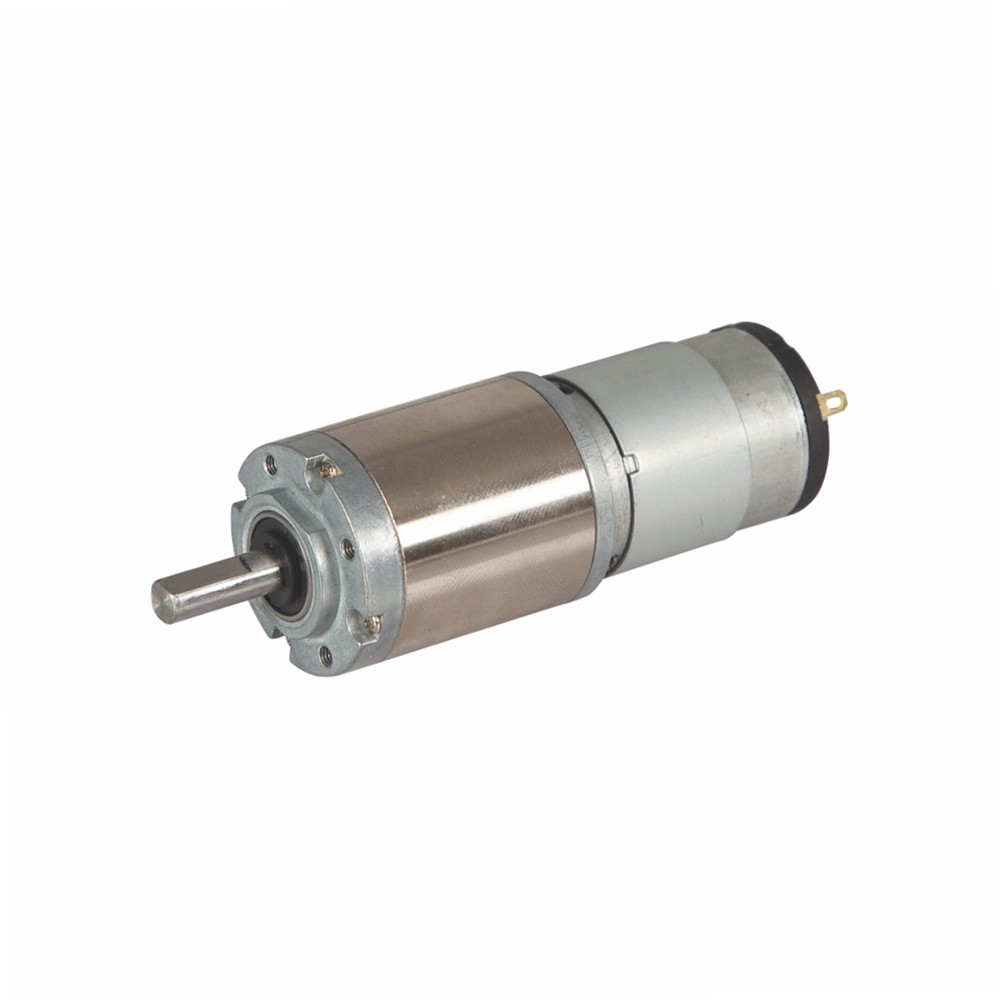

Motor typeBrush commutated DC motorGearbox typePlanetary DiameterGearbox: 22mm; DC motor:20mmNominal voltage12V/24V DC or customizedGear ratio 1:4 ~1:509No load current70mA; 70mA; 40mANominal current200mA; 240mA; 110mANo load speed8000rpm; 9500rpmNominal speed6700rpm; 7800rpmPermissible load range0.03N.m ~ 0.3N.m for S1 duty cycleNominal power1.5W;1.6W; 1.9WIP ratingup to IP68

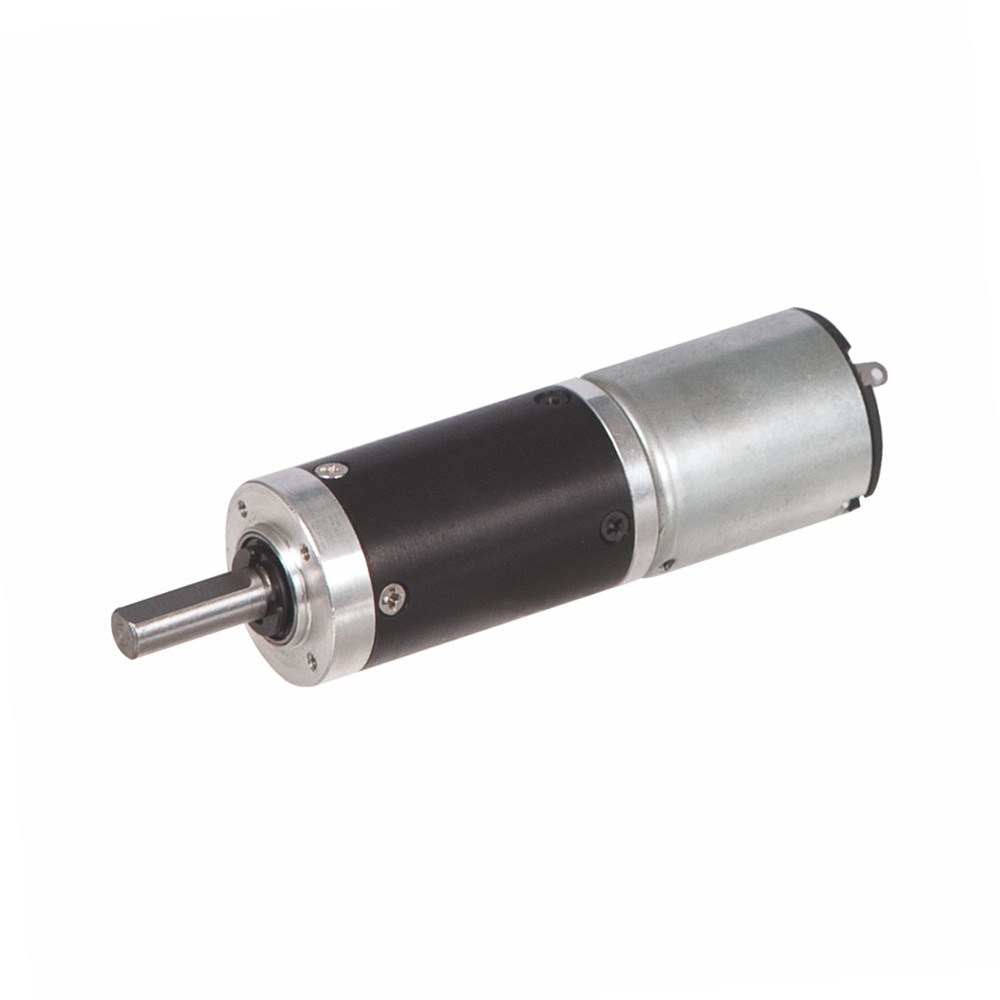

Motor typeBrush commutated DC motorGearbox typePlanetaryDiameterGearbox: 22mm; DC motor: 24mmNominal voltage12V/24V DC or customizedGear ratio1:4 ~1:256No load current162mA; 215mANominal current575mA; 690mANo load speed6000rpm; 8000rpmNominal speed5018rpm; 6700rpmPermissible load range0.02N.m ~ 2.0N.m for S1 duty cycleNominal power4.38W; 6.92WIP ratingup to IP68

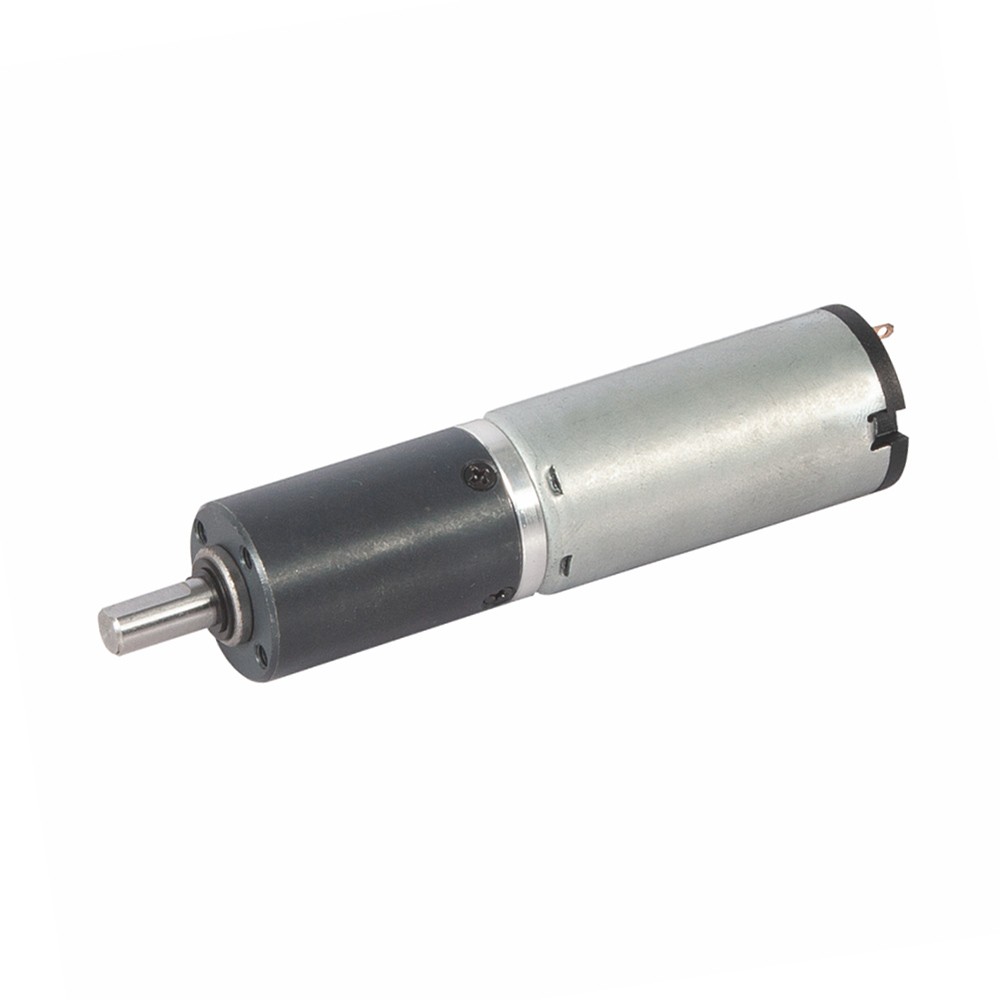

Motor typeBrush commutated DC motorGearbox typePlanetary DiameterGearbox: 28mm; DC motor:28mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1:369No load current80mA; 100mA; 60mANominal current350mA; 370mA; 200mANo load speed4000rpm; 5000rpmNominal speed2600rpm; 3450rpm; 4000rpmPermissible load range0.1N.m ~ 1.0N.m for S1 duty cycleNominal power1.86W; 2.48W; 2.87WIP ratingup to IP68

Motor typeBrush commutated Micro DC motorGearbox typePlanetary DiameterGearbox: 24mm; DC motor:24mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1:1370No load current40mA; 60mA; 70mANominal current90mA; 170mA; 240mANo load speed3000rpm; 4500rpm; 6000rpmNominal speed2400rpm; 3600rpm; 4800rpmPermissible load range0.1N.m ~ 1.0N.m for S1 duty cycleNominal power0.5W; 0.9W; 1.5WIP ratingup to IP68

Motor typeBrush commutated Micro DC motorGearbox typePlanetary DiameterGearbox: 24mm; DC motor:24mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1:1370No load current80mA; 100mA; 140mANominal current300mA; 420mA; 300mANo load speed8000rpm; 1000rpm; 12000rpmNominal speed6500rpm; 7700rpm; 9000rpmPermissible load range0.1N.m ~ 1.0N.m for S1 duty cycleNominal power2.0W; 3.1W; 3.2WIP ratingup to IP68

Motor typeBrush commutated DC motorGearbox typePlanetary DiameterGearbox: 28mm; DC motor:28mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1:596No load current130mA; 80mANominal current500mA; 300mANo load speed6000rpmNominal speed5200rpm; 5140rpmPermissible load range0.3N.m ~ 3.0N.m for S1 duty cycleNominal power4.2W; 5.0WIP ratingup to IP68

Motor typeBrush commutated DC motor with shielding coverGearbox typePlanetary DiameterGearbox: 30mm; DC motor:28mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1:596No load current150mA; 80mANominal current900mA; 500mANo load speed7300rpmNominal speed5950rpm; 6160rpmPermissible load range0.3N.m ~ 3.0N.m for S1 duty cycleNominal power6.7W; 8.2WIP ratingup to IP68

Motor typeBrush commutated DC motor with shielding coverGearbox typePlanetary DiameterGearbox: 32mm; DC motor:28mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1:596No load current150mA; 85mANominal current530mA; 250mANo load speed6500rpmNominal speed5290rpm; 5250rpmPermissible load range0.3N.m ~ 3.0N.m for S1 duty cycleNominal power2.8W; 8WIP ratingup to IP68

Motor typeBrush commutated DC motor with shielding coverGearbox typePlanetary DiameterGearbox: 32mm; DC motor:28mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1:596No load current150mA; 85mANominal current900mA; 500mANo load speed7300rpmNominal speed5950rpm; 6160rpmPermissible load range0.3N.m ~ 3.0N.m for S1 duty cycleNominal power6.7W; 8.2WIP ratingup to IP68
