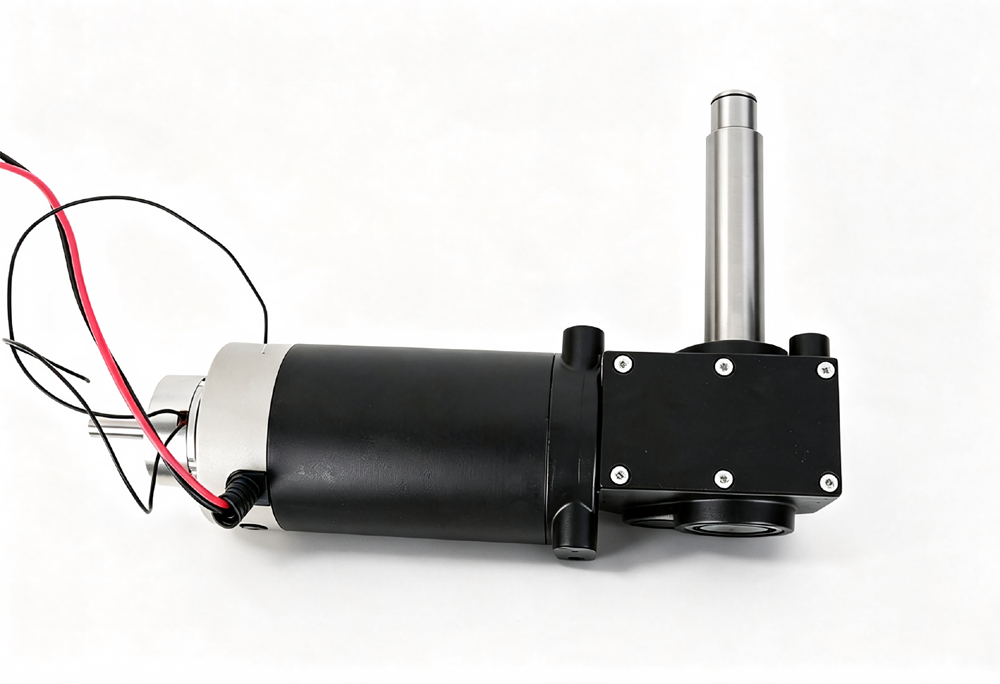

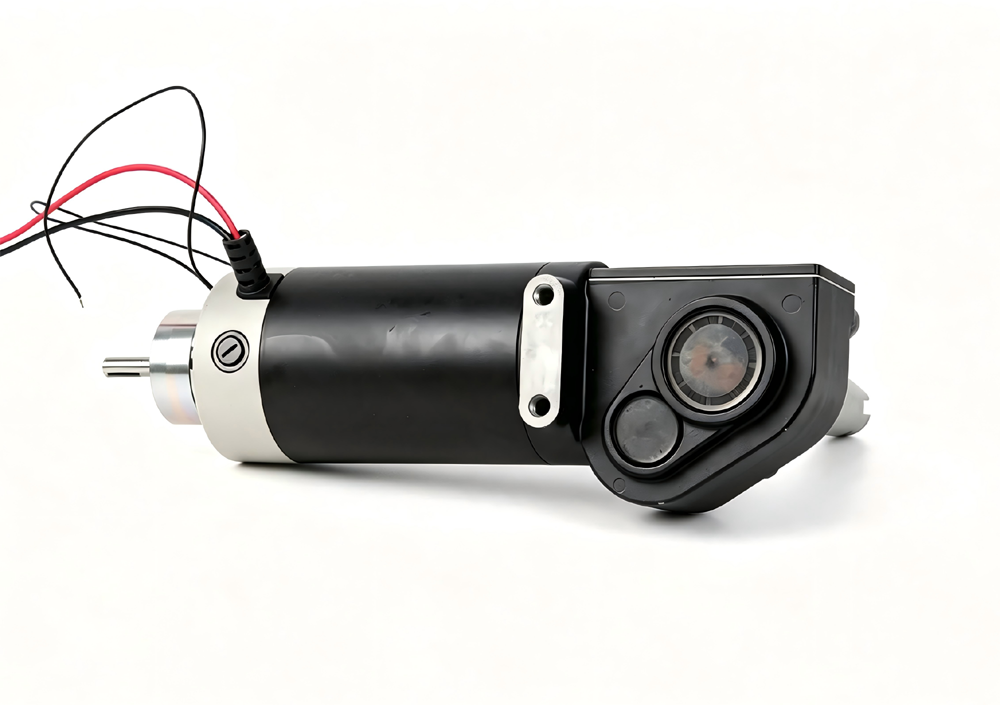

Stairlift DC Right Angle Gear Motor 94ZY152-2423-Small Gear Motors & Electric Motors

① Characteristics

STAIRLIFT DC RIGHT ANGLE GEAR MOTOR 94ZY152-2423 SPECS AND FEATURE:

· Voltage 24V DC
· Max. Efficiency 42.80%
· Speed 29rpm @Max. Efficiency Point
· Torque 79N.m @Max. Efficiency Point
· Current 18.532Amps @Max. Efficiency Point
· Output Power 190.44W @Max. Efficiency Point
· With a Power-Off brake (Without brake availalbe upon request)
· Gear Ratio 67/1
· Custom specifications available upon request

STAIR LIFT DC GEAR MOTOR

STAIR CHAIR GEAR MOTOR

STAIRLIFT GEAR MOTOR

STAIR LIFT MOTOR

Custom stair lift motors, gear motors and custom stair lift motor assemblies.
