Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 82mm; DC motor: 80mmNominal voltage12V/24V DC or customizedGear ratio 1:4 ~1:329No load current0.30A; 0.60ANominal current4.20A; 8.0ANo load speed2000rpm; 3000rpmNominal speed1500rpm; 2500rpmPermissible load rangeup to 120N.m for S1 duty cycleNominal power72W; 140WIP ratingup to IP68

Motor typeBrushless DC motorGearbox typePlanetary Pole4Phase3DiameterGearbox: 28mm; DC motor: 28mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1: 720Peak current0.45A; 0.60ANo load speed3000rpmNominal speed2000rpmPermissible load range0.3N.m-3.0N.m for S1 duty cycleRated power1.0W;1.9W

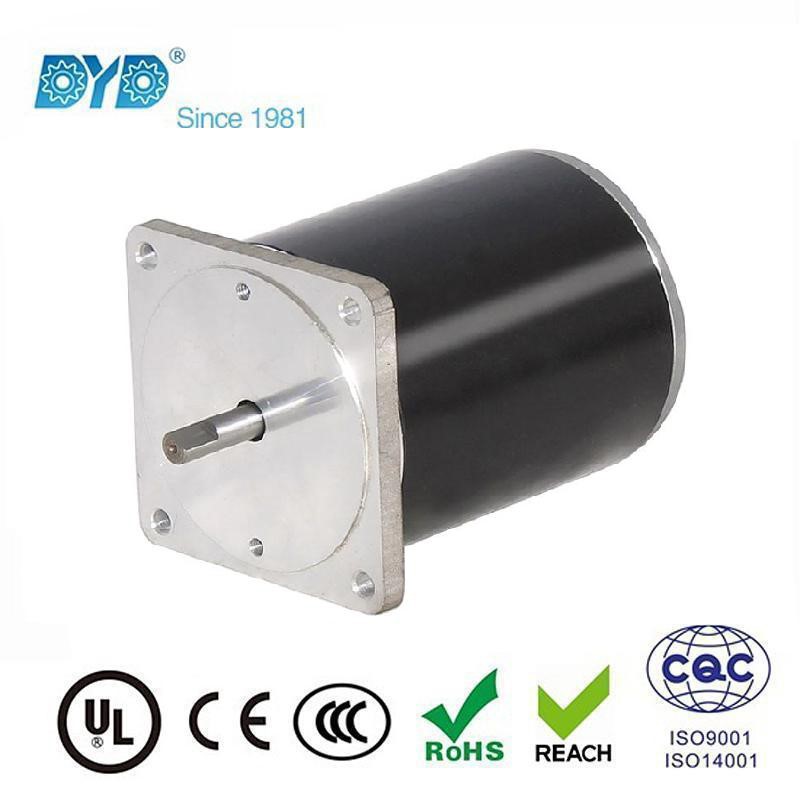

63ZYT DC BRUSH MOTOR GENERAL SPECS.·  Motor OD: 63·  Voltage: 12V DC, 24V DC, 48V DC, 110V DC, 300V DC·  Power: 20W ~ 250W·  Output Speed: 750 ~ 12000RPM·  Without Gearbox·  Customized shaft & front cover available upon request63ZYT DC BRUSH MOTOR TYPICAL SPECS.·  Voltage 220V DC·  No-load Speed 5400RPM·  Rated Torque 156.0mN.m·  Output Power 69W·  Rated Current 0.60A·  Max. Eff. 71.0%

Motor typeBrush commutated permanent magnet DC motorOptional gearbox typePlanetary/Spur/Worm/Right Angle Diameter63mmLength 125mmNominal voltage12V/24V DC or customizedNo load current0.50A; 0.80A; 1.20ANo load speed3000rpm; 3500rpm; 4000rpmNorminal current4.60A; 6.0A; 9.0ANominal speed2500rpm; 2800rpm; 3200rpmNominal torque265mN.m; 320mN.m; 450mN.mNominal power65W; 95W;150WIP ratingup to IP68Mounting NEMA 48C, NEMA 56C,  IEC61/71/80 B5/B14, NEMA 143TC/145TC, TENV, TEFC

Motor typeBrush commutated DC motorGearbox typePlanetaryDiameterGearbox: 82mm; DC motor: 80mmNominal voltage12V/24V DC or customizedGear ratio1:175 ~1:557No load current0.5A; 0.6ANominal current7.0A; 9.0ANo load speed1500rpm; 2000rpmNominal speed1250rpm; 1600rpmPermissible load rangeup to 300N.m for S1 duty cycleNominal power105.0W; 150.0WIP ratingup to IP68

Motor typeBrush commutated DC motorGearbox typePlanetaryDiameterGearbox: 82mm; DC motor: 80mmNominal voltage12V/24V DC or customizedGear ratio1:175 ~1:557No load current0.3A; 0.5ANominal current2.8A; 4.5ANo load speed1100rpm; 1500rpmNominal speed770rpm; 1050rpmPermissible load rangeup to 300N.m for S1 duty cycleNominal power40.0W; 70.0WIP ratingup to IP68

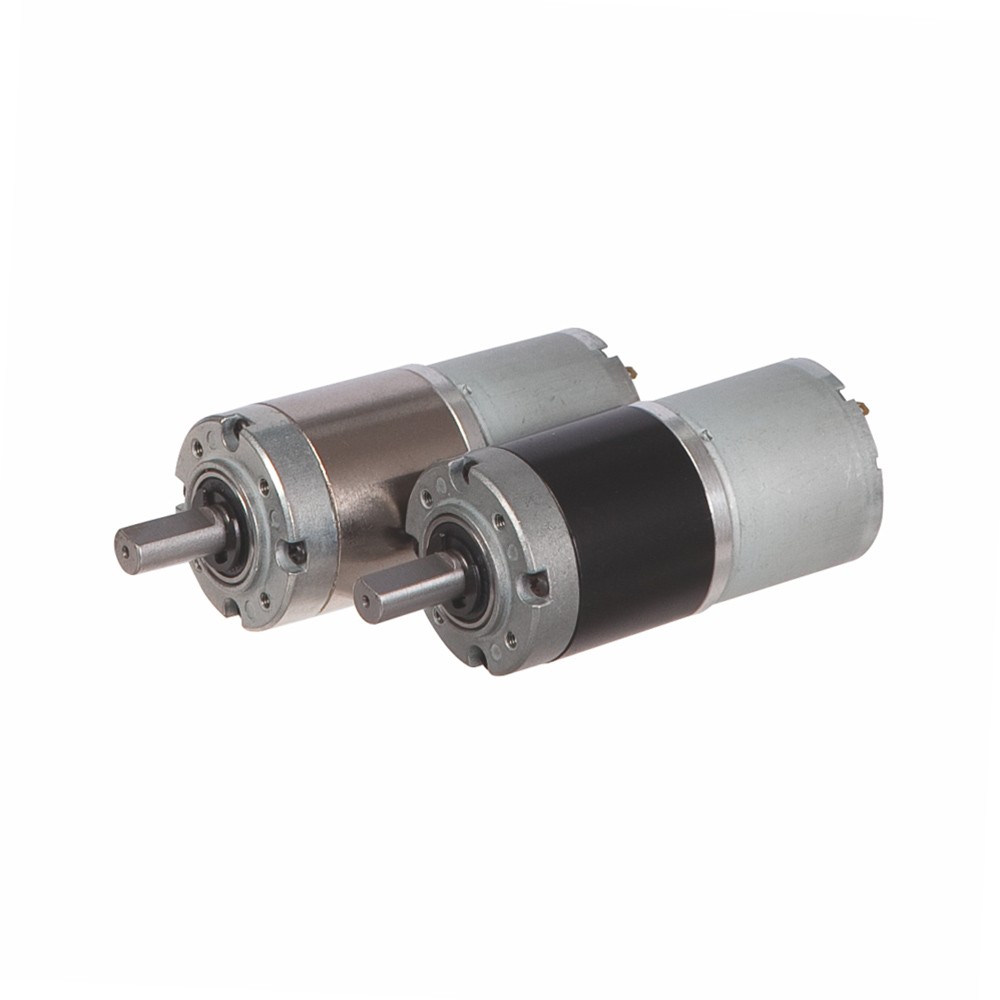

Motor typeMicro Brush commutated DC motorGearbox typePlanetaryDiameterGearbox: 36mm; DC motor: 35mmNominal voltage12V/24V DC or customizedGear ratio1:3.7 ~1:516No load current90mA; 110mANominal current400mA; 600mANo load speed3000rpm; 5000rpmNominal speed2300rpm; 4300rpmPermissible load range0.01N.m ~ 3.0N.m for S1 duty cycleNominal power2.1W; 3.5WIP ratingup to IP68

Motor typeMicro Brush commutated DC motorGearbox typePlanetaryDiameterGearbox: 36mm; DC motor: 35mmNominal voltage12V/24V DC or customizedGear ratio1:3.7 ~1:720No load current50mA; 100mANominal current280mA; 330mANo load speed3000rpm; 5000rpmNominal speed2400rpm; 4300rpmPermissible load range0.01N.m ~ 3.0N.m for S1 duty cycleNominal power1.2W; 1.8WIP ratingup to IP68

Motor typeBrush commutated DC motorGearbox typePlanetary DiameterGearbox: 32mm; DC motor:36mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1:354No load current260mA; 130mANominal current1.6A; 0.8ANo load speed6000rpmNominal speed5000rpmPermissible load range0.3N.m ~ 3.0N.m for S1 duty cycleNominal power13.1W;13.5WIP ratingup to IP68

Motor typeBrushless DC motorGearbox typePlanetary Pole4Phase3DiameterGearbox: 28mm; DC motor: 28mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1: 139Peak current3.0ANo load speed6000rpmNominal speed3700rpmPermissible load range0.3N.m-3.0N.m for S1 duty cycleRated power16W

Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 82mm; DC motor: 80mmNominal voltage12V/24V DC or customizedGear ratio 1:4 ~1:329No load current0.70A; 1.60ANominal current5.0A; 17.0ANo load speed2000rpm; 3500rpmNominal speed1650rpm; 2750rpmPermissible load rangeup to 120N.m for S1 duty cycleNominal power76W; 274WIP ratingup to IP68

Motor typeBrush commutated DC motor Gearbox typeSpurSizeGearbox: 90mm; DC motor:80mmNominal voltage12V/24V DC or customizedGear ratio 1:3 ~1:150No load current0.40A; 0.50ANo load speed2000rpm; 3000rpmNominal current3.0A; 5.0ANominal speed1700rpm; 2600rpmPermissible load rangeup to 20.0N.m for S1 duty cycleNominal power45.0W; 80.0WIP ratingup to IP68
