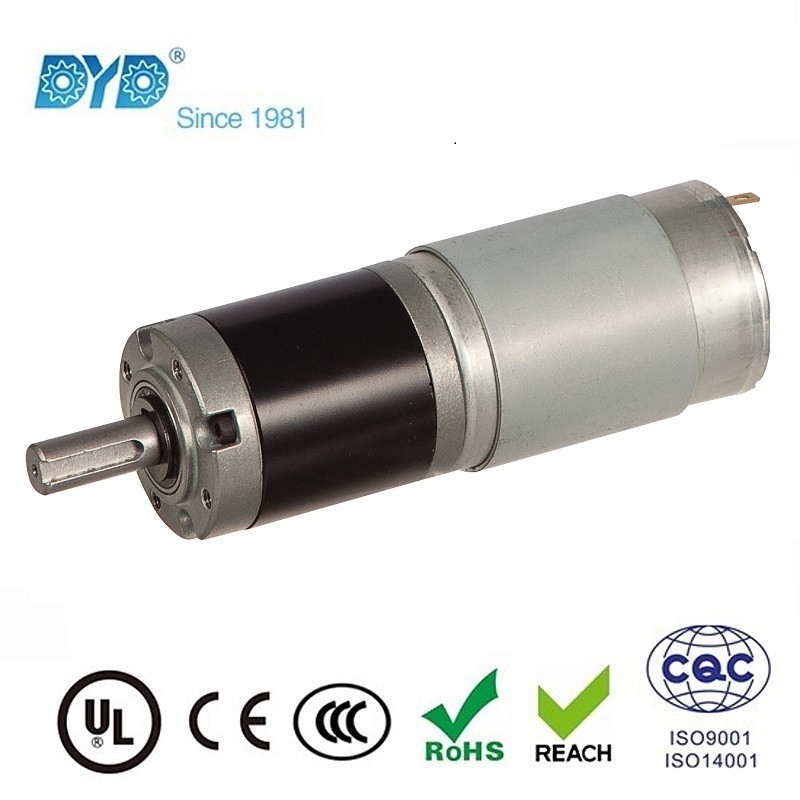

Motor typeCompact Carbon Brush commutated DC motorGearbox typePlanetaryDiameterGearbox: 36mm; DC motor: 36mmNominal voltage12V/24V DC or customizedGear ratio1:3.7 ~1:100No load current250mA; 150mANominal current1.6A; 0.85ANo load speed3000rpmNominal speed2400rpm; 2500rpmPermissible load range0.01N.m ~ 3.0N.m for S1 duty cycleNominal power10.0WIP ratingup to IP68

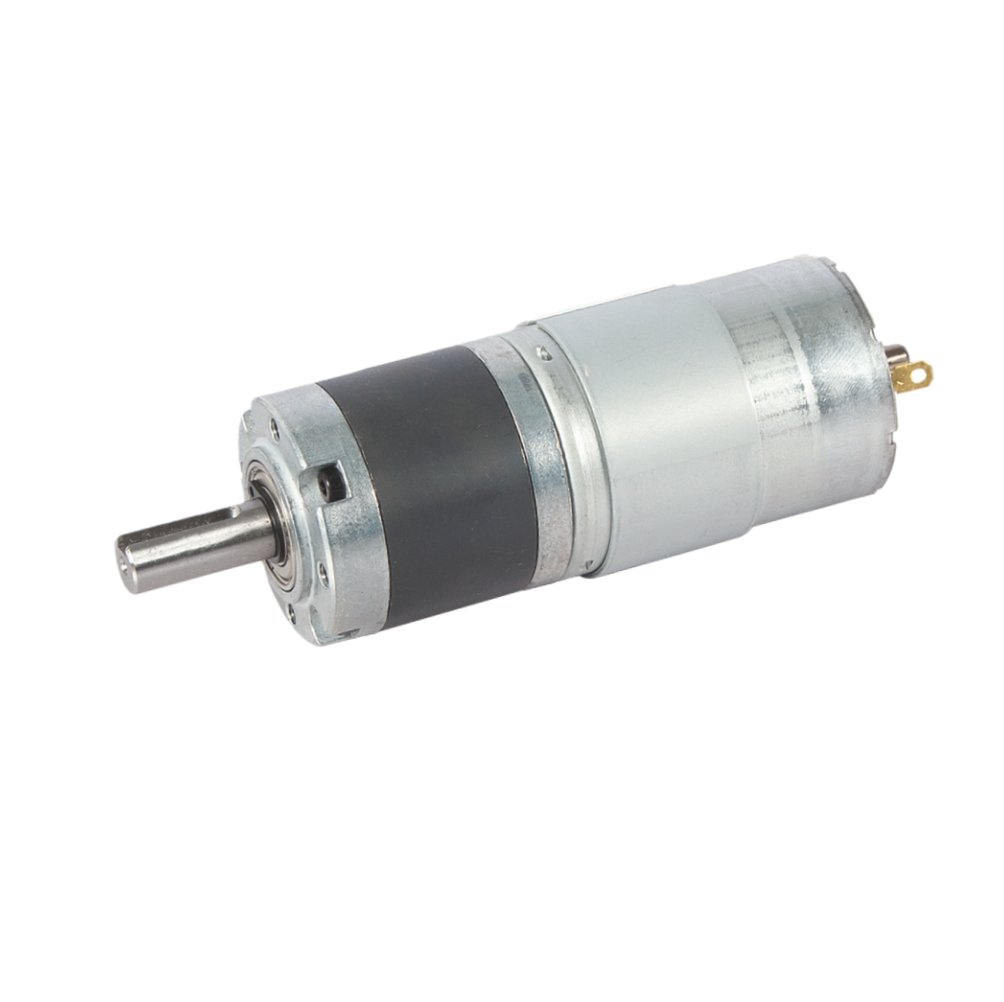

Motor typeBrush commutated DC motorGearbox typePlanetary DiameterGearbox: 36mm; DC motor:36mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1:218No load current800mA; 400mANominal current4.2A; 2.1ANo load speed7200rpmNominal speed5750rpmPermissible load range0.5N.m ~ 5.0N.m for S1 duty cycleNominal power22W; 23WIP ratingup to IP68

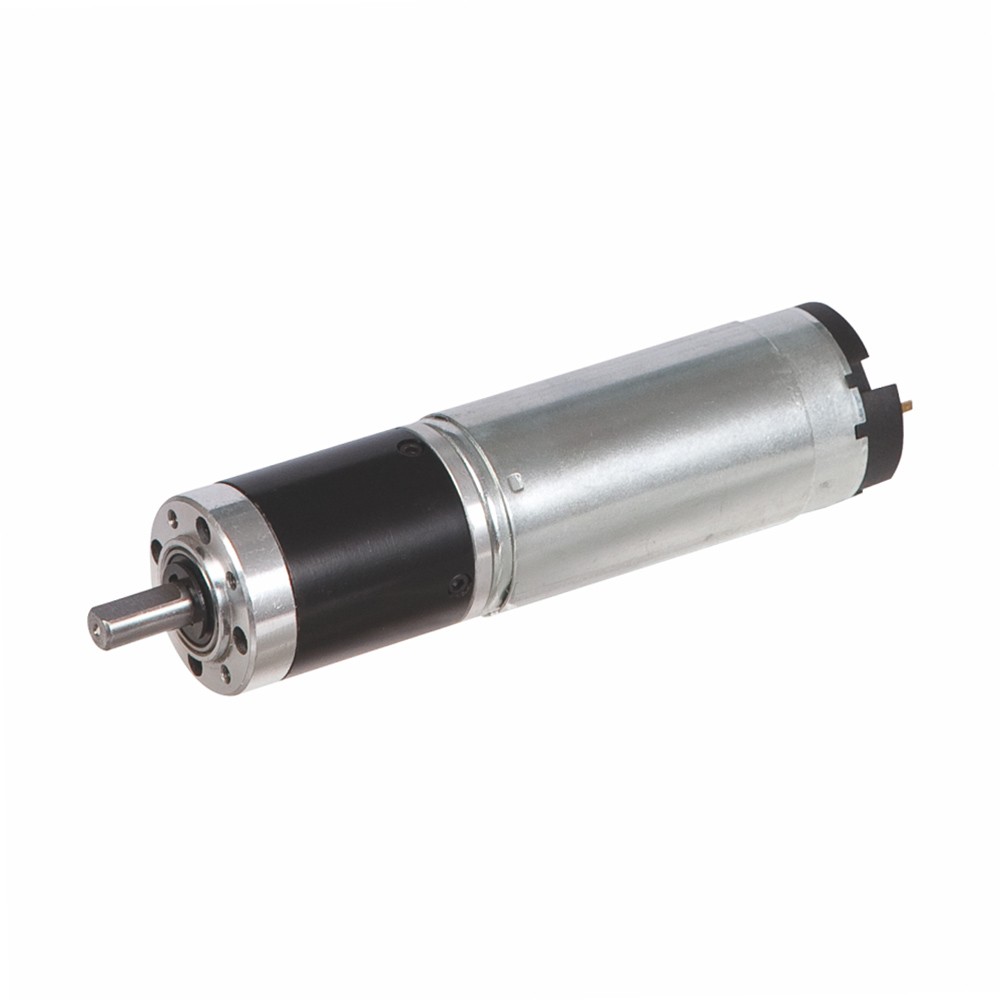

Motor typeBrushless DC motorGearbox typePlanetary Pole4Phase3DiameterGearbox: 32mm; DC motor: 33mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1: 139Peak current11ANo load speed9000rpmNominal speed7800rpmPermissible load range0.3N.m-3.0N.m for S1 duty cycleRated power40W

Motor typeBrush commutated permanent magnet DC motorOptional gearbox typePlanetary/Spur/Worm/Right Angle Diameter80mmLength 100mmNominal voltage12V/24V DC or customizedNo load current0.40A; 0.50ANo load speed2000rpm; 3000rpmNorminal current3.0A; 5.0ANominal speed1700rpm; 2600rpmNominal torque0.25N.m; 0.30N.mNominal power45W; 80WIP ratingup to IP68

DC RIGHT ANGLE GEAR MOTOR 70ZY97-24180 TYPICAL SPECS.:Voltage 24V DCRated Output Power 90WRated Torque 4.8N.mRated Speed 180RPM

Motor typeBrush commutated DC motor Gearbox typeSpurSizeGearbox: 90mm; DC motor:80mmNominal voltage12V/24V DC or customizedGear ratio 1:3 ~1:150No load current1.50A; 0.30ANo load speed3000rpm; 1700rpmNominal current12.0A; 3.0ANominal speed3000rpm; 1700rpmPermissible load rangeup to 20.0N.m for S1 duty cycleNominal power114.0W; 57.0WIP ratingup to IP68

Motor typeBrush commutated DC motorGearbox typePlanetary DiameterGearbox: 36mm; DC motor:36mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1:218No load current600mA; 300mANominal current3.0A; 1.5ANo load speed6200rpmNominal speed5000rpmPermissible load range0.5N.m ~ 5.0N.m for S1 duty cycleNominal power23W; 24WIP ratingup to IP68

Motor typeBrush commutated permanent magnet DC motorOptional gearbox typePlanetary/Spur/Worm/Right Angle Diameter80mmLength 115mmNominal voltage12V/24V DC or customizedNo load current1.5A; 0.30A; 0.50ANo load speed3400rpm; 2000rpm; 3000rpmNorminal current5.0A; 3.50A; 7.50ANominal speed2890rpm; 1700rpm; 2600rpmNominal torque0.14N.m; 0.32N.m; 0.44N.mNominal power42W; 57W; 120WIP ratingup to IP68

Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 92mm; DC motor: 80mmNominal voltage12V/24V DC or customizedGear ratio 1:4.3 ~1:322No load current0.50A; 1.60ANominal current7.0A; 15.00ANo load speed2000rpm; 3000rpmNominal speed1600rpm; 2400rpmPermissible load rangeup to 150N.m for S1 duty cycleNominal power120W; 240WIP ratingup to IP68

Motor typeBrushless DC motorGearbox typePlanetary Pole8Phase3DiameterGearbox: 36mm; DC motor: 36mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1: 264No load speed3000rpmNominal speed2100rpmPermissible load range0.3N.m-3.0N.m for S1 duty cycleRated power7W;10W

Motor typeBrush commutated DC motor Gearbox typeSpurSizeGearbox: 90mm; DC motor:83mmNominal voltage12V/24V DC or customizedGear ratio 1:3 ~1:150No load current0.80A; 0.90ANo load speed2000rpm; 3000rpmNominal current3.50A; 4.60ANominal speed1700rpm; 2500rpmPermissible load rangeup to 20.0N.m for S1 duty cycleNominal power42.0W; 77.0WIP ratingup to IP68

DC WORM GEARED MOTOR 73ZY-90WJ TYPICAL SPECS.:Voltage 48V DCRated Torque 7N.mRated  Speed 88RPMGear Ratio 25/1orVoltage 48V DCRated Torque 11N.mRated  Speed 55RPMGear Ratio 40/1
