76ZY DC BRUSH MOTOR TYPICAL SPECS.·  Voltage 230V DC·  No-load Speed 3500RPM·  Rated Torque 80.1mN.m·  Output Power 35.9W·  Rated Current 0.29A·  Max. Eff. 51.0%

73ZY DC BRUSH MOTOR GENERAL SPECS.·  Motor OD: 73·  Voltage: 12V DC, 24V DC, 48V DC, 110V DC, 300V DC·  Power: 40W ~ 350W·  Output Speed: 750 ~ 9000RPM·  Without Gearbox·  Customized shaft & front cover available upon request73ZY DC BRUSH MOTOR TYPICAL SPECS.Model No.VoltageRated PowerRated SpeedRated TorqueRated CurrentNo Load SpeedLUnitsVWrpmmN.mArpmmm73ZYT12-901290440020011.00490012573ZYT12-12012120370030015.00420014573ZYT12-13512135320040016.50360015573ZYT12-15012150300050018.00340016073ZYT24-1002410047002005.50520012573ZYT24-1302413039003007.50450014573ZYT24-1452414534004008.50390015573ZYT24-1702417032005009.003600165

GEARMOTOR SPECS AND FEATURE: Motor Size 54mm OD x 95mm LengthMotor Power up to 40W15 : 1 or 72 : 1 gear ratio.Optional: Encoder / Brake / Connector

Motor typeBrush commutated DC motorGearbox typePlanetaryDiameterGearbox: 92mm; DC motor: 80mmNominal voltage12V/24V DC or customizedGear ratio1:95 ~1:772No load current0.5A; 0.6ANominal current7.0A; 9.0ANo load speed1500rpm; 2000rpmNominal speed1250rpm; 1600rpmPermissible load rangeup to 450N.m for S1 duty cycleNominal power105.0W; 150.0WIP ratingup to IP68

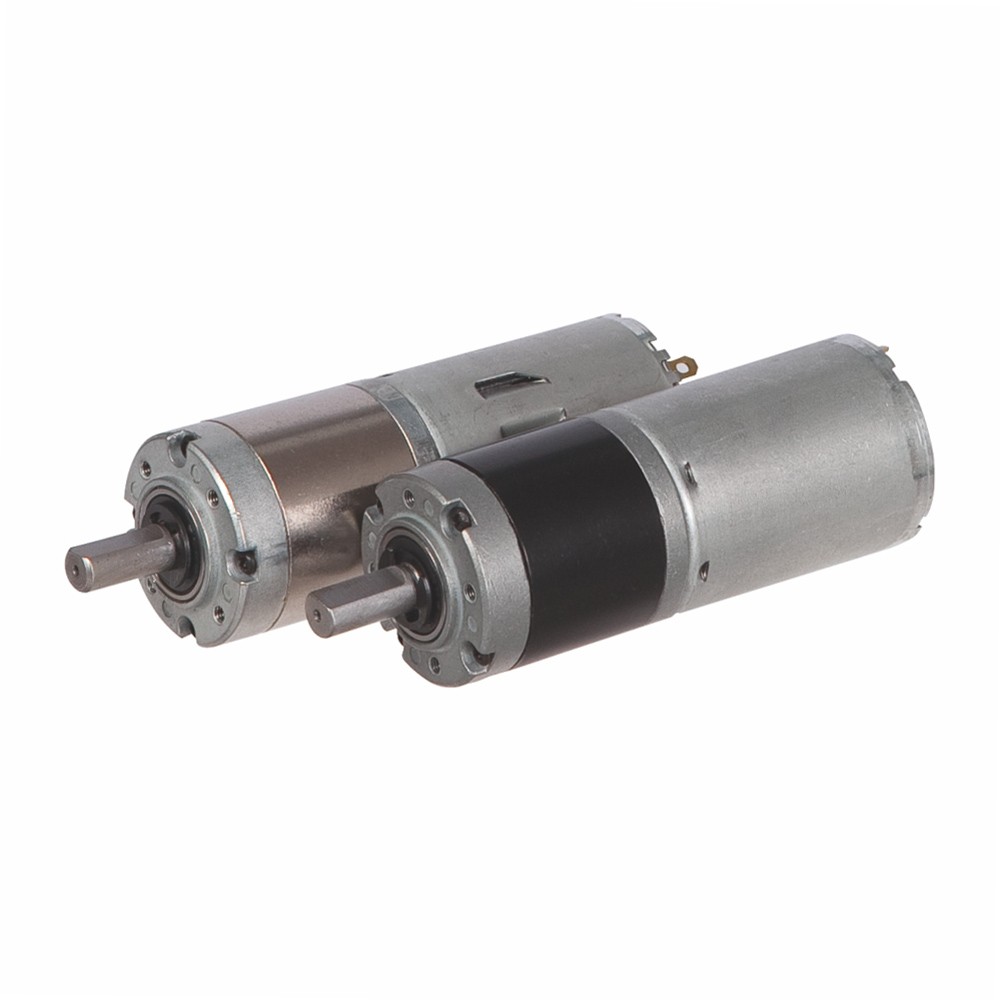

Motor typeCompact Carbon Brush commutated DC motorGearbox typePlanetaryDiameterGearbox: 36mm; DC motor: 36mmNominal voltage12V/24V DC or customizedGear ratio1:3.7 ~1:516No load current100mA; 120mANominal current520mANo load speed3000rpm; 4200rpmNominal speed2500rpm; 3600rpmPermissible load range0.01N.m ~ 3.0N.m for S1 duty cycleNominal power4.5W; 7.0WIP ratingup to IP68

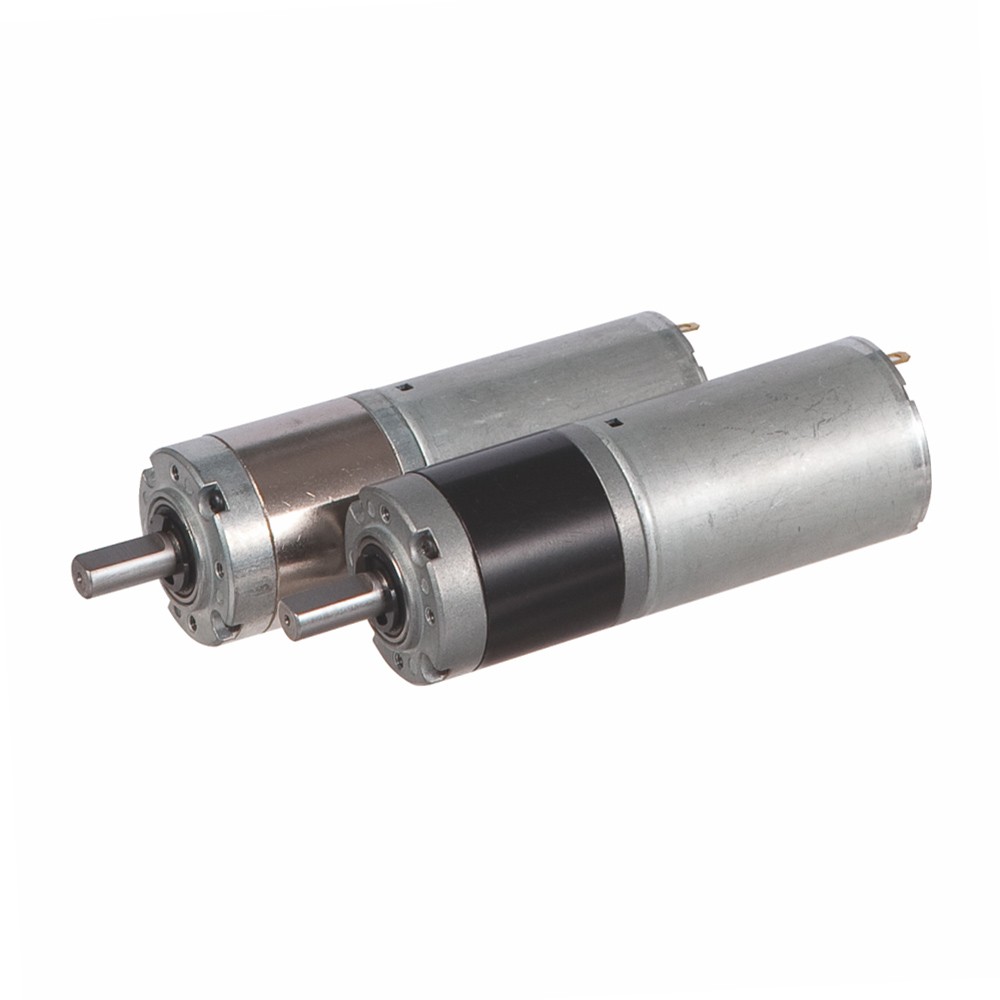

Motor typeCompact Carbon Brush commutated DC motorGearbox typePlanetaryDiameterGearbox: 36mm; DC motor: 36mmNominal voltage12V/24V DC or customizedGear ratio1:3.7 ~1:516No load current100mA; 120mANominal current400mA; 600mANo load speed3600rpm; 4200rpmNominal speed3000rpm; 3450rpmPermissible load range0.01N.m ~ 3.0N.m for S1 duty cycleNominal power3.4W; 4.2WIP ratingup to IP68

Motor typeBrushless DC motorGearbox typePlanetary Pole4Phase3DiameterGearbox: 32mm; DC motor: 33mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1: 369Peak current0.64ANo load speed4500rpmNominal speed3000rpmPermissible load range0.3N.m-3.0N.m for S1 duty cycleRated power7W

Motor typeBrush commutated permanent magnet DC motorOptional gearbox typePlanetary/Spur/Worm/Right Angle Diameter71mmLength 110mmNominal voltage12V/24V DC or customizedNo load current0.40A; 0.50ANo load speed2000rpm; 3000rpmNorminal current2.40A; 3.50ANominal speed1600rpm; 2400rpmNominal torque200mN.m; 240mN.mNominal power33W; 59WIP ratingup to IP68

Motor typeBrush commutated DC motor Gearbox typeSpurSizeGearbox: 90mm; DC motor:80mmNominal voltage12V/24V DC or customizedGear ratio 1:3 ~1:150No load current0.30A; 0.50ANo load speed2000rpm; 3000rpmNominal current3.5A; 7.50ANominal speed1700rpm; 2600rpmPermissible load rangeup to 20.0N.m for S1 duty cycleNominal power57.0W; 120.0WIP ratingup to IP68

Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 36mm; DC motor:36mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1:354No load current260mA; 130mANominal current1.6A; 0.8ANo load speed6000rpmNominal speed5000rpmPermissible load range0.3N.m ~ 3.0N.m for S1 duty cycleNominal power13.1W; 13.5WIP ratingup to IP68

Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 92mm; DC motor: 80mmNominal voltage12V/24V DC or customizedGear ratio 1:4.3 ~1:422No load current0.50A; 0.80ANominal current3.0A; 7.50ANo load speed1300rpm; 3000rpmNominal speed960rpm; 2400rpmPermissible load rangeup to 150N.m for S1 duty cycleNominal power24W; 120WIP ratingup to IP68
