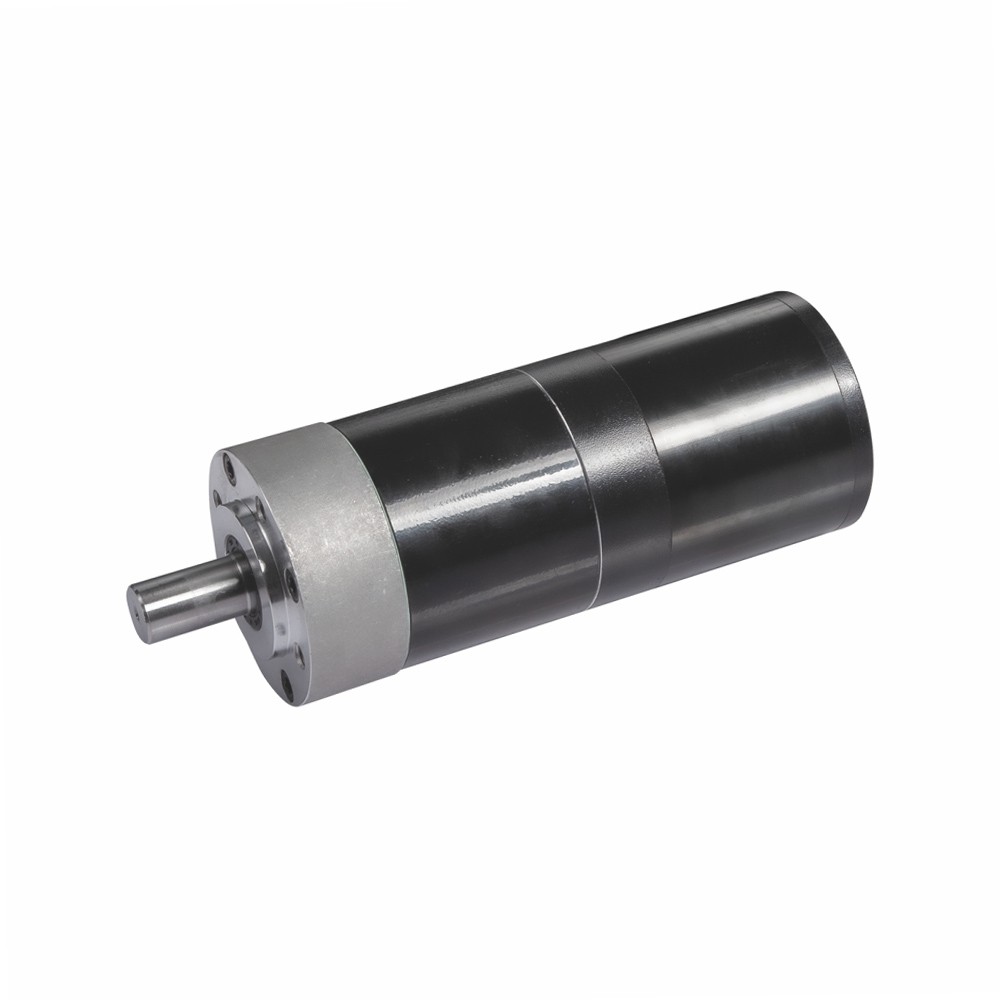

Motor typeBrushless DC motorGearbox typePlanetary DiameterGearbox: 56mm; DC motor: 57mmNominal voltage24V/36V DC or customizedGear ratio 1:3.6~1: 76No load current0.80ANominal current14.0A;10.0ANo load speed4000rpmNominal speed3000rpmPermissible load range2N.m-30N.m for S1 duty cycleRated power250W

35ZY-6078 PARALLEL SHAFT GEAR MOTOR TYPICAL SPECS.:· Voltage 12 ~ 48V DC· Rated Speed 0.6 ~ 300RPM· Gearbox Ratio 100/1 ~ 3000/1

  104ZY DC BRUSH MOTOR GENERAL SPECS.·  Motor OD: 105mm·  Voltage: 12V DC, 24V DC, 48V DC, 110V DC, 300V DC·  Power: 250W ~ 1000W·  Output Speed: 750 ~ 6000RPM·  Without Gearbox·  Customized shaft & front cover (NEMA 48C, NEMA 56C, IEC 63/71/80 B5/B14) available upon request104ZY DC BRUSH MOTOR TYPICAL SPECS.Model No.VoltageRated PowerRated SpeedRated TorqueRated CurrentNo Load SpeedLUnitsVWrpmmN.mArpmmm104ZY24-4002440014002700201800214

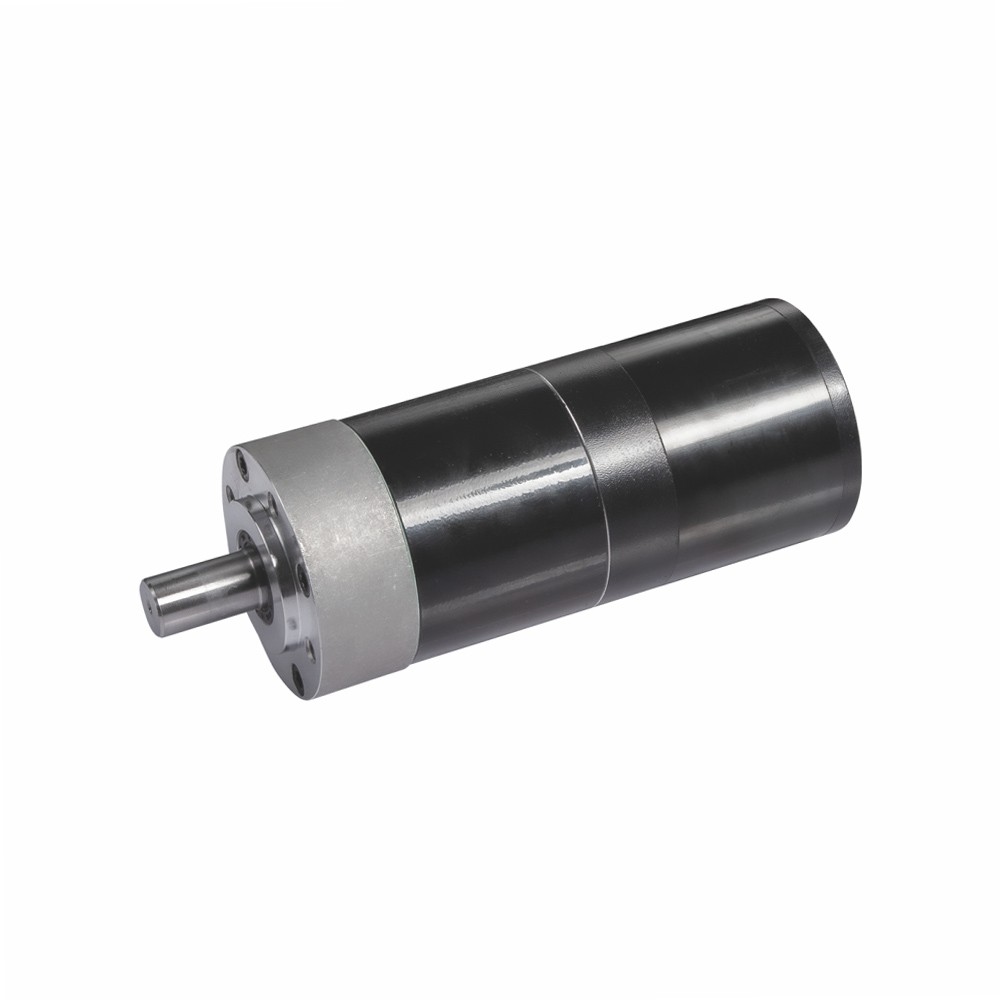

Motor typeBrushless DC motorGearbox typePlanetaryPole10Phase3DiameterGearbox: 80mm; DC motor: 80mmNominal voltage12V/24V DC or customizedGear ratio 1:5.6 ~ 1:842Rated current15.63A; 18.23ANo load speed4000rpm; 4700rpmNominal speed3000rpm; 3900rpmPermissible load range2.0N.m ~ 300.0N.m for S1 duty cycleRated power300W; 350WIP ratingup to IP68

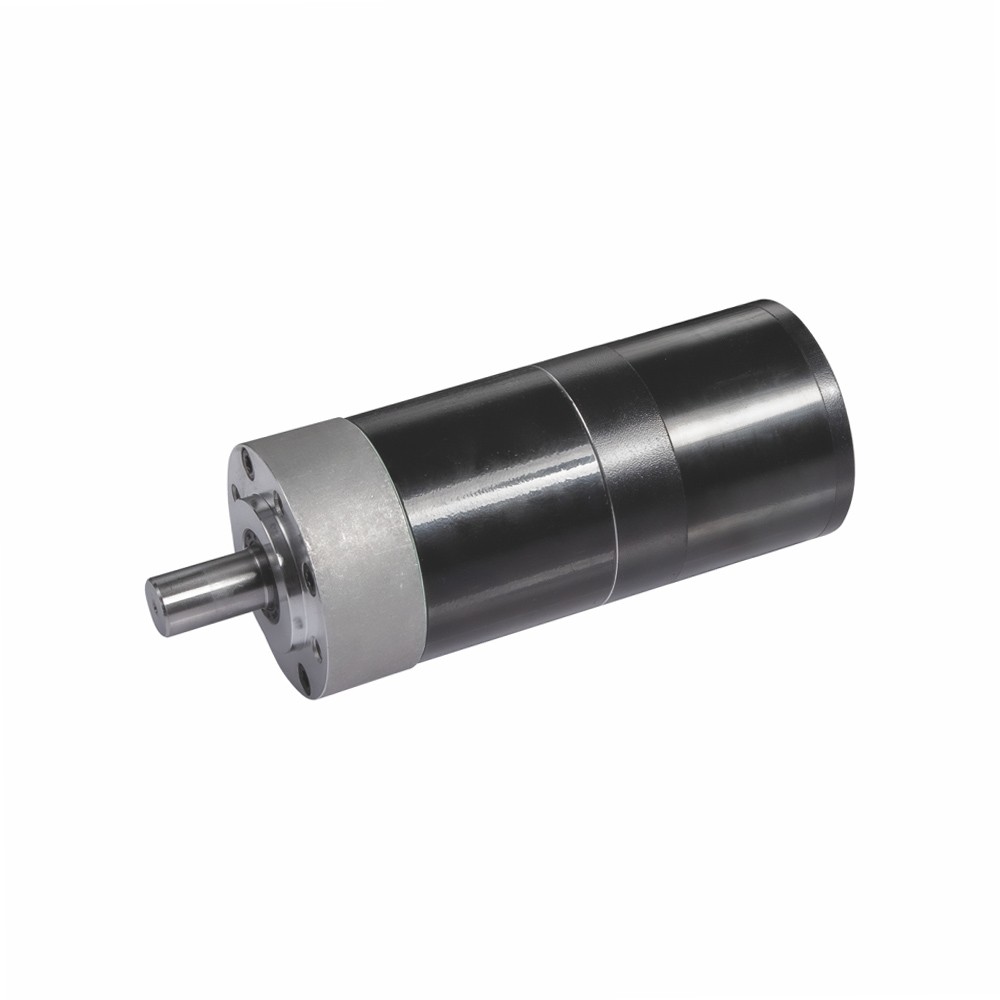

Motor typeBrushless DC motorGearbox typePlanetaryPole10Phase3DiameterGearbox: 80mm; DC motor: 80mmNominal voltage12V/24V DC or customizedGear ratio 1:5.6 ~ 1:842Rated current10.42A; 13.02ANo load speed4000rpm; 5000rpmNominal speed3000rpm; 4000rpmPermissible load range1.0N.m ~ 300.0N.m for S1 duty cycleRated power200W; 250WIP ratingup to IP68

Motor typeBrushless DC motorGearbox typePlanetaryPole10Phase3DiameterGearbox: 80mm; DC motor: 80mmNominal voltage12V/24V DC or customizedGear ratio 1:5.6 ~ 1:842Rated current5.21A; 7.81ANo load speed4000rpm; 4900rpmNominal speed3000rpm; 4000rpmPermissible load range1.0N.m ~ 200.0N.m for S1 duty cycleRated power100W; 150WIP ratingup to IP68

Motor typeBrushless DC motorGearbox typeSpurDiameterGearbox: 60mm; DC motor: 57mmNominal voltage12V/24V DC or customizedGear ratio 1:3~1: 90No load current200mA;400mANominal current1.2A;2.0ANo load speed2000rpm;3000rpmNominal speed1300rpm;2250rpmPermissible load range2N.m-5N.m for S1 duty cycleRated power10W;25W

Motor typeBrushless DC motorGearbox typeSpurDiameterGearbox: 60mm; DC motor: 57mmNominal voltage12V/24V DC or customizedGear ratio 1:3~1:30No load current400mA;450mANominal current2.8A;4.0ANo load speed2000rpm;3000rpmNominal speed1200rpm;2000rpmPermissible load range2N.m-5N.m for S1 duty cycleRated power40W;60W

45ZY12-70120 DC PARALLEL SHAFT GEAR MOTOR TYPICAL SPECS.: · Voltage 12V DC· Rated Current 2.15A· No-load Speed 4RPM· Rated Speed 2.8RPM· Rated Torque 10N.m· Gearbox Ratio 1010/1 ( Other Ratios Available Upon Request )

110ZYT 4-POLE PERMANENT MAGNET DC MOTOR TYPICAL SPECS.· Voltage: 24V DC· Rated Output Power: 700W· Rated Speed: 3000RPM· Without Gearbox· Customized shaft & front cover (NEMA 48C, NEMA 56C,  IEC61/71/80 B5/B14, NEMA 143TC/145TC, TENV, TEFC) available upon request

DC RIGHT ANGLE GEARMOTOR 90ZYT/140WJ TYPICAL SPECS.:·  Voltage 12V DC·  Current approx. 25A·  Rated Torque 35N.m·  Rated Speed 34RPM·  Gearbox Ratio 134 : 1 / Two-stage
