① Characteristics

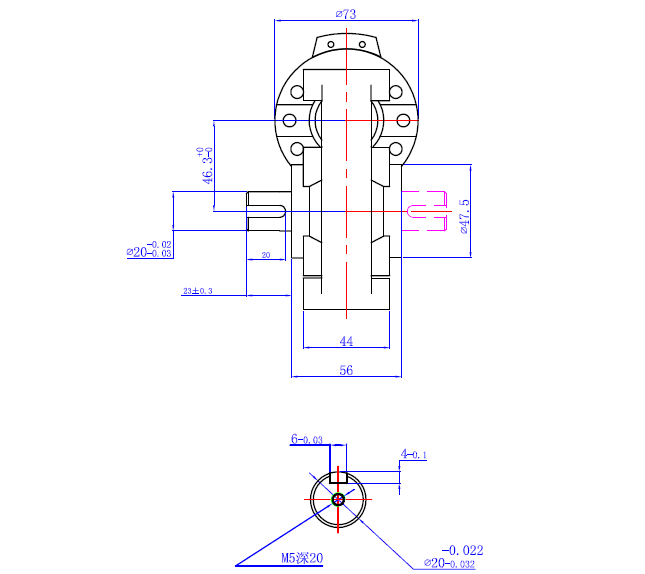

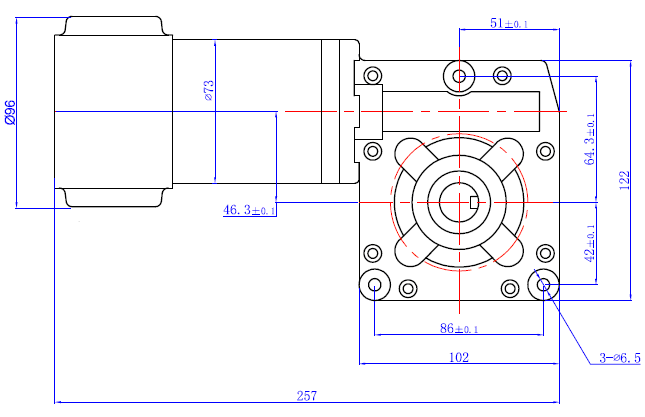

DC WORM GEARED MOTOR 73ZYT/102WJ TYPICAL SPECS.:

• Voltage 12V DC

• Current approx. 20A

• Motor Output Power 180W

• Rated Speed 136rpm

• Rated Torque 5.3N.m

• Gearbox Reduction Ratio 25 : 1



• Voltage 12V DC

• Current approx. 90A

• Motor Output Power 320W

• Rated Speed 20rpm

• Rated Torque 62N.m

• Gearbox Reduction Ratio 50 : 1



② Description
