Motor typeBrushless DC motorGearbox typePlanetary Pole10Phase3DiameterGearbox: 42mm; DC motor: 42mmNominal voltage12V/24V DC or customizedGear ratio 1:4.44 ~1: 515Nominal current1.2ANo load speed4000rpmNominal speed3000rpmPermissible load range2N.m ~ 20N.m for S1 duty cycleDriverBuilt-in driverRated power21W

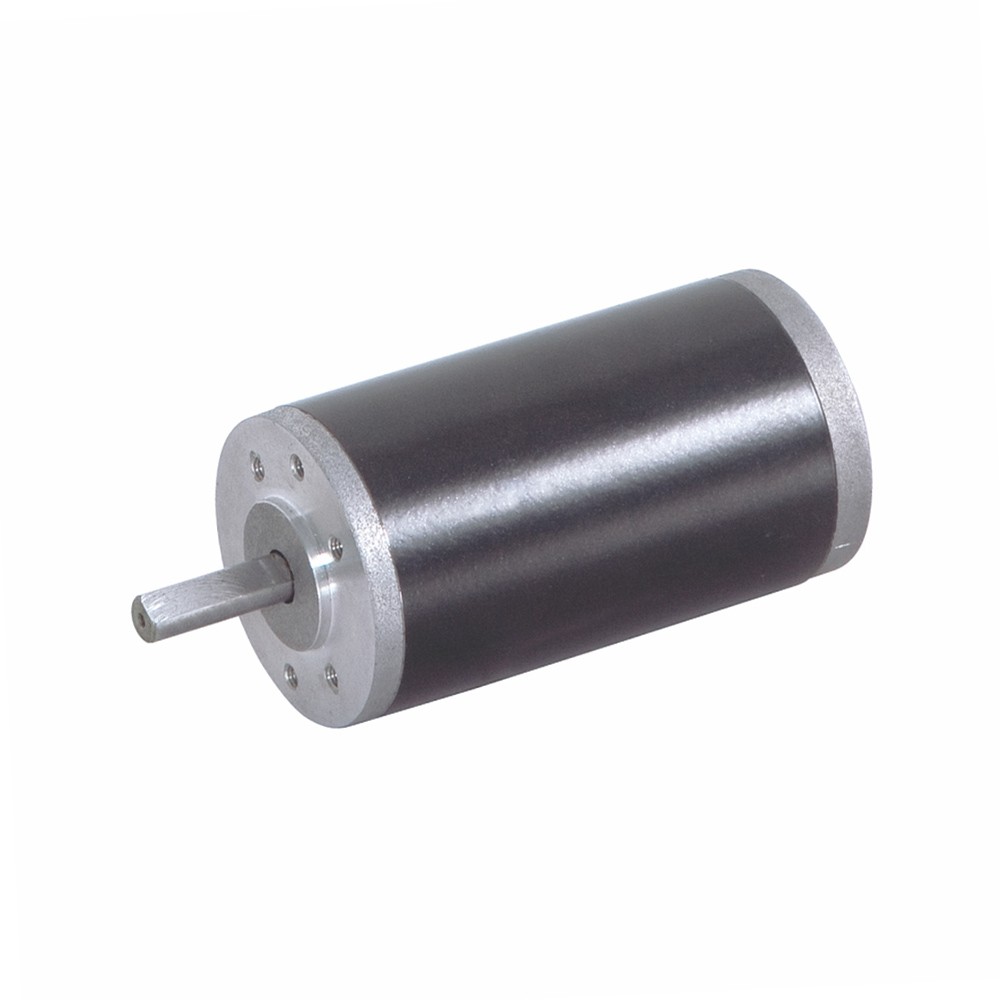

Motor typeBrush commutated permanent magnet DC motorOptional gearbox typePlanetary/Spur/Worm/Right Angle Diameter52mmLength 95mmNominal voltage12V/24V DC or customizedNo load current0.20A; 0.30A; 0.40A; No load speed2000rpm; 3000rpm;4000rpmNorminal current1.20A; 1.80A; 3.0ANominal speed1600rpm; 2400rpm; 3200rpmNominal torque80mN.m; 100mN.m; 130mN.m; Nominal power15W; 25W; 40WIP ratingup to IP68

IP68 450N.m Pool Cover Motor Typical Specs.:Voltage 24V DCLoad Current 15ANo-Load Speed 4.5rpmRated Speed 3.3rpmRated Torque 300N.m for Continuous Running(Rated Torque 450N.m for Intermittent Running )Gear Ratio 665/1 ( 4 Stage )Stainless Steel Shaft SS316With Inductive Sensor PNP( or Magnetic Encoder ) & a 1.5N.m BrakeIP68

Motor typeNema 17 Hybrid Square Stepper MotorGearbox typePlanetary Phase2Step Angle1.8º or 0.9º or 3.6ºStep Angle Accuracy±5% (full step, no load)Gear ratio 1:3.82 ~1:346Permissible load range6N.m ~ 20N.m for S1 duty cycleTemperature Rise80℃ Max. (rated current, 2 phase on)Ambient Temperature-20℃ ~+50℃Insulation Resistance100MΩ Min., 500V DCDielectric Strength500V AC for one minuteIP ratingup to IP68

Motor typeBrush commutated DC motor with shielding coverGearbox typePlanetary DiameterGearbox: 32mm; DC motor:28mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1:596No load current150mA; 85mANominal current530mA; 250mANo load speed6500rpmNominal speed5290rpm; 5250rpmPermissible load range0.3N.m ~ 3.0N.m for S1 duty cycleNominal power2.8W; 8WIP ratingup to IP68

Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 56mm; DC motor: 60mmNominal voltage12V/24V DC or customizedGear ratio 1:3.6 ~1:234No load current0.40A; 0.50ANominal current1.80A; 3.0ANo load speed2000rpm; 3000rpmNominal speed1600rpm; 2400rpmPermissible load range2.0N.m ~ 30.0N.m for S1 duty cycleNominal power25W; 40WIP ratingup to IP68

DC Geared Motors for Solar Tracking System / Solar Tracking Motors/Solar Automatic Tracker Motors / Tubular GearmotorsSOLAR TRACKER GEAR MOTOR 80ZY115-2413/110JX467G2558 SPECS & FEATURE   Voltage 24V DC  No-Load Current 1A  Rated Current 3A  No-Load Speed 2.8rpm  Rated Speed 2.2rpm  Rated Torque 145N.m  Max. Torque 250N.m  With 2 channel 2ppr Encoder  Gear Ratio 467/1

Model No.VoltageRated PowerRated SpeedRated TorqueRated CurrentNo Load SpeedNo Load CurrentUnitsVWrpmmN.mArpmA52ZY125-1233124730001555.833000.4552ZY125-2433245230001703.033000.2052ZY125-4036405833001702.036000.1552ZY125-6037606034501701.437000.10

52ZY PERMANENT MAGNET DC MOTOR TYPICAL SPECS.:Model No.VoltageRated PowerRated SpeedRated TorqueRated CurrentLUnitsVWrpmmN.m< Amm52ZY12-2012202500782.58152ZY24-2524253000821.552ZY24-2024202500781.252ZY12-20122012001602.590.552ZY40-60406033001752.0125

Reduction ratio292156714741841138323.414.6810.62167137.9Length ( L )      mm27242227242422191919242219Voltage          VDC66612121212121212242424No-load speed  RPM153060530501002003608002060120Rated speed  RPM10.521423.5213570140256560144284Rated torque  kg.cm1.40.750.352.91.450.871.40.510.220.312.90.950.46Rated Current   A0.220.220.220.10.160.160.400.220.200.580.130.130.13

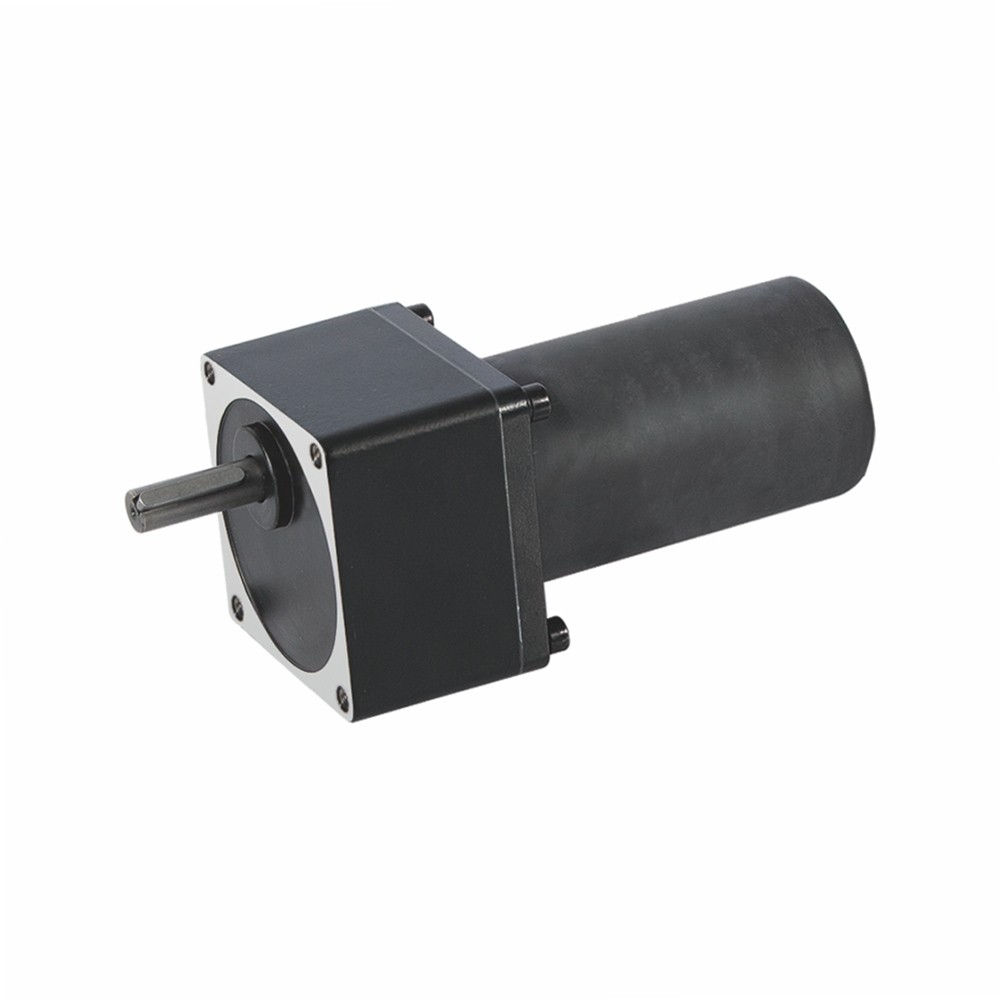

Motor typeBrush commutated DC motor Gearbox typeSpurSizeGearbox: 60mm; DC motor:60mmNominal voltage12V/24V DC or customizedGear ratio 1:3 ~1:150No load current0.25A; 0.35ANo load speed2000rpm; 3000rpmNominal current1.80A; 2.20ANominal speed1600rpm; 2400rpmPermissible load rangeup to 5.0N.m for S1 duty cycleNominal power30.0W; 45.0WIP ratingup to IP68
