Fitted Motor type             Brush/brushless/stepper/AC motorsGearbox typePlanetaryDiameter110mmBearing at outputBall bearingGear ratio1:4.8 ~1:1068Ring gear materialMetal or powder metalMax. radial load(10mm from flange)1500NMax. shaft axial load300NRadial play of shaft(near to flange)Not over 0.08mmAxial play of shaftNot over 0.4mmPermissible load range40.0N.m ~ 250.0N.m for S1 duty cycleMotor max. inout speedLess than 6000rpmMax. shaft press fit force2000N

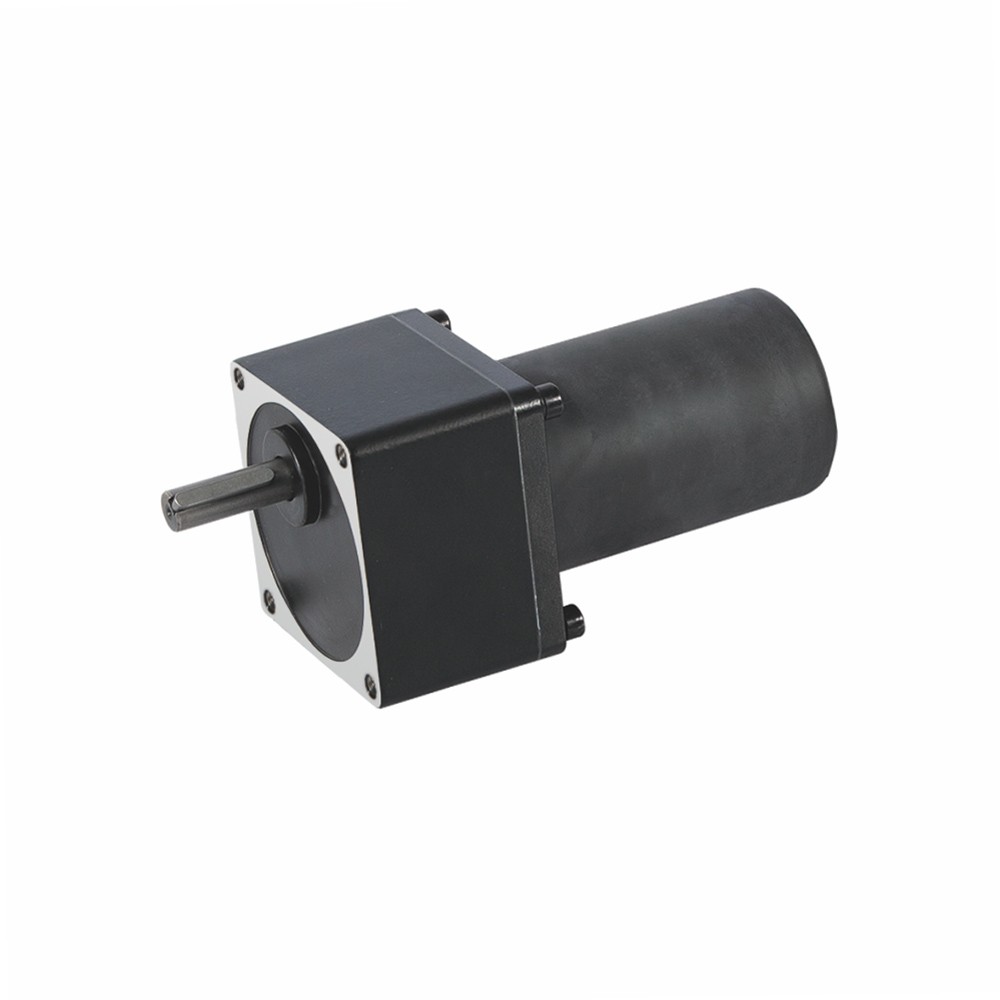

Motor typeAC Three-Phase MotorGearbox typeSpurDiameter90mmNominal voltage230V;380VGear ratio 1:3 ~1:180Current0.38A;0.66AFrequency50Hz/60HzNominal speed1300rpmPermissible load rangeUp to  20N.m for S1 duty cycleNominal power90W

Motor typeAC Single-Phase MotorGearbox typeSpurDiameter90mmNominal voltage115V;230VGear ratio 1:3 ~1:180Current0.73A;1.40A;1.55AFrequency50Hz/60HzNominal speed1300rpmPermissible load rangeUp to 20.0N.m for S1 duty cycleNominal power90W

Motor typeBrushless DC motorGearbox typePlanetary Pole10Phase3DiameterGearbox: 42mm; DC motor: 42mmNominal voltage12V/24V DC or customizedGear ratio 1:4.44 ~1: 515Nominal current1.2ANo load speed4000rpmNominal speed3000rpmPermissible load range2N.m ~ 20N.m for S1 duty cycleDriverExternal driverRated power21W

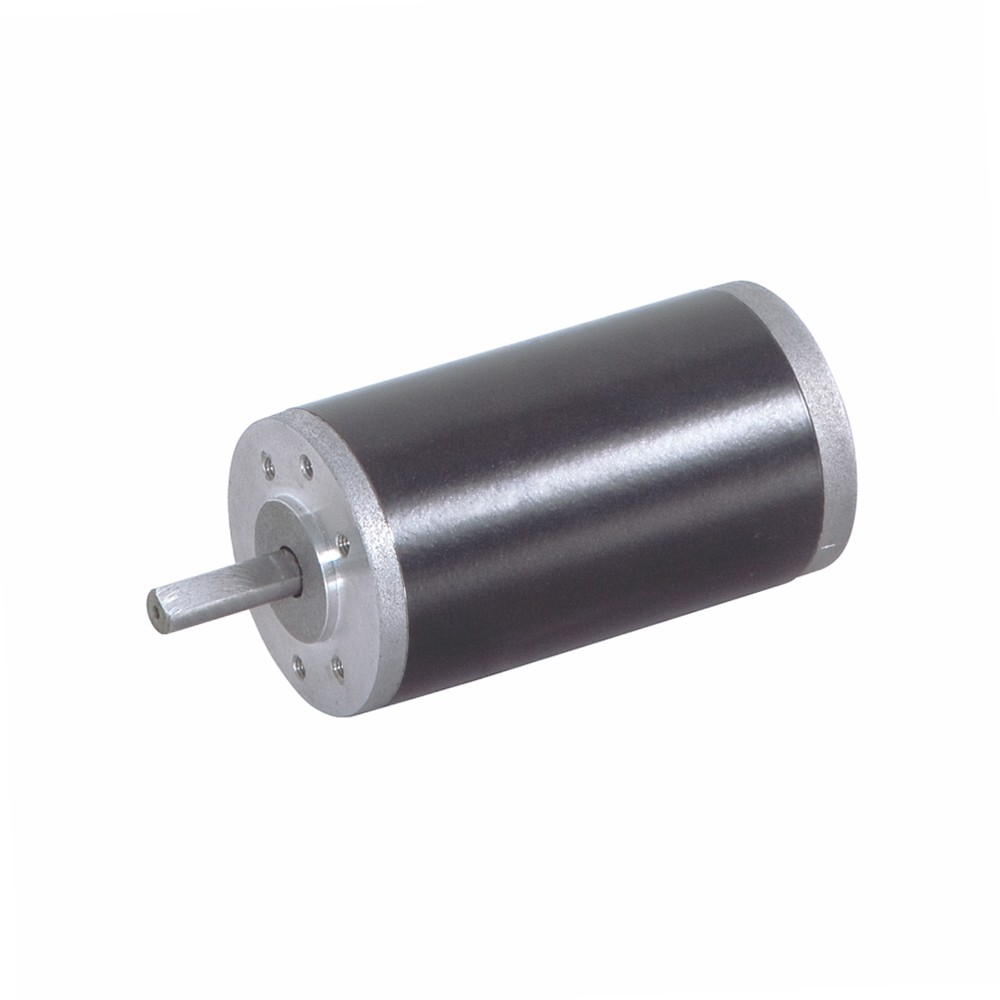

Motor typeBrush commutated permanent magnet DC motorOptional gearbox typePlanetary/Spur/Worm/Right Angle Diameter52mmLength 125mmNominal voltage12V/24V DC or customizedNo load current0.40A; 0.60A; 0.80A; No load speed2000rpm; 3000rpm;4000rpmNorminal current2.0A; 3.50A; 4.50ANominal speed1600rpm; 2400rpm; 3200rpmNominal torque160mN.m; 190mN.m; 220mN.m; Nominal power30W; 50W; 80WIP ratingup to IP68

CUSTOM CARAVAN MOTOR MOVER INCLUDES ONE BIG DC WORM GEAR MOTOR & ONE SMALL PLANETARY GEAR MOTOR

Motor typeNema 17 Hybrid Square Stepper MotorGearbox typePlanetary Phase2Step Angle1.8º or 0.9º or 3.6ºStep Angle Accuracy±5% (full step, no load)Gear ratio 1:3.82 ~1:346Permissible load range6N.m ~ 20N.m for S1 duty cycleTemperature Rise80℃ Max. (rated current, 2 phase on)Ambient Temperature-20℃ ~+50℃Insulation Resistance100MΩ Min., 500V DCDielectric Strength500V AC for one minuteIP ratingup to IP68

Motor typeBrush commutated DC motor with shielding coverGearbox typePlanetary DiameterGearbox: 32mm; DC motor:28mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1:596No load current150mA; 85mANominal current900mA; 500mANo load speed7300rpmNominal speed5950rpm; 6160rpmPermissible load range0.3N.m ~ 3.0N.m for S1 duty cycleNominal power6.7W; 8.2WIP ratingup to IP68

Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 56mm; DC motor: 60mmNominal voltage12V/24V DC or customizedGear ratio 1:3.6 ~1:234No load current0.25A; 0.35A; 0.50ANominal current1.80A; 2.20A; 6.0ANo load speed2000rpm; 3000rpm; 5000rpmNominal speed1600rpm; 2400rpm; 4000rpmPermissible load range2.0N.m ~ 30.0N.m for S1 duty cycleNominal power30W; 45W; 90WIP ratingup to IP68

Reduction ratio2241841843131121843131Length ( L )      mm29.529.529.525.725.725.729.525.725.7Voltage          VDC121212121212242424No-load speed  RPM10154015032245020120150Rated speed  RPM710.5281052253151484105Rated torque  kg.cm2026.449.38.58.64.0121.611.5Rated Current   A0.641.025.322.804.302.890.930.931.48

Motor typeBrush commutated DC motor Gearbox typeSpurSizeGearbox: 70mm; DC motor:60mmNominal voltage12V/24V DC or customizedGear ratio 1:3 ~1:150No load current0.30A; 0.40A; 0.25A; 0.35ANo load speed2000rpm; 3000rpmNominal current0.80A; 1.20A; 1.80A; 2.20ANominal speed1600rpm; 2400rpmPermissible load rangeup to 8.0N.m for S1 duty cycleNominal power8.0W; 17.0W; 30.0W; 45.0WIP ratingup to IP68

APPLICATIONS·  Solar Tracking Motor, Solar Tracker Motor etc.MOTOR SPECS & FEATURE·  Motor Type: Brushed DC Motor·  Motor Size: 63mm·  Voltage: 60VDC, 110VDC·  Rated Speed 3.4rpm·  Rated Torque each output shaft 60N.m·  Ambient Temperature: - 40 ~ + 70 Degr. ·  With Two Planetary Gearboxes and One Worm Gearbox·  Without Encoder·  IP54
