Motor typeMicro Brush commutated DC motorGearbox typePlanetaryDiameterGearbox: 32mm; DC motor: 28mmNominal voltage12V/24V DC or customizedGear ratio1:3.7 ~1:939No load current150mA; 85mANominal current530mA; 250mANo load speed6500rpmNominal speed5250rpmPermissible load range0.01N.m ~ 2.0N.m for S1 duty cycleNominal power4.2WIP ratingup to IP68

Motor typeMicro Brush commutated DC motorGearbox typePlanetaryDiameterGearbox: 28mm; DC motor: 28mmNominal voltage12V/24V DC or customizedGear ratio1:3.7 ~1:721No load current80mA; 100mA; 70mANominal current350mA;370mA; 230mANo load speed4000rpm; 5000rpm; 5000rpmNominal speed2600rpm; 3450rpm; 3800rpmPermissible load range0.01N.m ~ 3.0N.m for S1 duty cycleNominal power1.86W; 2.48W; 2.78WIP ratingup to IP68

Fitted Motor type                   Brush/brushless/stepper/AC motorsGearbox typePlanetaryDiameter56mm; 60mmBearing at outputBall bearingGear ratio1:3.6 ~1:1500Ring gear materialMetal or powder metalMax. radial load(10mm from flange)300NMax. shaft axial load200NRadial play of shaft(near to flange)Not over 0.08mmAxial play of shaftNot over 0.4mmPermissible load range3.0N.m ~ 30.0N.m for S1 duty cycleMotor max. inout speedLess than 8000rpmMax. shaft press fit force300N

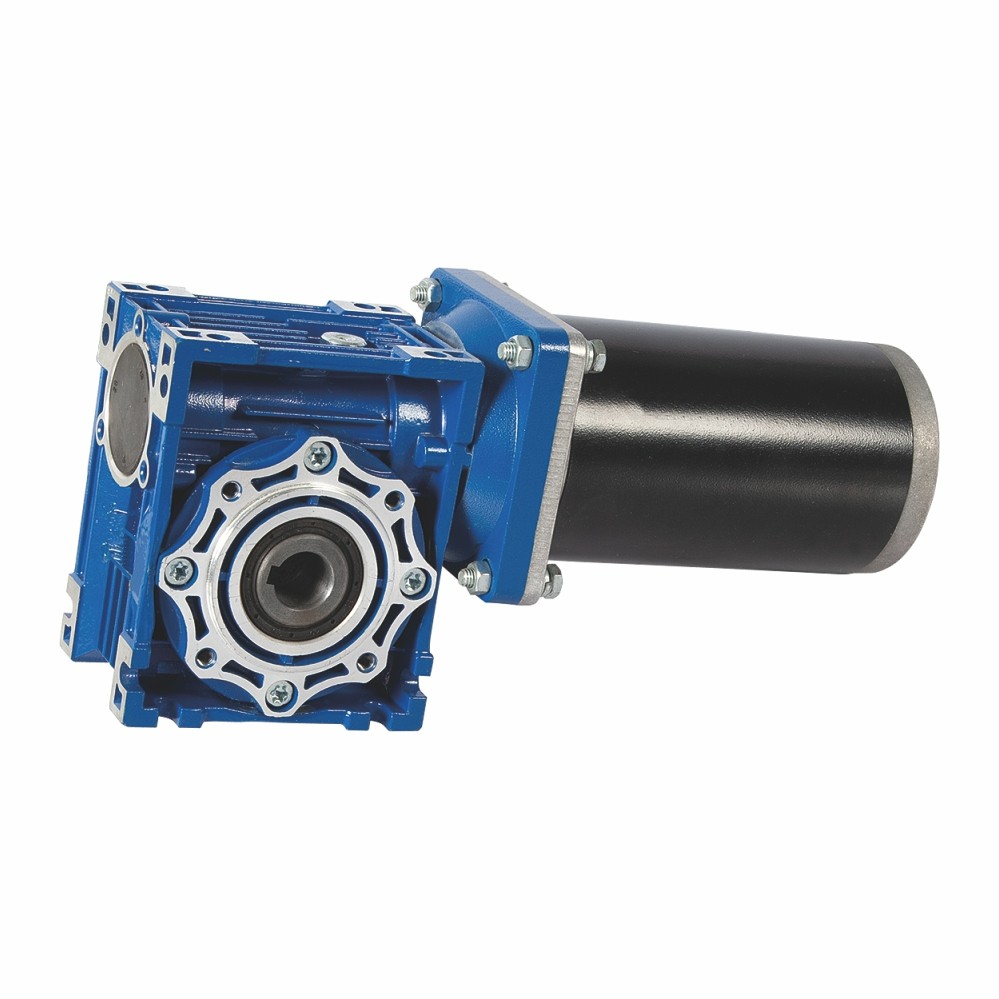

DC RIGHT ANGLE GEAR MOTOR DYD29530L01 SPECS AND FEATURE:Motor Size 92mm ODVoltage 24V DCNo-Load Speed 30RPMRated Speed 25RPMRated Torque 18N.mGear Ratio 49/1 Duty Cycle: Continuous

Motor typeAC Three-Phase MotorGearbox typeSpurDiameter70mmNominal voltage230V;380VGear ratio 1:3 ~1:180Current0.12A;0.25AFrequency50Hz/60HzNominal speed1200rpm;1550rpmPermissible load rangeUp to 8.0N.m for S1 duty cycleNominal power15W

Motor typeAC Single-Phase MotorGearbox typeSpurDiameter70mm Nominal voltage115V;230VGear ratio 1:3 ~1:180Current0.18A;0.22A;0.40AFrequency50Hz/60HzNominal speed1200rpmPermissible load rangeUp to 8.0N.m for S1 duty cycleNominal power15W;20W

Motor typeBrushless DC motorGearbox typePlanetary Pole4Phase3DiameterGearbox:36mm; DC motor: 36mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1: 189No load speed5000rpmNominal speed4200rpmPermissible load range0.3N.m ~ 3N.m for S1 duty cycleDriverExternal driverRated power18W

Motor typeBrush commutated permanent magnet DC motorOptional gearbox typePlanetary/Spur/Worm/Right Angle Diameter45mmLength 78mmNominal voltage12V/24V DC or customizedNo load current0.22A; 0.30ANo load speed3000rpm; 4000rpmNorminal current1.0A; 1.50ANominal speed2400rpm; 3200rpmNominal torque55mN.m; 70mN.m; Nominal power15W; 23WIP ratingup to IP68

Motor typeNema 17 Hybrid Square Stepper MotorGearbox typePlanetary Phase2Step Angle1.8º or 0.9º or 3.6ºStep Angle Accuracy±5% (full step, no load)Gear ratio 1:3.71 ~1:139Permissible load range1.8N.m ~ 6N.m for S1 duty cycleTemperature Rise80℃ Max. (rated current, 2 phase on)Ambient Temperature-20℃ ~+50℃Insulation Resistance100MΩ Min., 500V DCDielectric Strength500V AC for one minuteIP ratingup to IP68

Motor typeBrush commutated DC motorGearbox typePlanetary DiameterGearbox: 28mm; DC motor:28mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1:369No load current80mA; 100mA; 60mANominal current350mA; 370mA; 200mANo load speed4000rpm; 5000rpmNominal speed2600rpm; 3450rpm; 4000rpmPermissible load range0.1N.m ~ 1.0N.m for S1 duty cycleNominal power1.86W; 2.48W; 2.87WIP ratingup to IP68

Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 52mm; DC motor: 52mmNominal voltage12V/24V DC or customizedGear ratio 1:4.5 ~1:512No load current0.40A; 0.60A; 0.80ANominal current2.0A; 4.0A; 5.0ANo load speed2000rpm; 3000rpm; 4000rpmNominal speed1600rpm; 2400rpm; 3200rpmPermissible load range3.0N.m ~ 30.0N.m for S1 duty cycleNominal power28W; 50W; 80WIP ratingup to IP68
