Products

Fitted Motor type                   Brush/brushless/stepper/AC motorsGearbox typePlanetaryDiameter42mmBearing at outputBall bearingGear ratio1:3.5 ~1:596Ring gear materialMetal or powder metalMax. radial load(10mm from flange)200NMax. shaft axial load100NRadial play of shaft(near to flange)Not over 0.06mmAxial play of shaftNot over 0.3mmPermissible load range1.0N.m ~ 10.0N.m for S1 duty cycleMotor max. inout speedLess than 8000rpmMax. shaft press fit force150N

DC SPUR GEAR MOTOR DZ84ZYC11 SPECS AND FEATURE:Motor Size 84mm ODVoltage 12V DCRated Torque 100N.m    Max. 136N.mRated Current 40A    Max. 55ARated Speed 22RPMWork Duty 5 Mins.Max. Efficiency > 55%Gear Ratio 141/1 Waterproof Class IP66With Build-in ControllerApplication - Trailer Landing Gear, Trailer & Truck Front to Back Power Tarp System

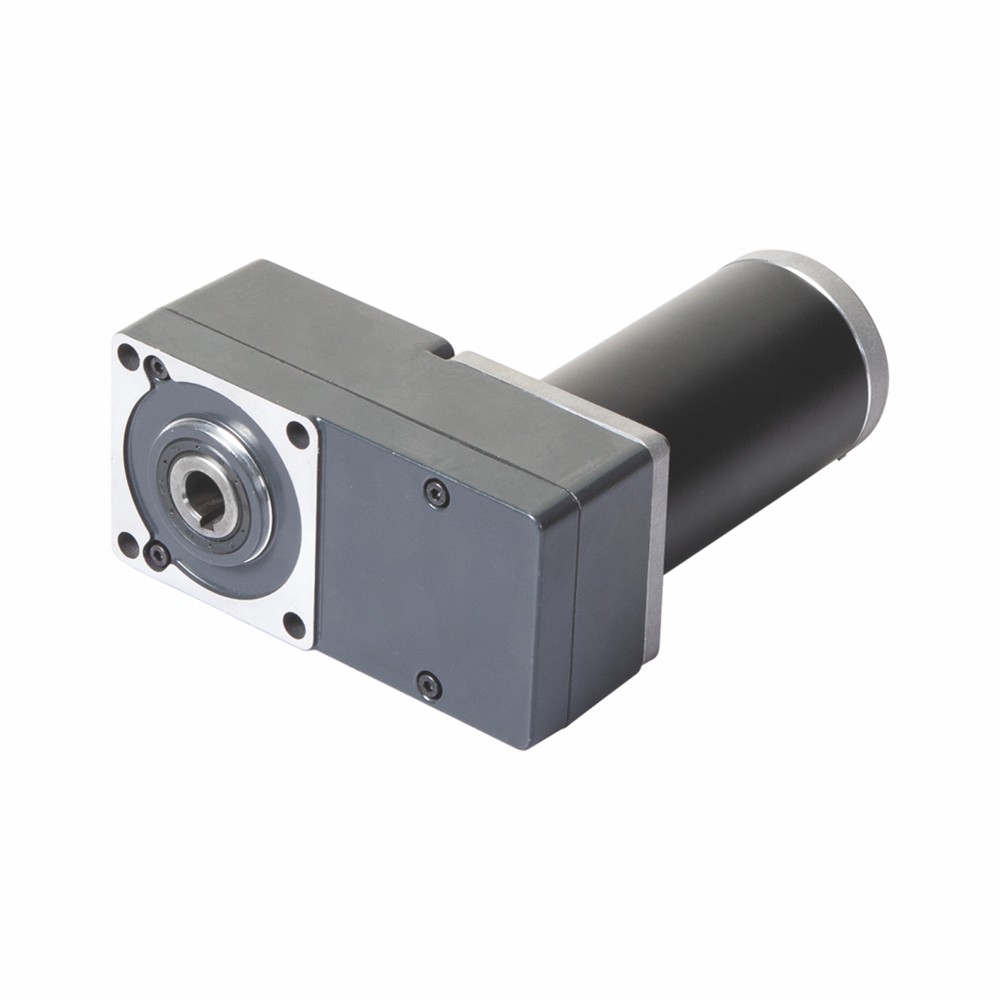

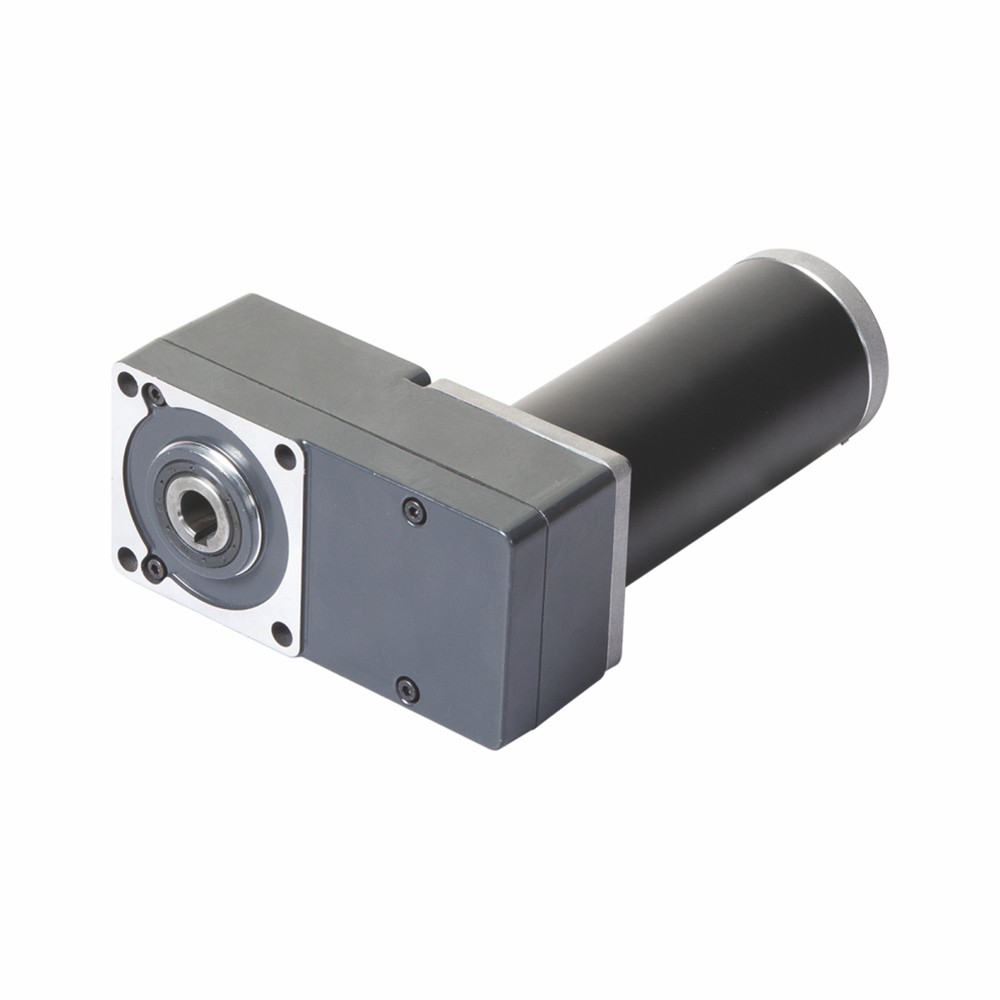

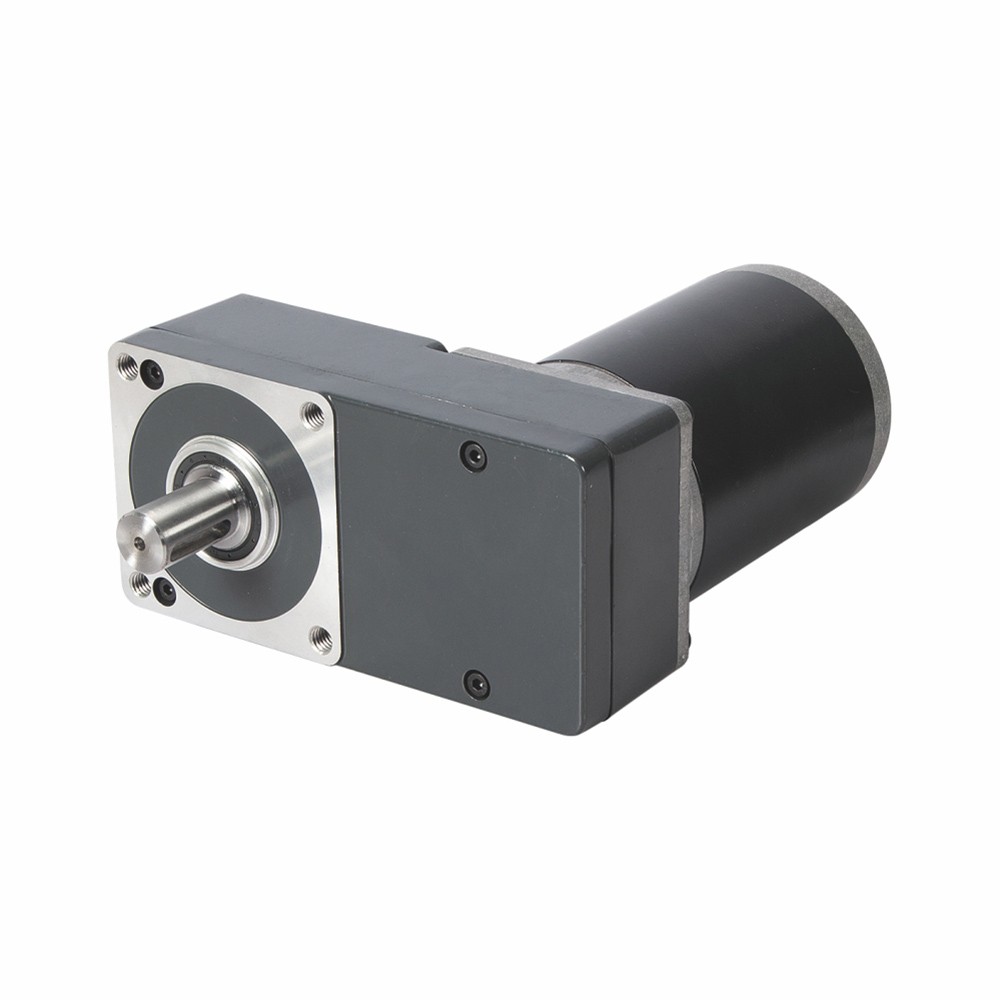

Motor typePermanent magnet DC MotorGearbox typeWorm/Right angleSizeDC motor:63mm,Gear motor:63mmNo-load Current0.32A;0.40ANominal voltage12V/24V or CustomizedGear ratio 1:10;1:15;1:30Nominal speed2600rpm;2700rpmPermissible load rangeUp to 10N.m for S1 duty cycleNominal power70W;100W

Motor typeAC Single-Phase MotorGearbox typeSpurDiameter60mmNominal voltage115V;230VGear ratio 1:3 ~1:180Current0.14A;0.20A;0.23A;0.30AFrequency50Hz/60HzNominal speed1200rpmPermissible load rangeUp to 5.0N.m for S1 duty cycleNominal power6W;10W

Motor typeAC Single-Phase MotorGearbox typeSpurDiameter60mmNominal voltage115V; 230VGear ratio 1:3 ~1:180Current0.1A; 0.18AFrequency50Hz/60HzNominal speed1200rpmPermissible load range0.08N.m~5.0N.m for S1 duty cycleNominal power4W

Motor typeBrushless DC motorGearbox typePlanetary Pole4Phase3DiameterGearbox:36mm; DC motor: 36mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1: 369No load current200mA;400mANominal current550mA;850mANo load speed4000rpmNominal speed3000rpmPermissible load range0.3N.m ~ 3N.m for S1 duty cycleDriverBuilt-in driverRated power4.7W;6.3W

Motor typeBrush commutated permanent magnet DC motorOptional gearbox typePlanetary/Spur/Worm/Right Angle Diameter42mmLength 85mmNominal voltage12V/24V DC or customizedNo load current0.20A; 0.30ANo load speed3000rpm; 3600rpmNorminal current1.20A; 1.50ANominal speed2400rpm; 2850rpmNominal torque70mN.m; 80mN.m; Nominal power15W; 23WIP ratingup to IP68

Heavy Truck Tarp Motor ( Tipper Sheeting Motor, Dura-Torque Gearmotor, Durabuilt Motor, Canvas Engine), Front to Back Power Tarp Motor, Rollover Power Tarp Motor, Voltage: 12V DC (or 24V DC )Rated Speed 20RPMRated Torque 100N.m @Current 31AMax. Efficiency 59%  @ 60N.m, 23RPM, Current 20AWith a Power-Off BrakeOperation Mode S2Reducttion Ratio: 70 : 11 inch Hollow Shaft  ( Solid shaft available upon request )

Motor typeNema11 Hybrid Square Stepper MotorGearbox typePlanetary Phase2Step Angle1.8ºStep Angle Accuracy±5% (full step, no load)Gear ratio 1:3.71 ~1:369Permissible load range1.2N.m ~ 4N.m for S1 duty cycleTemperature Rise80℃ Max. (rated current, 2 phase on)Ambient Temperature-20℃ ~+50℃Insulation Resistance100MΩ Min., 500V DCDielectric Strength500V AC for one minuteIP ratingup to IP68

                                        TypeTwo-channel Optical Kit EncoderModel:GBM30A; GBM22APhase2-ABMounting hole diameter4 ~ 8MMMounting DiameterΦ19.05 / M2.5; Φ16.86 / M2Output circuitLine driverSupply voltage5VCPR96~1050CPR; 200 CPR、256CPRRelative Humidity20% ~ 85% RHTemp. Range-20℃~80℃

Motor typeBrush commutated DC motorGearbox typePlanetary DiameterGearbox: 22mm; DC motor:22mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1:516No load current85mA; 100mA; 150mANominal current180mA; 250mA; 500mANo load speed4500rpm; 6000rpm; 10000rpmNominal speed3340rpm; 5000rpm; 8700rpmPermissible load range0.1N.m ~ 1.0N.m for S1 duty cycleNominal power1.0W; 2.7W;1.56WIP ratingup to IP68

Motor   typeBrush   commutated DC motor Gearbox typePlanetary DiameterGearbox: 52mm; DC   motor:52mmNominal   voltage12V/24V DC or   customizedGear   ratio 1:4.5 ~1:312No load   current0.35A; 0.42ANominal   current1.50A; 2.0ANo load speed3000rpm; 4000rpmNominal speed2400rpm; 3200rpmPermissible   load range2.0N.m ~ 30.0N.m for   S1 duty cycleNominal power18W; 27WIP ratingup to IP68
