Vacuum Cleaner Motor Specifications: PARAMETERS/MODELS DYD500-D-3 DYD600-D-3 DYD800-D-3 DYD1000-D-3 DYD1200-D-3 TOLERANCE VALUE RATED VOLTAGE(V) 110/220/230/240 / RATED FREQUENCY(HZ) 50/60 / RATED INPUT POWER(W) 500 600 800 1000 1200 +10% -5% MAX VACUUM DEGREE(KPA) 16 17 19 21 24 -5% MAX AIR FLOW(M3/MIN) 2.30 2.40 2.50 2.60 2.80 -5% TEMPERATURE RISE(K) <80 / NOISE(DB) ≤96 / SPARK <2 / CLASS OF INSULATION B / MAX EFFICIENCY 39 -5% Vacuum Cleaner Motor Dimensions:

Heavy Truck Tarp Gear Motor 80ZYTE-12/JW-5 with Chrome Cover ( 2.0 ~ 2.5HP )Dump Truck Tarp Motor ( Canvas Engine, Tipper Sheeting Motor, Dura-Torque Gearmotor, Durabuilt Motor), fits most automatic tarp systems.MOTOR SPECS AND FEATURE (GEAR RATIO 90:1): 3 year warrantyHi-torque, direct drive 12VDC (or 24VDC) motorNo-load current 20A @ no-load speed 47rpmMaximum Efficiency 25.49%37rpm @ Max. efficiency 59.48N.m ( 520 in-lbs ) @ Max. efficiencyOutput Power 229.96W @ Max. efficiencyStall Torque 272.02N.m ( Lock-rotor Torque )Epoxy sealed gearbox maintains lubrication.Sealed drive shaft and encased bearing prevents contamination.Chrome/plastic cover and fasteners included.100% tested for quality control.Replaces Superwinch and Twin tarp gear motors.Mainly Canadian Market.Replaces Aero Power Plus, Donovan 1704878, 1800716, 1801965*, 1802061, 1802066, Roll-Rite #1030/1031, US Tarp #13732, 13957, 15275, 15938, 15364, 13655; Pulltarps 517-0906/517-0909; SHUR-CO 1703823; SuperWinch 90-33319/90-33295; Tarps and Beyond 1000XT/2000XT; Buyers Products 5543965/5541065, TSI Apache, Tomahawk, Enforcer.

LC759091 Motor and Gear Box Assembly for LCI PSX2 Electric RV Stabilizer (695602 )Replacement Motor and Gear Box Assembly for Lippert Components PSX2 Electric RV StabilizersItem # LC759091Voltage 12V DCNo-load Current 1.2ANo-load Speed 85rpmRated Current 4.5ARated Speed 73rpmRated Torque 3N.mGear Ratio 52.8 : 1UL, CE, Reach and RoHS approvalOptional components: magnetic/optical encoder; brake; connectorCustomized shaft dimensions and technical specifications are available upon requestedTypical Applications: High-Speed Power Stabilizer Jack, RV Leveling System, Trailer Leveling System

Fitted Motor type                   Brush/brushless/stepper/AC motorsGearbox typePlanetaryDiameter52mmBearing at outputBall bearingGear ratio1:3.6 ~1:1500Ring gear materialMetal or powder metalMax. radial load(10mm from flange)300NMax. shaft axial load200NRadial play of shaft(near to flange)Not over 0.08mmAxial play of shaftNot over 0.4mmPermissible load range2.0N.m ~ 30.0N.m for S1 duty cycleMotor max. inout speedLess than 8000rpmMax. shaft press fit force300N

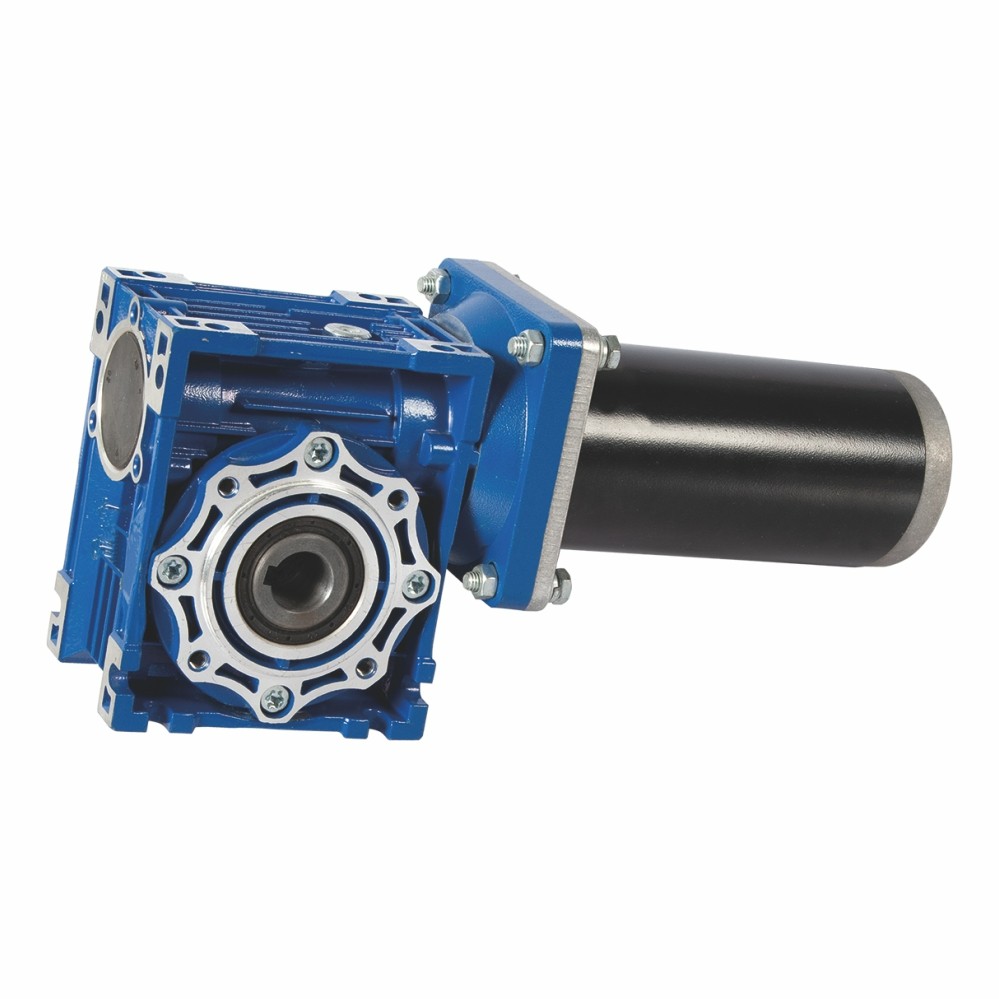

Motor typePermanent magnet DC MotorGearbox typeWorm/Right angleSizeDC motor:83mm,Gear motor:90mmNo-load Current0.8A;0.9ANominal voltage12V/24V or CustomizedGear ratio 1:12.5;1:16;1:25;1:32;1:40;1:50Nominal speed1700rpm;2500rpmPermissible load rangeUp to 10N.m for S1 duty cycleNominal power42W;77W

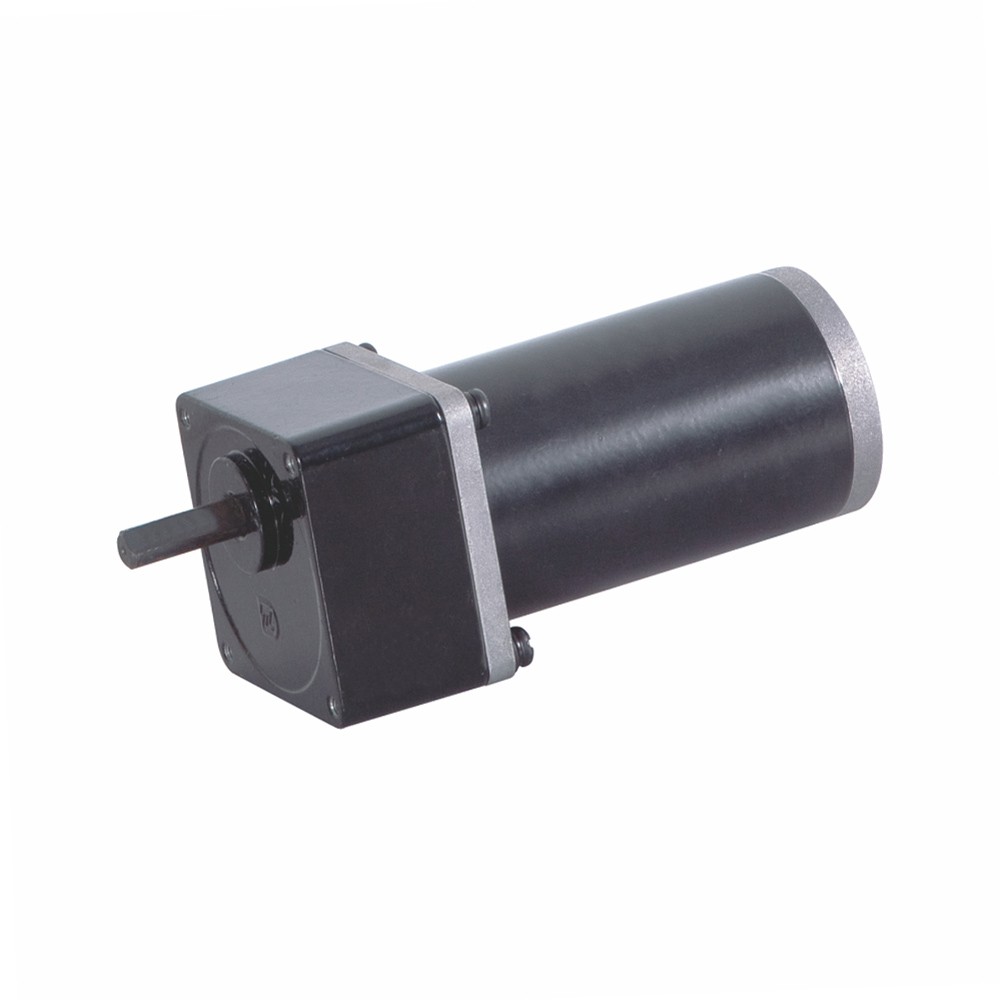

Motor typeAC Single-Phase MotorGearbox typeSpurDiameter60mmNominal voltage115V;230VGear ratio 1:3 ~1:180Current0.2A;0.3AFrequency50Hz/60HzNominal speed1200rpmPermissible load rangeUp to 5.0N.m for S1 duty cycleNominal power12W

Motor typeBrushless DC motorGearbox typePlanetary Pole4Phase3DiameterGearbox:36mm; DC motor: 36mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1: 189No load speed5000rpmNominal speed4200rpmPermissible load range0.3N.m ~ 3N.m for S1 duty cycleDriverBuilt-in driverRated power18W

Motor typeBrush commutated permanent magnet DC motorOptional gearbox typePlanetary/Spur/Worm/Right Angle Diameter45mmLength 68mmNominal voltage12V/24V DC or customizedNo load current0.20A; 0.30ANo load speed3000rpm; 4000rpmNorminal current1.20A; 0.80ANominal speed2500rpm; 3200rpmNominal torque45mN.m; 55mN.m; Nominal power12W; 18WIP ratingup to IP68

Motor typeNema14 Hybrid Square Stepper MotorGearbox typePlanetary Phase2Step Angle1.8ºStep Angle Accuracy±5% (full step, no load)Gear ratio 1:3.71 ~1:139Permissible load range1.8N.m ~ 6N.m for S1 duty cycleTemperature Rise80℃ Max. (rated current, 2 phase on)Ambient Temperature-20℃ ~+50℃Insulation Resistance100MΩ Min., 500V DCDielectric Strength500V AC for one minuteIP ratingup to IP68

                                        TypeThree-channel Optical Kit EncoderModel:GBM30B; GBM302C; GBM22A; GBM28A; GBM40APhase3:ABZMounting hole diameter4 ~ 8MMMounting DiameterΦ19.05 / M2.5; Φ16.86 / M2; Φ34 / M3; Φ46 / M3Output circuitLine driverSupply voltage5VCPR50~4000CPR;Relative Humidity20% ~ 85% RHTemp. Range-20℃~80℃

Motor typeBrush commutated DC motorGearbox typePlanetary DiameterGearbox: 24mm; DC motor:24mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1:516No load current60mA; 70mA; 100mANominal current170mA; 240mA; 420mANo load speed4500rpm; 6000rpm; 10000rpmNominal speed3600rpm; 4800rpm; 7700rpmPermissible load range0.1N.m ~ 1.0N.m for S1 duty cycleNominal power0.9W; 1.5W; 3.1WIP ratingup to IP68
