Vacuum Cleaner Motor Type D-3

① Characteristics

Vacuum Cleaner Motor Specifications:

PARAMETERS/MODELS

DYD500-D-3

DYD600-D-3

DYD800-D-3

DYD1000-D-3

DYD1200-D-3

TOLERANCE VALUE

RATED VOLTAGE(V)

110/220/230/240

/

RATED FREQUENCY(HZ)

50/60

/

RATED INPUT POWER(W)

500

600

800

1000

1200

+10% -5%

MAX VACUUM DEGREE(KPA)

16

17

19

21

24

-5%

MAX AIR FLOW(M3/MIN)

2.30

2.40

2.50

2.60

2.80

-5%

TEMPERATURE RISE(K)

<80

/

NOISE(DB)

≤96

/

SPARK

<2

/

CLASS OF INSULATION

B

/

MAX EFFICIENCY

39

-5%

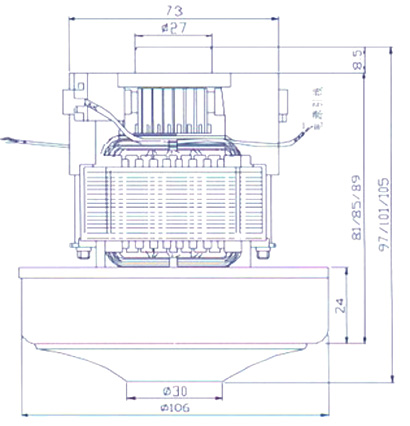

Vacuum Cleaner Motor Dimensions:

② Description
