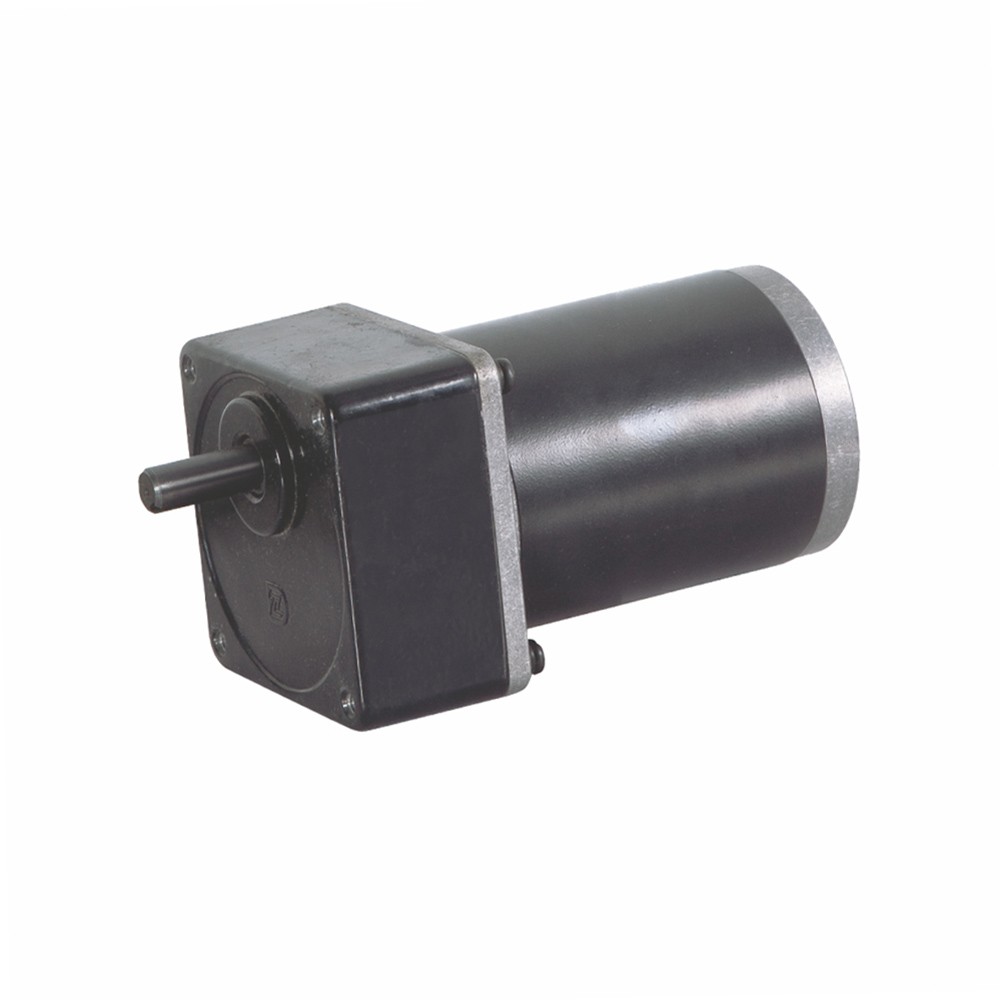

Motor typeBrush commutated DC motorGearbox typeSpur/Parallel ShaftDiameterGearbox: 90mm; DC motor: 80mmNominal voltage12V/24V DC or customizedGear ratio1:3.6 ~1:200No load current0.50A; 1.20ANominal current6.0A; 10.0ANo load speed2000rpm; 3500rpmNominal speed1700rpm; 3000rpmPermissible load rangeup to 20.0N.m for S1 duty cycleNominal power110.0W; 200.0WIP ratingup to IP68

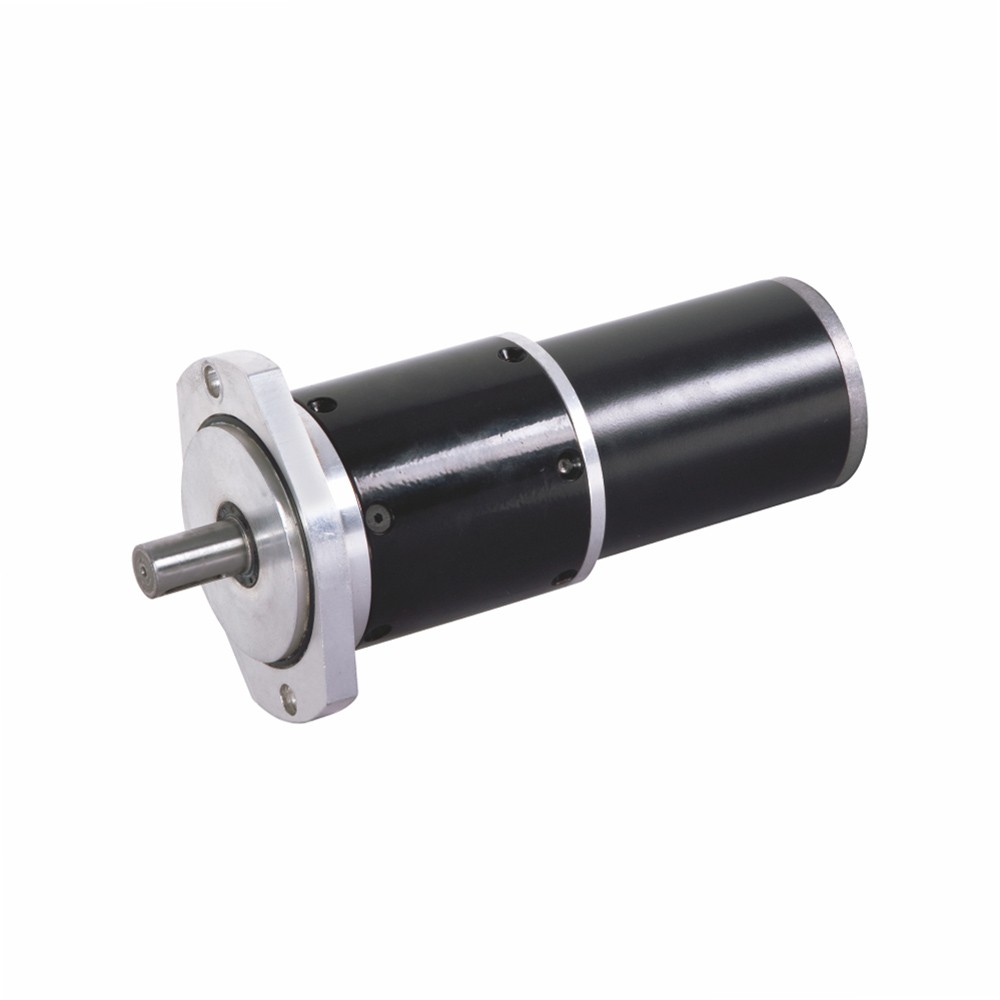

Motor typeBrush commutated DC motorGearbox typePlanetaryDiameterGearbox: 92mm; DC motor: 80mmNominal voltage12V/24V DC or customizedGear ratio1:95 ~1:772No load current0.5A; 0.6ANominal current7.0A; 9.0ANo load speed1500rpm; 2000rpmNominal speed1250rpm; 1600rpmPermissible load rangeup to 450N.m for S1 duty cycleNominal power105.0W; 150.0WIP ratingup to IP68

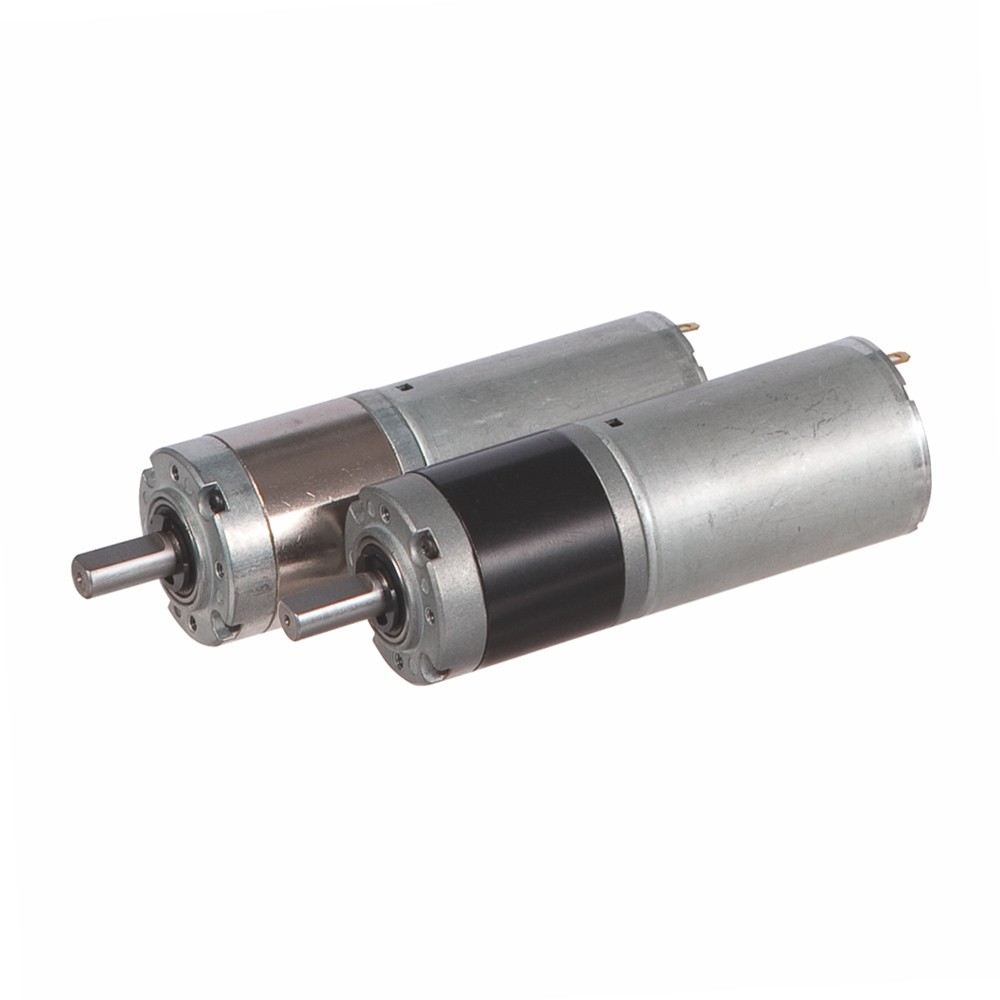

Motor typeCompact Carbon Brush commutated DC motorGearbox typePlanetaryDiameterGearbox: 36mm; DC motor: 36mmNominal voltage12V/24V DC or customizedGear ratio1:3.7 ~1:516No load current100mA; 120mANominal current520mANo load speed3000rpm; 4200rpmNominal speed2500rpm; 3600rpmPermissible load range0.01N.m ~ 3.0N.m for S1 duty cycleNominal power4.5W; 7.0WIP ratingup to IP68

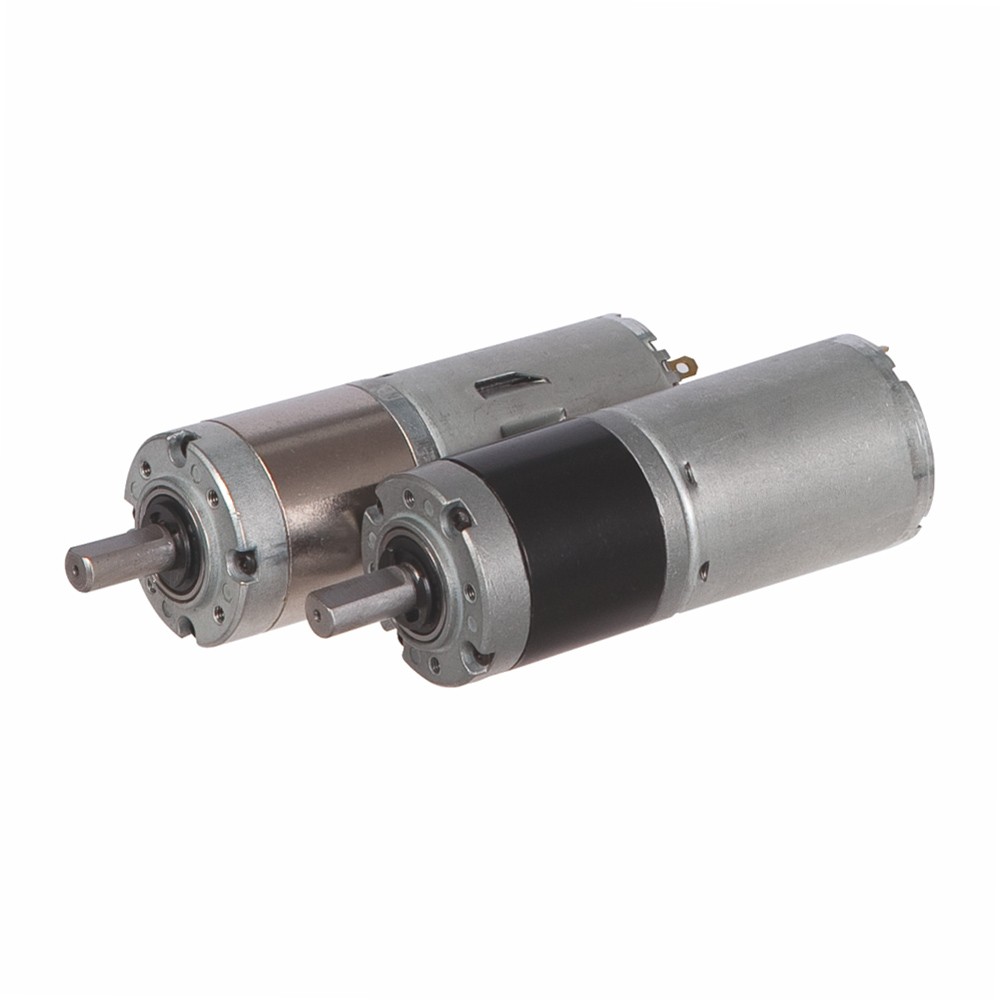

Motor typeCompact Carbon Brush commutated DC motorGearbox typePlanetaryDiameterGearbox: 36mm; DC motor: 36mmNominal voltage12V/24V DC or customizedGear ratio1:3.7 ~1:516No load current100mA; 120mANominal current400mA; 600mANo load speed3600rpm; 4200rpmNominal speed3000rpm; 3450rpmPermissible load range0.01N.m ~ 3.0N.m for S1 duty cycleNominal power3.4W; 4.2WIP ratingup to IP68
Motor typeBrushless DC motorGearbox typePlanetary Pole4Phase3DiameterGearbox: 32mm; DC motor: 33mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1: 369Peak current0.64ANo load speed4500rpmNominal speed3000rpmPermissible load range0.3N.m-3.0N.m for S1 duty cycleRated power7W
Motor typeBrush commutated permanent magnet DC motorOptional gearbox typePlanetary/Spur/Worm/Right Angle Diameter71mmLength 110mmNominal voltage12V/24V DC or customizedNo load current0.40A; 0.50ANo load speed2000rpm; 3000rpmNorminal current2.40A; 3.50ANominal speed1600rpm; 2400rpmNominal torque200mN.m; 240mN.mNominal power33W; 59WIP ratingup to IP68
Motor typeBrush commutated DC motor Gearbox typeSpur /Parallel ShaftSizeGearbox: 90mm; DC motor:80mmNominal voltage12V/24V DC or customizedGear ratio 1:3 ~1:150No load current0.30A; 0.50ANo load speed2000rpm; 3000rpmNominal current3.5A; 7.50ANominal speed1700rpm; 2600rpmPermissible load rangeup to 20.0N.m for S1 duty cycleNominal power57.0W; 120.0WIP ratingup to IP68
Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 36mm; DC motor:36mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1:354No load current260mA; 130mANominal current1.6A; 0.8ANo load speed6000rpmNominal speed5000rpmPermissible load range0.3N.m ~ 3.0N.m for S1 duty cycleNominal power13.1W; 13.5WIP ratingup to IP68
Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 92mm; DC motor: 80mmNominal voltage12V/24V DC or customizedGear ratio 1:4.3 ~1:422No load current0.50A; 0.80ANominal current3.0A; 7.50ANo load speed1300rpm; 3000rpmNominal speed960rpm; 2400rpmPermissible load rangeup to 150N.m for S1 duty cycleNominal power24W; 120WIP ratingup to IP68
AC RIGHT ANGLE GEAR MOTOR YN70-25/63JW SPECS AND FEATURE: Voltage 110V ~ 440V ACMotor Power 25WMotor Rated Speed 1250rpm/50Hz, 1500rpm/60HzGear Ratio 10/1, 12.5/1, 30/1, 36/1, 50/1
AC Planetary Gear Motor 90YS90-2/72JX7G14 Specs. & Feature· 90mm OD AC Motor · 72mm OD Planetary Gearhead· Voltage 230V 3-Phase· Frequency 50/60Hz· Motor Output Power 90W· Rated Current 0.8A· Rated Speed 186RPM· Rated Torque 4.3N.m· Gear Ratio 7/1
