Motor typeBrush commutated DC motor Gearbox typeSpurSizeGearbox: 104mm; DC motor:80mmNominal voltage12V/24V DC or customizedGear ratio 1:3 ~1:150No load current0.30A; 0.60ANo load speed2000rpm; 3500rpmNominal current3.0A; 6.50ANominal speed1700rpm; 3000rpmPermissible load rangeup to 30.0N.m for S1 duty cycleNominal power57.0W; 110.0WIP ratingup to IP68

Vacuum Cleaner Motor Specifications:   PARAMETERS/MODELS DYD1200-H1 TOLERANCE VALUE RATED VOLTAGE(V) 110/220/230/240 / RATED FREQUENCY(Hz) 50/60 / RATED INPUT POWER(W) 1200 +8% -8% MAX VACUUM DEGREE(KPA) 24 -5% MAX AIR FLOW(M3/MIN) 3.0 -5% TEMPERATURE RISE(K) ≤85 / NOISE(dB) ≤92 / SPARK <2 / CLASS OF INSULATION B / MAX EFFICIENCY 37% -5%   Vacuum Cleaner Motor Dimensions:

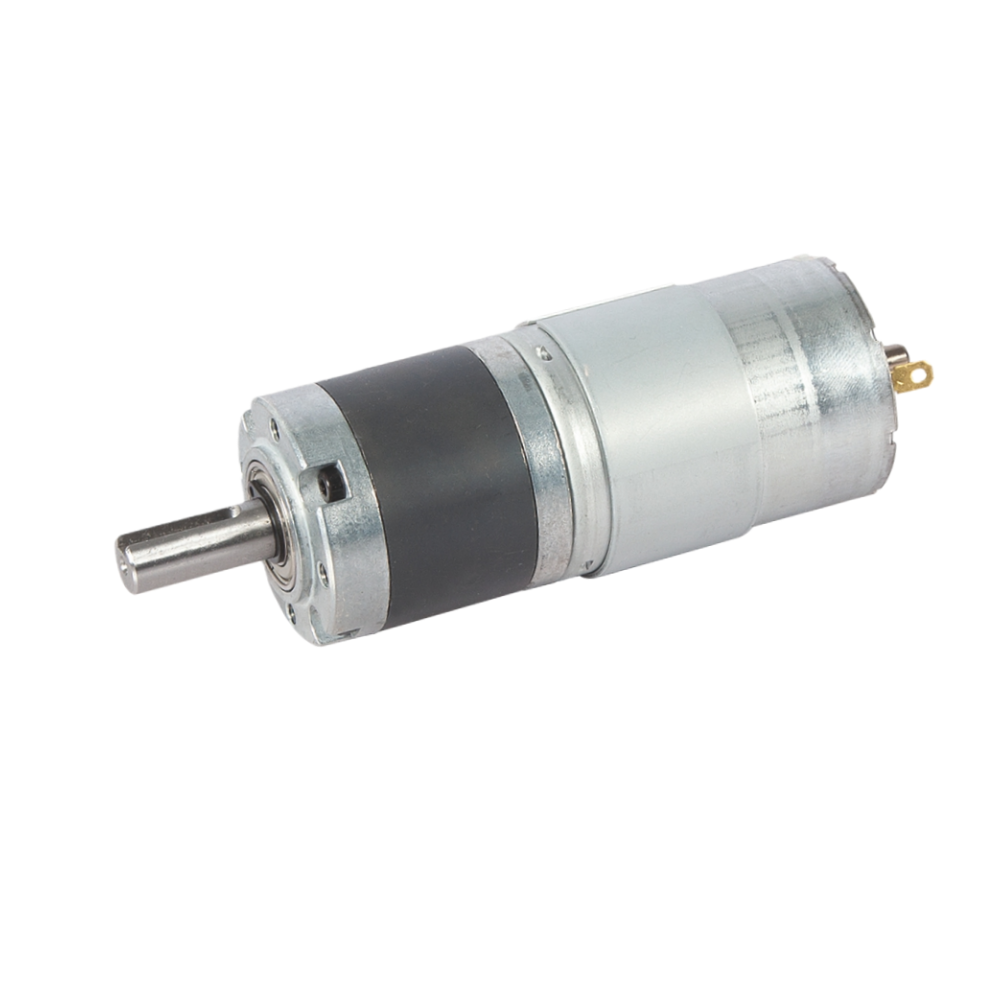

Motor typeBrush commutated DC motorGearbox typePlanetary DiameterGearbox: 42mm; DC motor:42mmNominal voltage12V/24V DC or customizedGear ratio 1:3.71 ~1:305No load current1.2A; 0.6ANominal current6.7A; 4.2ANo load speed7000rpmNominal speed5200rpmPermissible load range1.0N.m ~ 10.0N.m for S1 duty cycleNominal power47.9W; 65.3WIP ratingup to IP68

DC WORM GEARED MOTOR 76ZYT/73WJ TYPICAL SPECS.:·  Voltage 24V DC·  Current approx. 5A·  Motor Output Power 60W·  Rated Speed 60rpm·  Rated Torque 4.8N.m·  Gearbox Reduction Ratio 57 : 1·  Voltage 24V DC·  Current approx. 5A·  Motor Output Power 60W·  Rated Speed 180rpm·  Rated Torque 1.6N.m·  Gearbox Reduction Ratio 17 : 1

Motor typeBrushless DC motorGearbox typePlanetary Pole10Phase3DiameterGearbox: 42mm; DC motor: 42mmNominal voltage12V/24V DC or customizedGear ratio 1:3.8~1: 212Peak current11.8ANo load speed4000rpmNominal speed3000rpmPermissible load range1N.m-15N.m for S1 duty cycleRated power50W

Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 42mm; DC motor:42mmNominal voltage12V/24V DC or customizedGear ratio 1:3.5 ~1:504No load current0.8A; 1.3ANominal current3.0A; 5.0ANo load speed5700rpm; 7700rpmNominal speed4800rpm; 6500rpmPermissible load range2.0N.m ~ 15.0N.m for S1 duty cycleNominal power25W; 35WIP ratingup to IP68

DC RIGHT ANGLE GEAR MOTOR 78ZYT84-4850 TYPICAL SPECS.:· Voltage 48V DC· Rated Output Power 50W· Rated Torque 9.60N.m· Rated Speed 50RPM

DC SPUR GEARED MOTOR 80ZY-105JB SPECS AND FEATURE: Motor OD Size: 80MM, 90MMGearbox Size: 105JBVoltage: 12 ~ 400V DC Output Power: up to 400WRated Torque: up to 60N.mOperation Mode S1 Reduction Ratio: 5 : 1, 6.25 : 1, 10 : 1, 11.5 : 1, 31 : 1, 50 : 1

Vacuum Cleaner Motor Specifications:   PARAMETERS/MODELS DYD2200-CG TOLERANCE VALUE RATED VOLTAGE(V) 110/220/230/240 / RATED FREQUENCY(Hz) 50/60 / RATED INPUT POWER(W) 2200 +8% -8% MAX VACUUM DEGREE(KPA) 34 -5% MAX AIR FLOW(M3/MIN) 3.4 -5% TEMPERATURE RISE(K) ≤85 / NOISE(dB) ≤92 / SPARK <2 / CLASS OF INSULATION B / MAX EFFICIENCY 40% -5%   Vacuum Cleaner Motor Dimensions:

Motor typeBrushless DC motorGearbox typePlanetary Pole10Phase3DiameterGearbox: 42mm; DC motor: 42mmNominal voltage12V/24V DC or customizedGear ratio 1:3.8~1: 24Peak current11.8ANo load speed4000rpmNominal speed3000rpmPermissible load range0.5N.m-5.0N.m for S1 duty cycleRated power50W

 Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 42mm; DC motor:42mmNominal voltage12V/24V DC or customizedGear ratio 1:3.5 ~1:294No load current0.2A; 0.3ANominal current1.20A; 1.50ANo load speed3000rpm; 3600rpmNominal speed2400rpm; 2850rpmPermissible load range2.0N.m ~ 15.0N.m for S1 duty cycleNominal power15W; 23WIP ratingup to IP68

IP67 FUEL PUMP MOTOR GENERAL SPECS.  DC 24V  No-Load Speed 5000RPM  Rated Output Speed 3500RPM   Rated Output Power 300W   Insulation Class B   IP67 or IP69K  Customized shaft & front cover available upon request
