Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 92mm; DC motor: 80mmNominal voltage12V/24V DC or customizedGear ratio 1:4.3 ~1:322No load current0.50A; 1.60ANominal current7.0A; 15.00ANo load speed2000rpm; 3000rpmNominal speed1600rpm; 2400rpmPermissible load rangeup to 150N.m for S1 duty cycleNominal power120W; 240WIP ratingup to IP68

Motor typeBrushless DC motorGearbox typePlanetary Pole8Phase3DiameterGearbox: 36mm; DC motor: 36mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1: 264No load speed3000rpmNominal speed2100rpmPermissible load range0.3N.m-3.0N.m for S1 duty cycleRated power7W;10W

Motor typeBrush commutated DC motor Gearbox typeSpurSizeGearbox: 90mm; DC motor:83mmNominal voltage12V/24V DC or customizedGear ratio 1:3 ~1:150No load current0.80A; 0.90ANo load speed2000rpm; 3000rpmNominal current3.50A; 4.60ANominal speed1700rpm; 2500rpmPermissible load rangeup to 20.0N.m for S1 duty cycleNominal power42.0W; 77.0WIP ratingup to IP68

DC WORM GEARED MOTOR 73ZY-90WJ TYPICAL SPECS.:Voltage 48V DCRated Torque 7N.mRated  Speed 88RPMGear Ratio 25/1orVoltage 48V DCRated Torque 11N.mRated  Speed 55RPMGear Ratio 40/1

Wet & Dry Vacuum Cleaner Motor Specifications: PARAMETERS/MODELS DYD500-D-3 DYDY600-D-3 TOLERANCE VALUE RATED VOLTAGE(V) 110/220/230/240 / RATED FREQUENCY(HZ) 50/60 / RATED INPUT POWER(W) 500 600 +10% -5% MAX VACUUM DEGREE(KPA) 16 16.5 -5% MAX AIR FLOW(M3/MIN) 1.70 1.80 -8% TEMPERATURE RISE(K) ≤65 ≤65 / NOISE(DB) ≤100 ≤100 / SPARK <2 <2 / CLASS OF INSULATION E E / MAX EFFICIENCY 35% 35% -10% Wet & Dry Vacuum Cleaner Motor Dimensions:

             As part of the rare earth group of permanent magnets, samarium cobalt (SmCo) magnets typically fall into two families of materials. They include rare earth Sm1Co5 and Sm2Co17 and are referred to as 1:5 and 2:17 materials. Samarium cobalt typically offers high energy products with excellent coercive (resistance to demag) forces. This makes samarium an excellent choice for small, compact designs where high temperature environments may be present.               Magnetic Properties of SmCo   Model Br Hcj Hcb (BH)max   mT KGs KA/m3 KOe KA/m3 KOe KJ/m3 MGOe OM16 750-880 7.5-8.8 >1989 >25 597+/-40 7.5+/-0.5 127+/-16 16+/-2 OM18 800-930 8.0-9.3 >1432 >18 637+/-40 8+/-0.5 143+/-16 18+/-2 OM20 850-980 8.5-9.8 >1273 >16 637+/-40 8+/-0.5 159+/-16 20+/-2 OMT18 900-1030 9.0-10.3 >1194 >15 637+/-40 8+/-0.5 143+/-16 18+/-2 OM22A 900-1030 9.0-10.3 >1989 >25 653+/-40 8.2+/-0.5 175+/-16 22+/-2 OM22B 900-1030 9.0-10.3 >1432 >18 635+/-40 8.2+/-0.5 175+/-16 22+/-2 OM24 980-1080 9.8-10.8 >1432 >18 676+/-40 8.5+/-0.5 191+/-16 24+/-2 OM26A 1000-1130 10.0-11.3 >1194 >15 716+/-40 9.0+/-0.5 207+/-16 26+/-2 OM26B 1000-1130 10.0-11.3 >796 >10 716+/-40 9.0+/-0.5 207+/-16 26+/-2 OM28 1030-1130 10.3-11.3 >1432 >18 756+/-40 9.5+/-0.5 223+/-16 28+/-2 OM27 1000-1100 10.0-11.0 413-556 5.2-7.0 357-516 4.5-6.5 183-223 26+/-2 OM30 1100-1200 11.0-12.0 454-597 5.7-7.5 438-517 5.5-6.5 239+/-16 30+/-2

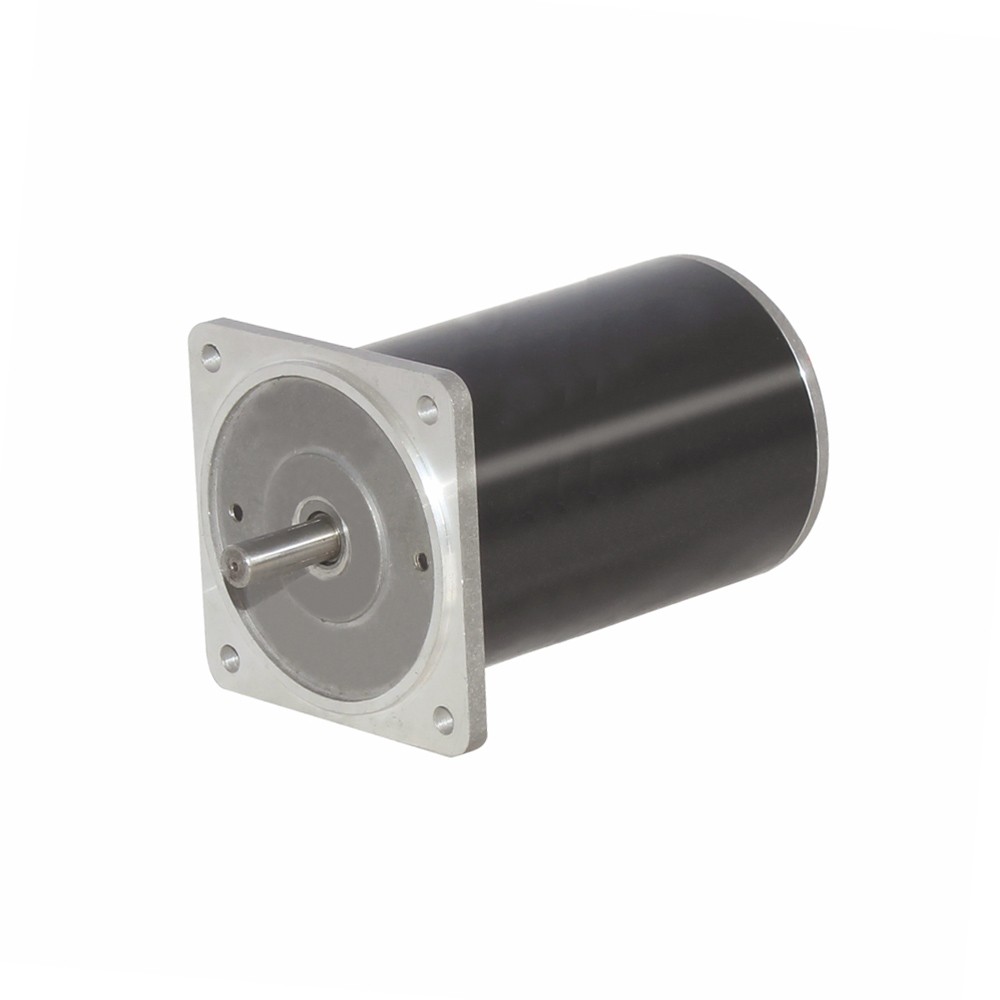

Motor typeBrush commutated permanent magnet DC motorOptional gearbox typePlanetary/Spur/Worm/Right AngleDiameter80mmLength170mmNominal voltage12V/24V DC or customizedNo load current0.5A; 1.0A; 1.2ANo load speed1250rpm; 2000rpm; 2500rpmNorminal current8.0A; 14.0A; 20.0ANominal speed1600rpm; 2500rpm; 3300rpmNominal torque085N.m; 0.95N.m; 1.15N.mNominal power110W; 200W; 300WIP ratingup to IP68

Motor typeBrush commutated DC motorGearbox typePlanetaryDiameterGearbox: 42mm; DC motor: 42mmNominal voltage12V/24V DC or customizedGear ratio1:3.71 ~1:306No-load current1.2A; 0.3ANominal current5.08A; 0.94ANo-load speed5200rpm; 7000rpmNominal speed4715rpm; 5860rpmPermissible load range1.0N.m ~ 10N.m for S1 duty cycleNominal power42W; 17.5WIP ratingup to IP68

Motor typeBrush commutated permanent magnet DC motorOptional gearbox typePlanetary/Spur/Worm/Right Angle Diameter80mmLength 125mmNominal voltage12V/24V DC or customizedNo load current0.50A; 1.0A; 1.5ANo load speed2000rpm; 3000rpm; 3500rpmNorminal current5.0A; 12.0A; 18.0ANominal speed1500rpm; 2400rpm; 2800rpmNominal torque0.54N.m; 0.80N.m; 0.90N.mNominal power5W; 205W; 265WIP ratingup to IP68Mounting NEMA 48C, NEMA 56C,  IEC61/71/80 B5/B14, NEMA 143TC/145TC, TENV, TEFC

Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 36mm; DC motor:38mmNominal voltage12V/24V DC or customizedGear ratio 1:3.7 ~1:369No load current160mA; 220mANominal current0.35A; 0.60ANo load speed3000rpm; 4000rpmNominal speed2500rpm; 3200rpmPermissible load range0.3N.m ~ 3.0N.m for S1 duty cycleNominal power3.8W; 6.5WIP ratingup to IP68

Motor typeBrush commutated DC motor Gearbox typePlanetary DiameterGearbox: 120mm; DC motor: 96mmNominal voltage12V/24V DC or customizedGear ratio 1:4.8 ~1:1118No load current1.0A; 1.80ANominal current9.0A; 18.00ANo load speed2000rpm; 3500rpmNominal speed1600rpm; 2800rpmPermissible load rangeup to 900N.m for S1 duty cycleNominal power135W; 280WIP ratingup to IP68
