Truck Tarp Controller

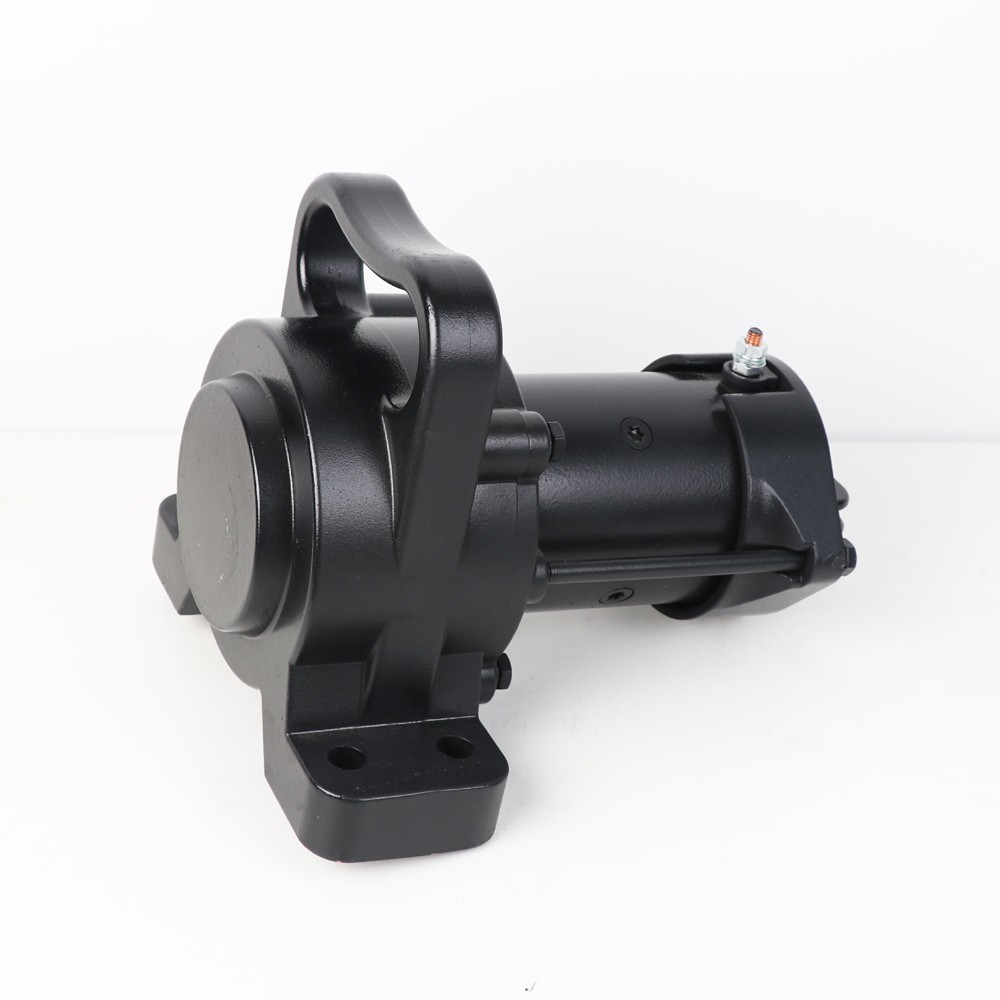

Product IntroductionThis controller is used for the opening and closing of the tarpaulin of the dump truck, it is a wide voltage controller, the voltage range of 12V-24V DC can be used. It controls a brushed DC permanent magnet gearmotor, and then drives the transmission system through the gearmotor to realize the opening and closing control function of the truck tarpaulin, in addition, the controller also has an overload protection function; Remote control function; Maximum running time limiting function; Real-time current display function; No-load protection function. Since the current at the start of the gearmotor is much greater than the current during operation, the overload protection current setting value is subdivided into the starting current value and the running current value, which realizes the precise control effect. The current protection setting value is adjusted steplessly according to the accuracy of 1 Amp/time, so that the control effect is more accurate. Product Shape Wiring GuidanceLead WireFunctionWire Specs.Wire ColorInputBattery 12V-24V DC +10AWGRedBattery 12V-24V DC -10AWGBlackOutputTo Motor +10AWGGreenTo Motor -10AWGYellow Controller Specs.ItemTruck Tarp ControllerController Size（mm）177x150x60New Weight（KG）0.72Rated Voltage（V）12-24V DCRated Current（A）50-100AThe meaning of the operator panel buttons, indicators, and display ON ButtonPress this button to run the motor in the direction of tarpaulin opening, when the tarpaulin is operating normally, the button background light flashes, and the buzzer sounds. CLOSED ButtonPress this button to run the motor in the direction of the tarpaulin closing, when the tarpaulin is operating normally, the button background light flashes, and the buzzer sounds.OFF ButtonPress this button to pause the operation of the tarpaulin during operationRemote Controller B ButtonPress this button to run the motor in the direction of tarpaulin openingRemote Controller A ButtonPress this button to run the motor in the direction of tarpaulin closingRemote Controller D ButtonPress this button to pause the operation of the tarpaulin during operationDisplayThe real-time operating current value is displayed when the motor is running SETTING UP1. Current protection value setting: After powering on, press and hold the OFF button of the controller to enter the current protection setting A50 (expressed as the existing protection current of 50A). The ON button is incremented, the CLOSED button is decreased, short press the OFF button to switch settings, OR press and hold the OFF button to save the current protection value.2. Maximum allowable running time setting: After powering on, press and hold the OFF button of the controller to enter the current protection setting A50, switch the setting b70 in the short press OFF button (expressed as 70 seconds for the existing time protection), The ON button is incremented, the CLOSED button is decreased, short press the OFF button to switch the setting, OR press and hold the OFF button to save the current time protection value. Note: The maximum protection time is set to 99 seconds. This setting value should be equal to or slightly less than the number of seconds that the tarpaulin runs from one end to the other.
