MODEL 115ZY245/RV050i50 ( L=245MM ) 2 PERFORMANCE CURVES

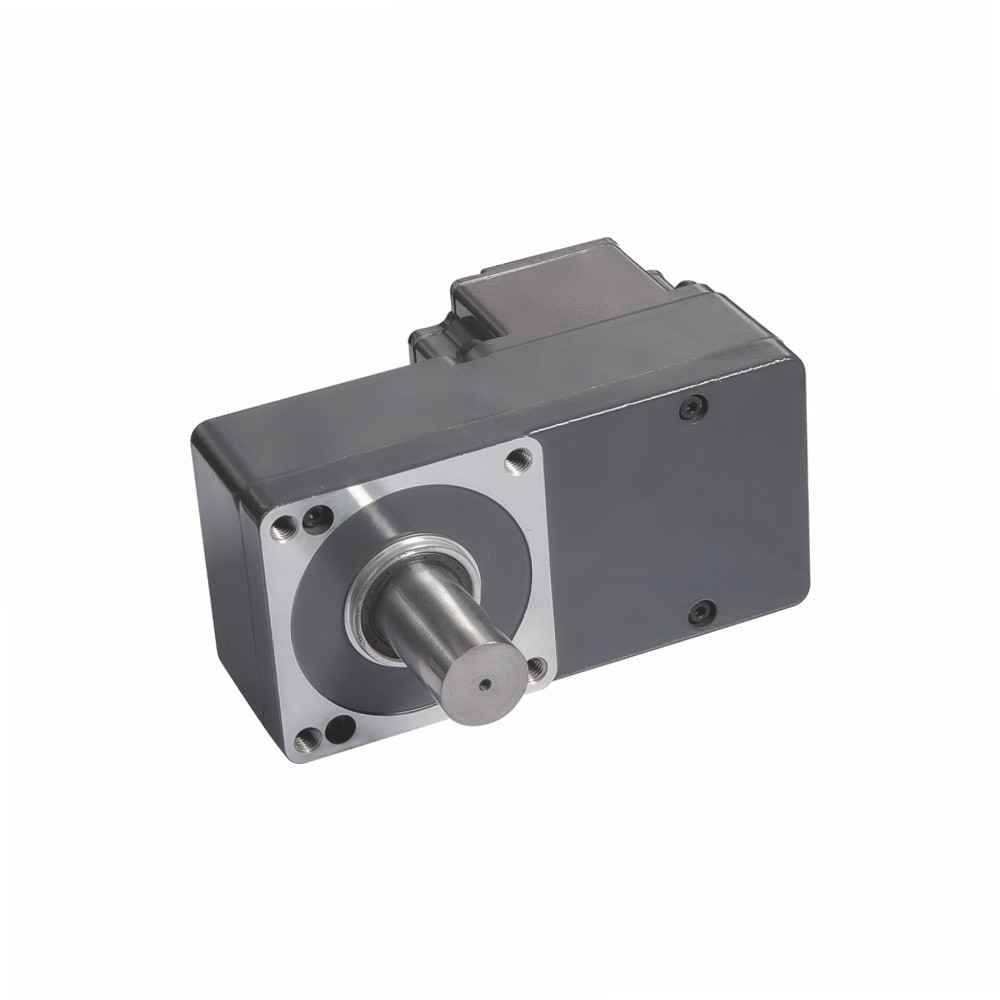

DC RIGHT ANGLE GEAR MOTOR F45ZY-22.85JW SPECS AND FEATURE:Voltage 24V DCNo-Load Current 1.2A Max.No-Load Speed after Gearbox 143RPM ( Motor 5600rpm )Stall Torque after Gearbox 21N.m ( Motor  0.53N.m )No-Load Noise 46dB Max. at Distance 30cm TestingGear Ratio 39/1 Weight 775g

DC PLANETARY GEARED MOTOR 52JX300K/52ZY125H SPECS AND FEATURE: Voltage 24V DCNo-Load Current <0.8ANo-Load Speed 62RPMRated Speed 50RPMRated Torque 10.0N.m Min.Gear Ratio 65/1Magnetic Encoder 5V DC, 2 Channel, 8pprVoltage 24V DC  No-Load Current <0.8A  No-Load Speed 54RPM  Rated Speed 43RPM  Rated Torque 10.0N.m Min.  Gear Ratio 76/1Magnetic Encoder 5V DC, 2 Channel, 2ppr

DC PLANETARY GEARMOTOR 82JXZ/80ZY SPECS & FEATURE:Voltage 24V DC or 12V DCRated Speed 2~10RPMRated Torque 180N.m for intermittent running, 120N.m for continuous runningWith/Without Encoder or BrakeIP Class IP54, IP55, IP65 or IP68

DC PLANETARY GEARMOTOR 82JX1200K/90ZY SPECS & FEATURE·  90mm OD DC Brushed Motor ·  82mm OD Planetary Gearhead·  Voltage 24V DC·  Rated Speed 2700RPM·  Rated Current 20.6A·  Gear Ratio 90 : 1·  Rated Speed 30RPM·  Rated Torque 84N.m·  High Temp. & High Humidity Use· Voltage 90V DC· Rated Speed 4200RPM· Rated Current 5.4A· Gear Ratio 14 : 1· Rated Speed 300RPM· Rated Torque 9.46N.m· High Temp. & High Humidity Use

DC PLANETARY GEARMOTOR 56JX300K/71ZY110 SPECS & FEATURE·  71mm OD DC Brushed Motor ·  56mm OD Planetary Gearhead·  Voltage 12 ~ 230V DC·  Gear Ratio 3.6 ~ 326 : 1·  Rated Speed 3 ~ 900RPM ·  Power up to 100W

High IP Class DC Motors & Gear MotorsMotor OD: 45mm, 63mm, 73mm, 80mm, 90mm, 100mm, 110mmGear Motor Rated Torque up to 600N.mIP44, IP54, IP55, IP65 or IP68Typical Application: Used for Water, Outdoors, Auto etc.Fox example: Pool Cover Motor, Solar Tracker Motor, Truck & Car Accessories.

DC PLANETARY GEAR MOTOR 80ZY125-1231CD/110JX646G3072 TYPICAL SPECS.:· Voltage 12V DC· No-Load Current 2A· Max Load Current 18A· No-Load Output Speed 4.8RPM· Rated Output Speed 3.8RPM· Rated Output Torque 200N.m for Continuous Running· Rated Output Torque 300N.m for Intermittent Running· Gear Ratio 426/1· With Encoder & Brake

 DC PLANETARY GEAR MOTOR 96ZY-22020/120JX426G30 TYPICAL SPECS.:· Voltage 220V DC· Motor Rated Speed 1500RPM· Motor Rated Torque 1.5N.m· Rated Output Speed 3.5RPM· Rated Torque 460N.m for Continuous Running ( 600N.m for Intermittent Running )· Gear Ratio 426/1

Description:Applications: Food Processor, Juicer, BlenderOutlinesRemark: We can produce according to customers requirement.SpecificationsVOLT.(V)FREQ.(Hz)NO-LOADLOADI.P.(W)O.P (W)EFF.(%)SPEED(RPM±10%)CURRENT(A)POWER(W)SPEED(RPM±10%)TORQUE(N.m)CURRENT(A)22050/60170000.56012258000.3151.7535618752.512760175001.11213966610.3664.46501255.350.9

Applications：window shade of air-conditioner, rotary lights, electric advertisement and motion pictures, etc. Rated VoltageAC24VAC110VAC220VRated Frequency50Hz/60HzInput Power≤4WInput Current<0.18A<0.035A<0.02AInsulation GradeETemperature Rise≤45KNoise<40dBInsulance500VDC ≥100MΩDielectric Strength AC1500V 50Hz/1minLeak Current<0.25mARotation DirectionCW,CCW,CW/CCWFixableOutput Axis Rev (r/min)12.53.55101520306080Output Torque (kgf.cm)2010752.521.81.30.80.5
