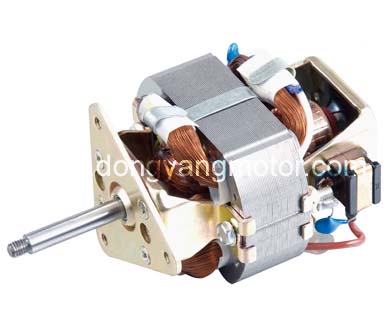

DYD-HC68-40

Description: Applications: Food Processor, Juicer, BlenderOutlinesRemark: We can produce according to customers requirement.SpecificationsVolts.(V)Freq.(Hz)NO-LOADLOADI.P.(W)O.P. (W)EFF.(%)SPEED(rpm±10%)CURRENT (A)POWER(W)SPEED(rpm±10%)TORQUE(N.m)CURRENT(A)22050/60178000.55311966750.2301.715329.6167.450.711060186001.051123.565600.2303.42325162.550

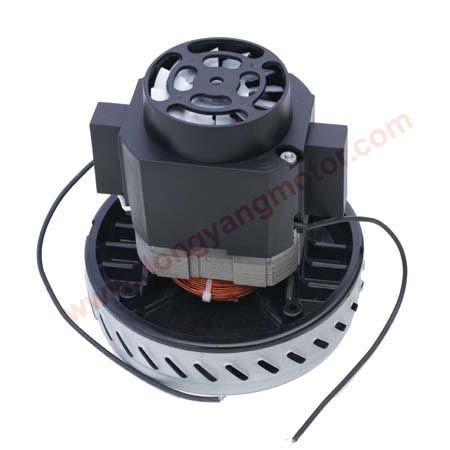

Vacuum Cleaner Motor Type A

Vacuum Cleaner Motor Specifications: PARAMETERS/MODELS DYD1200-A DYD1400-A TOLERANCE VALUE RATED VOLTAGE(V) 110/220/230/240 / RATED FREQUENCY(HZ) 50/60 / RATED INPUT POWER(W) 1200 1400 +10% -5% MAX VACUUM DEGREE(KPA) 25 26.5 -5% MAX AIR FLOW(M3/MIN) 3.5 3.6 -8% TEMPERATURE RISE(K) ≤75 ≤75 / NOISE(DB) ≤106 ≤108 / SPARK <2 <2 / CLASS OF INSULATION E E / MAX EFFICIENCY 35% 35% -10% Vacuum Cleaner Motor Dimensions:

DYD-HC68-30

Description: Applications: Food Processor, Juicer, BlenderOutlinesRemark: We can produce according to customers requirement.Specifications Volts (V)Freq. (Hz)NO-LOADLOADI.P.(W)O.P. (W)EFF.(%)SPEED (rpm±10%)CURRENT(A)POWER(W)SPEED (rpm±10%)TORQUE (N.m)CURRENT (A)22050/60193000.357867200.21.215256.2135.452.811060198000.738066500.22.75280138.649.4

Vacuum Cleaner Motor type H

Vacuum Cleaner Motor Specifications: PARAMETERS/MODELS DYD1200-H DYD1400-H TOLERANCE VALUE RATED VOLTAGE(V) 220/230/240 / RATED FREQUENCY(HZ) 50/60 / RATED INPUT POWER(W) 1200 1400 +10% -5% RATED SPEED (R/MIN) 31000 31600 / MAX VACUUM DEGREE(KPA) 26.5 27 -5% MAX AIR FLOW(M3/MIN) 3.00 3.20 -8% TEMPERATURE RISE(K) ≤92 ≤95 / NOISE(DB) ≤93 ≤95 / SPARK <2 <2 / CLASS OF INSULATION E E / MAX EFFICIENCY 37% 39% -10% Vacuum Cleaner Motor Dimensions:

AC Motor 100 Series

AC Motor 100 Series (6IK140W, 6RK140W) Our standard AC induction gear motors and reversible gear motors includes 4, 6, 10, 15, 20, 25, 30, 40, 60, 90, 120, 140, 180 and 200 Watt motors which can be integrated with 3:1 through 180:1 ratio gear heads (22 different ratios). There are mainly four type: Fixed Speed Motors, Variable Speed Motors, Electromagnetic Brake Motors and Torque Motors. Most of them are directly interchangeable with those made by Oriental Motor, Panasonic Motor, SPG Motor and Bison Gears. These high quality/low cost motors with CE & UL approval shall be your one-stop source for your motion needs.

60~90W 60YN06 ~ 90YN90 Induction AC Brake Motor

                        Motor typeAC Brake MotorDiameter60 ~ 90mmBraking torque0.5N.m;1.0N.mPermissible load range5N.m~20.0N.m for S1 duty cycleFrequency50Hz/60HzNominal power6W;10W;15W;25W;40W;60W;90W; 120W

DYD-HC68-26

Description: Applications: Milk ShakerOutlinesRemark: We can produce according to customers requirement.SpecificationsVolts.(V)Freq.(Hz)NO-LOADLOADI.P.(W)O.P. (W)EFF. (%)SPEED(rpm±10%)CURRENT(A)POWER(W)SPEED (rpm±10%)TORQUE(N.m)CURRENT (A)22050/60200000.358068000.21.3227414251.811060198000.77967800.22.8277142.751.5

Vacuum Cleaner Motor Type PB

Vacuum Cleaner Motor Specifications: PARAMETERS/MODELS DYD1400-PB TOLERANCE VALUE RATED VOLTAGE(V) 220/230/240 / RATED FREQUENCY(HZ) 50/60 / RATED INPUT POWER(W) 1400 +10% -5% MAX VACUUM DEGREE(KPA) 26 -5% MAX AIR FLOW(M3/MIN) 3.0 -8% TEMPERATURE RISE(K) ≤90 / NOISE(DB) ≤106 / SPARK <2 / CLASS OF INSULATION E / MAX EFFICIENCY 36% -10% Vacuum Cleaner Motor Dimensions:

60W ~ 120W Single Phase AC Motor

Motor typeSingle-Phase AC MotorDiameter AC motor: 90mmOptional gearbox typePlanetary/Spur/Worm/Right Angle Current0.54A~1.55ANominal voltage115V;230VFrequency50Hz/60HzNominal speed1300rpmPermissible load range0.441N.m~0.661N.m for S1 duty cycleNominal power60W~120W

4W ~ 40W Single Phase AC Motor

Motor typeSingle-Phase AC MotorDiameter AC motor:60~90mmOptional gearbox typePlanetary/Spur/Worm/Right Angle Nominal voltage115V;230VFrequency50Hz/60HzNominal speed1200rpm;1250rpm;1300rpmPermissible load range32mN.m~294mN.m for S1 duty cycleNominal power4W~40W

DYD-HC68-22

Description: Applications: Food Processor, Juicer, Milk ShakerOutlinesRemark: We can produce according to customers requirement.SpecificationsVolts. (V)Freq. (Hz)NO-LOADLOADI.P.(W)O.P.(W)EFF.(%)SPEED (rpm±10%)CURRENT(A)POWER(W)SPEED (rpm±10%)TORQUE(N.m)CURRENT(A)22050/60198000.347466800.1451.035219.3100.545.8

Wet & Dry Vacuum Cleaner Motor type B-1

Wet & Dry Vacuum Cleaner Motor Specifications: PARAMETERS/MODELS DYD-GS1100-B-1 TOLERANCE VALUE RATED VOLTAGE(V) 220 / RATED FREQUENCY(HZ) 50/60 / RATED INPUT POWER(W) 1050~1210 / MAX VACUUM DEGREE(KPA) 18 / MAX AIR FLOW(M3/MIN) 3.6 / TEMPERATURE RISE(K) ≤55 / NOISE(DB) ≤107 / SPARK <2 / CLASS OF INSULATION E / MAX EFFICIENCY 32% / VE/MIN 1.1 / Wet & Dry Vacuum Cleaner Motor Dimensions:

  • «
