P/N 236575, 287298 RV In Wall Slide-Out Actuators Motor

① Characteristics










Slide-out Actuators Motor_1000.jpg


② Description

Typical application: RV, Recreational Vehicle, Electric Trailer, Caravan Mover

Cable Slide Motor ( Gear ratio 294:1 or 504:1 )
In Wall Motor
Slim Rack Motor (with a Brake )
With a right angle gearbox available upon request
Long & reliable life
CE, UL, RoHS & CCC
100% Exported



Typical technical specs.:


RV In-Wall Slide Out Motor, Part # 287298

Voltage 12V DC

No-load Speed 15.3rpm

No-load Current <1.3A

Rated Speed 12rpm

Gear Ratio 500:1

Encoder 10 Pole 5ppr



RV In Wall Slideout Motor, Part # 236575

Voltage 12V DC

No-load Speed 26rpm

No-load Current <1.3A

Rated Speed 22rpm

Gear Ratio 294:1

Encoder 10 Pole 5ppr

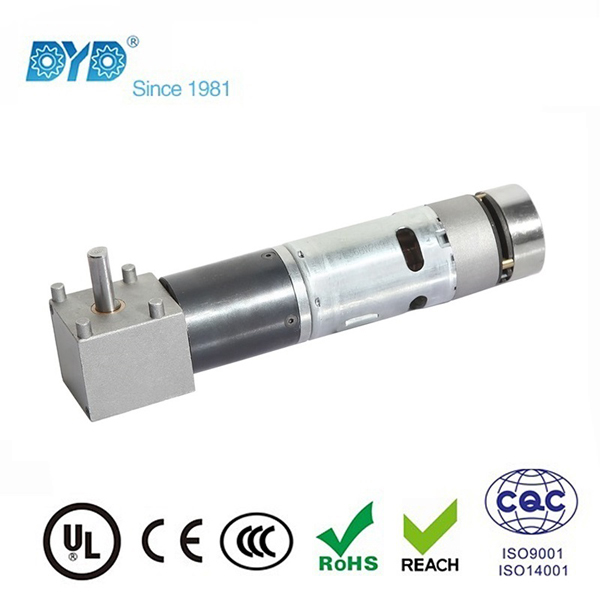

RV In Wall Slideout Right Angle Bevel Gear Motor

Motor technical data:

Voltage: 12V

No-load Current <1.2A

No-load speed 6800rpm

Rated Current 3.0A

Rated speed 5780rpm
Gear motor technical data:
Rtaed speed 16rpm

Rated torque 11N.m

Gear Ratio 364:1

CCW rotation when viewed from face mount
