386198 Replacement Motor for Electric Leveling Jack System - Left   386211 - Right

① Characteristics




② Description

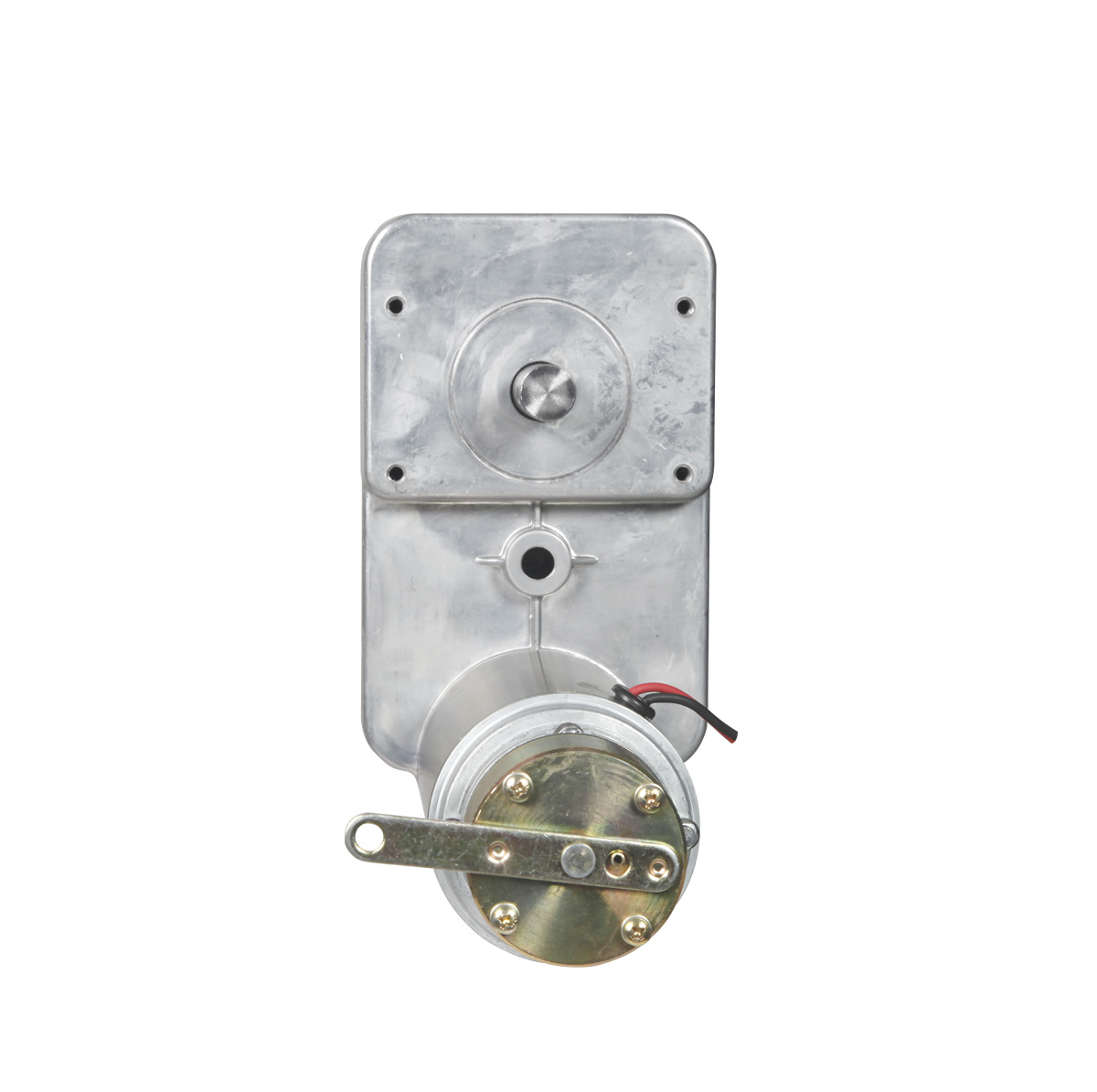

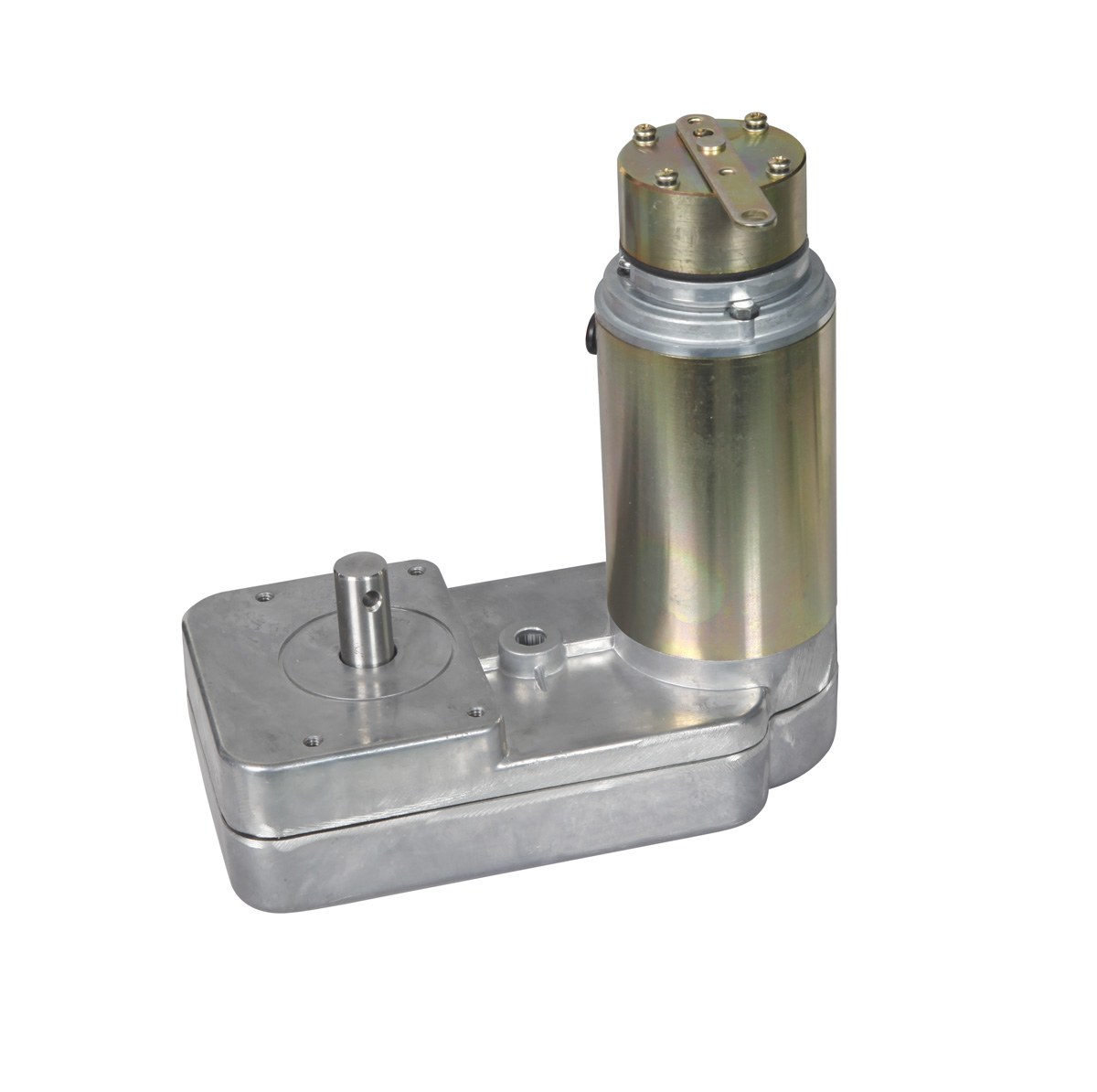

Replacement Motor for Electric Leveling Jack System - Left
Item # LC386198  ( DZ84ZYC03 )

Voltage 12V DC

400 in-lbs @ 28Amps and 35rpm

725 in-lbs @ 46Amps and 25rpm

Gear Ratio 69.74: 1


Replaces the left side electric leveling jack motor for your electric leveling system (383548, 383768, 383772, 383778, or 383796).

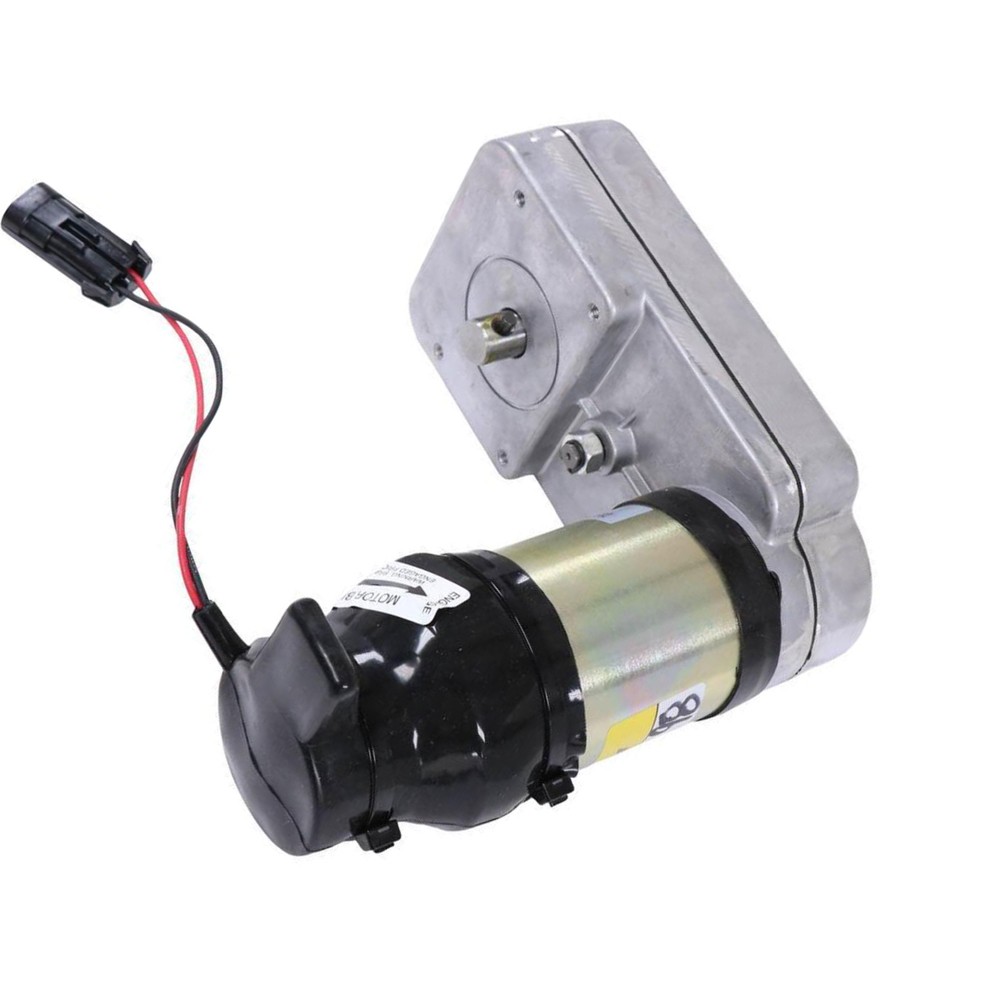

Replacement Motor for Electric Leveling Jack System - Right

Item # LC89CJ  ( DZ84ZYC03 )


386211 Replacement Passenger Side Right Electric Leveling Motor 386211 Right


Replaces the right-hand side electric leveling jack motor for your electric leveling system (383548, 383768, 383772, 383778, or 383796).



UL, CE, Reach and RoHS approval
Optional components: magnetic/optical encoder; brake; connector
Customized shaft dimensions and technical specifications are available upon requested

Typical Applications: High-Speed Power Stabilizer Jack, RV Leveling System, Trailer Leveling System
