900W Tarp Motor 80ZYTS-12/JW-7-Small Gear Motors & Electric Motors

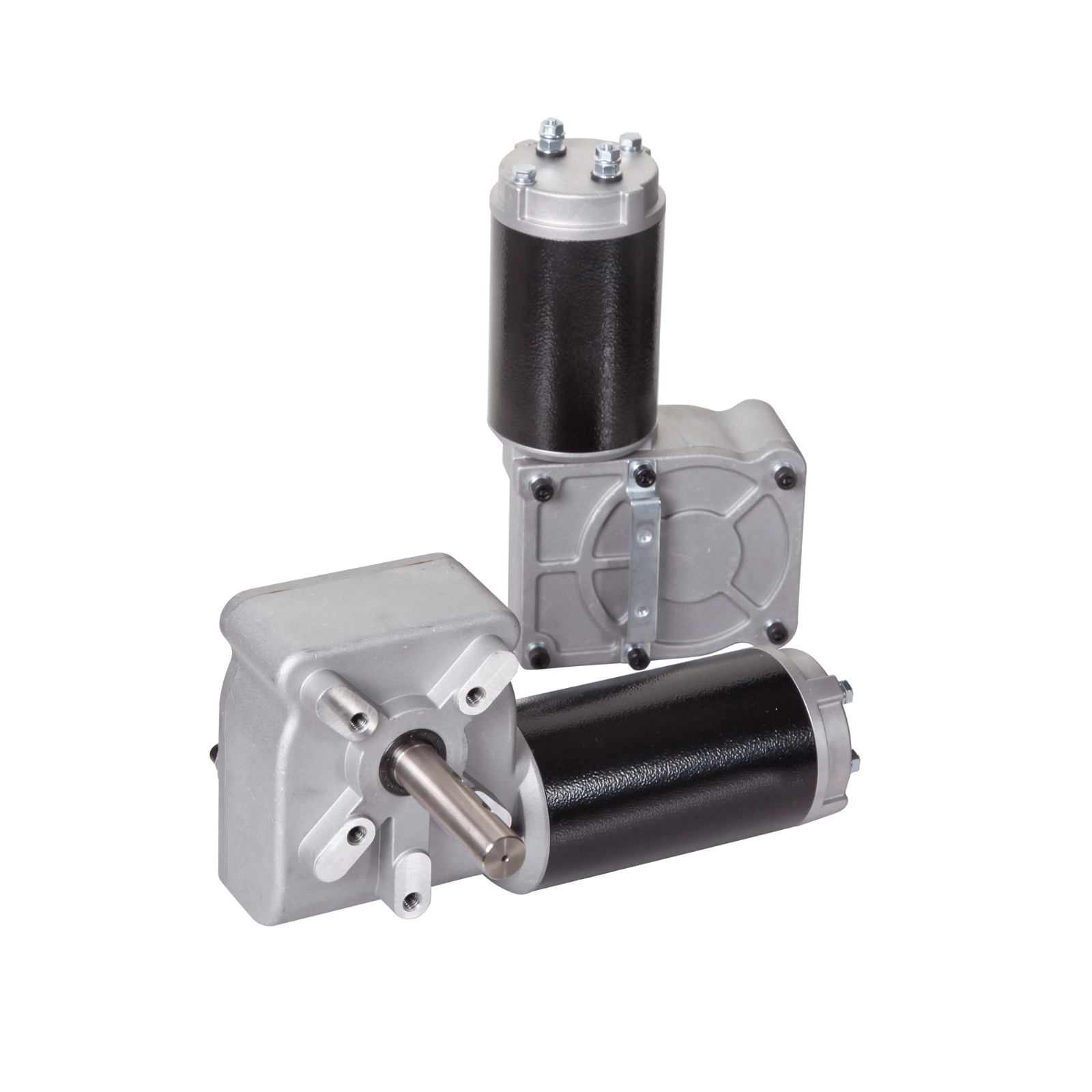

Tarp Gear Motor w/Chrome Cover

Dump Truck Tarp Motor / Canvas Engine ( Tipper Sheeting Motor, Dura-Torque Gearmotor ), fits most automatic tarps systems.

900W TARP MOTOR 80ZYT-12/JW-7 SPECS AND FEATURE (GEAR RATIO 90:1):

3 years warranty
Hi-torque, direct drive 12VDC (or 24VDC) motor (output torque 800 in-lbs)
90:1 gear ratio.
No-load Speed 55RPM / Rated Speed 40 RPM (+/-5RPM)
Power 600W (Motor body Length 116mm) or 900W (Motor body Length 141mm, Model 80ZYTS-12/JW-7 )
Epoxy sealed gearbox maintains lubrication.
2-1/2" x 3/4" extended output shaft fits wide range of tarp systems.
Sealed drive shaft and encased bearing prevents contamination.
Chrome/plastic cover and fasteners included.
Waterproof Level IP65
100% tested for quality control.
Ambient temperature of minus 40° available upon request
Optional 24V DC, Gear Ratio 60:1 or 45:1, 600W/0.8HP, 1200W/1.5HP, 2.0HP, 2.5HP
Replaces Aero Power Plus, Donovan 1704878, 1800716, 1801965*, 1802061, 1802066, Roll-Rite #1030/1031, US Tarp #13732, 13957, 15275, 15938, 15364, 13655; Pulltarps 517-0906/517-0909; SHUR-CO 1703823; SuperWinch 90-33319/90-33295; Tarps and Beyond 1000XT/2000XT; Buyers Products 5543965/5541065, TSI Apache, Tomahawk, Enforcer.
