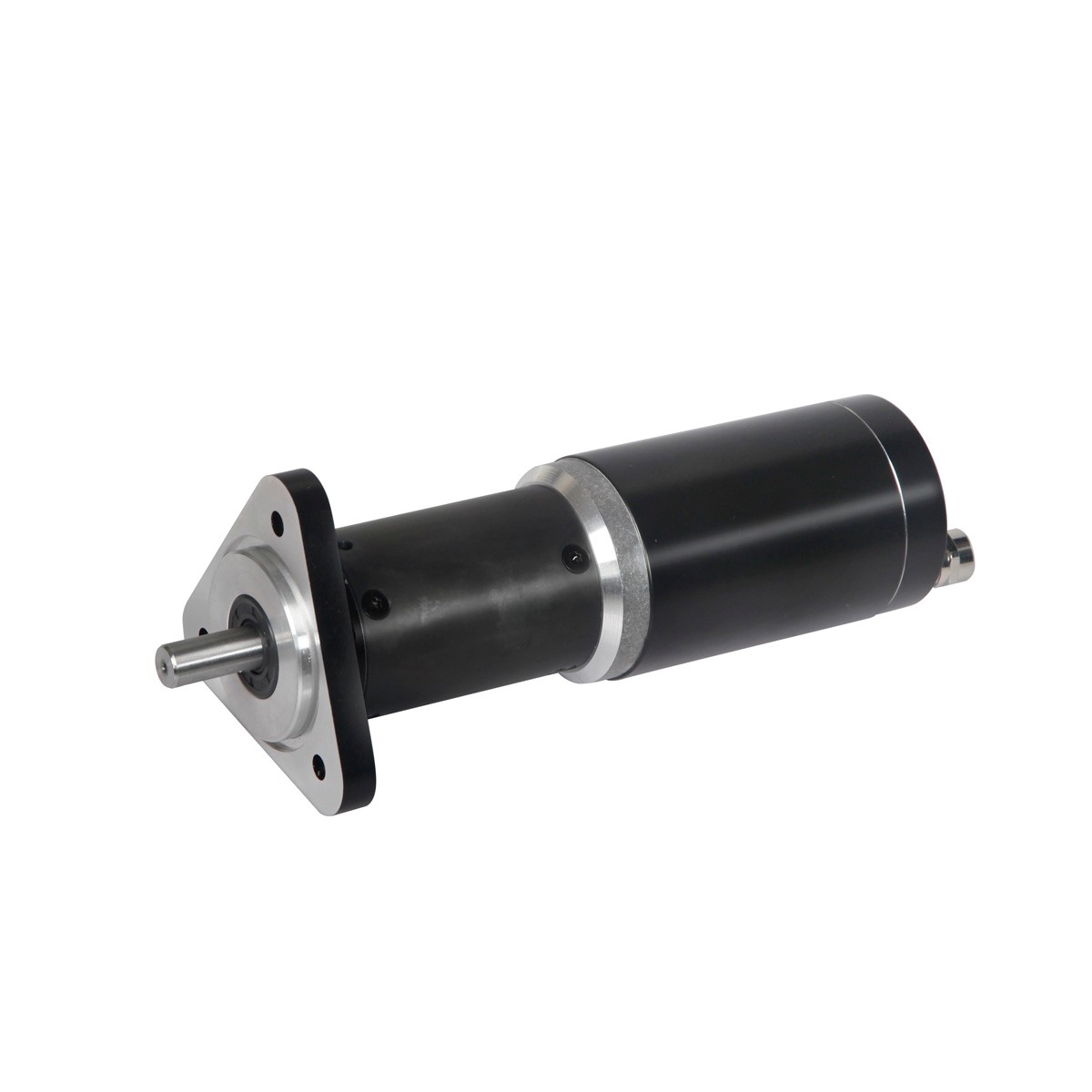

63ZY105-2420/52JXM176G IP66 DC Planetary Gear Motor for Solar Tracking System

① Characteristics

Low Speed IP66 DC Planetary Gear Motor for Solar Tracking System

General technical specs.:
Voltage: 24V DC or customized

Optional IP Rating: IP54, IP55, IP65, IP66 or customer's needs
Rated torque up to 35N.m for continuous running
Max. torque up to 150N.m
Certificates: ISO9001, CCC, CE, EAC, UKCA, RoHS; Reach

Customized shaft & flange dimensions and technical specifications are available upon requested.

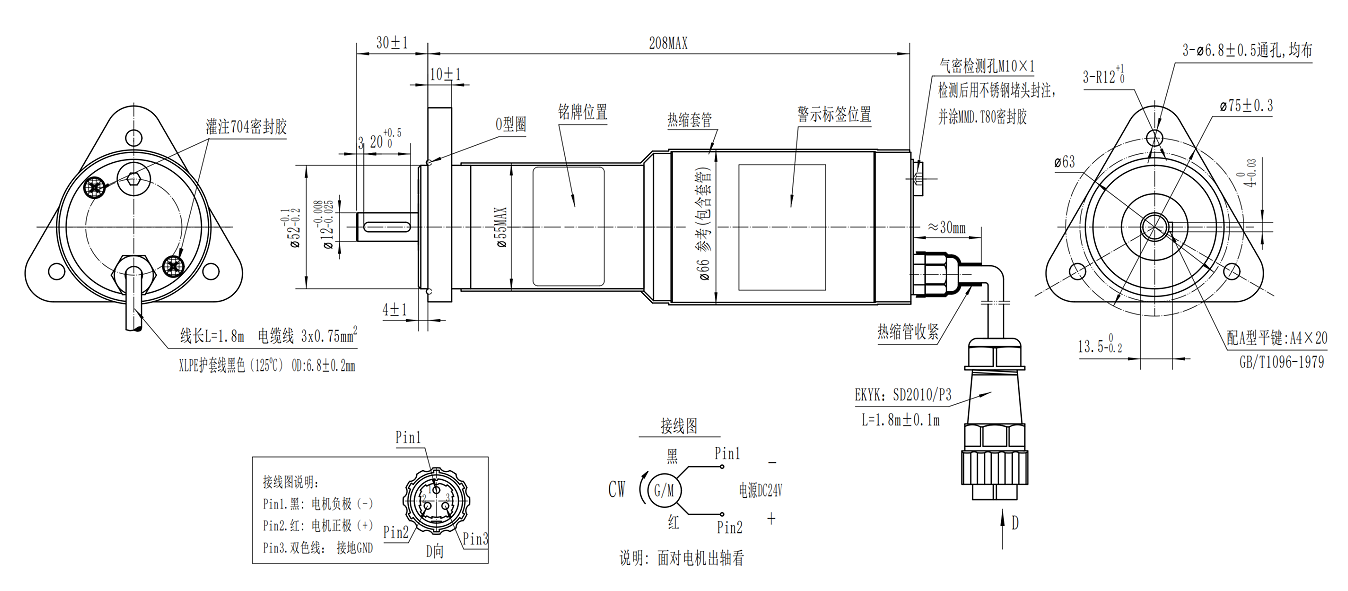

One Typical Model:63ZY105-2420/52JXM176G12J30
Gear Motor:
Voltage: 24V DC
Gear Ratio: 176:1
Rated Speed: 9rpm
Rated Torque: 25N.m
Rated Current: within 2.5A
IP Rating: IP66
Operation Temp.: -40℃ ~ 70℃


② Description



③ View the catalog

View the catalog
