① Characteristics

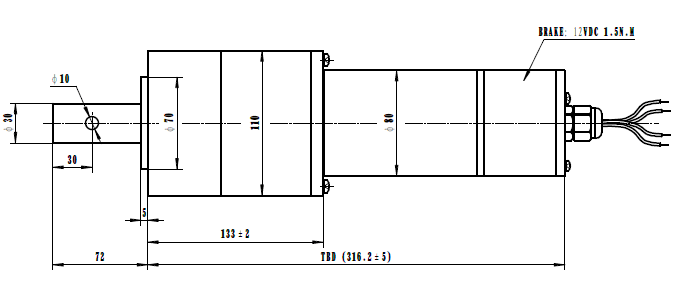

DC PLANETARY GEAR MOTOR 80ZY125-1231CD/110JX646G3072 TYPICAL SPECS.:

· Voltage 12V DC

· No-Load Current 2A

· Max Load Current 18A

· No-Load Output Speed 4.8RPM

· Rated Output Speed 3.8RPM

· Rated Output Torque 200N.m for Continuous Running

· Rated Output Torque 300N.m for Intermittent Running

· Gear Ratio 426/1

· With Encoder & Brake

② Description
