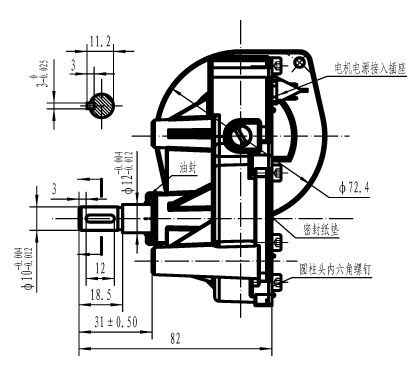

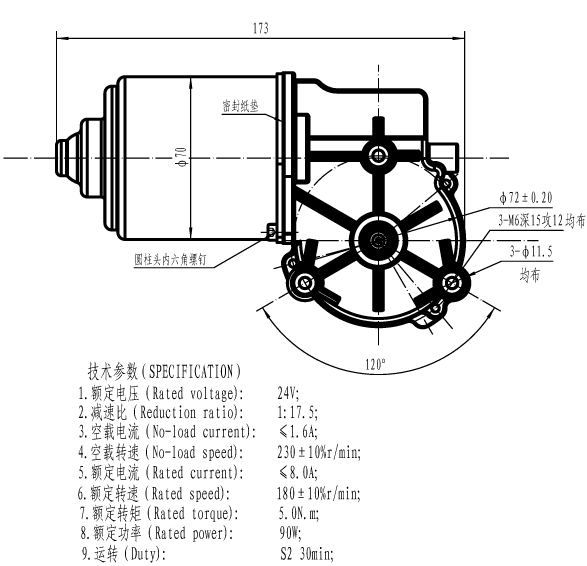

DC Right Angle Gear Motor 70ZY96/70JW technical specs.:

Rated voltage: 24V DC

Gear ratio: 1:17.5

No-load current: ≤1.6A

No-load speed: 230+/-10%r/min

Rated current: ≤8.0A

Rated speed: 180+/-10%r/min

Rated torque: 5.0N.m

Rated power: 90W

Duty cycle: S2 30min
